Box Target System
Electronic target system using shockwave detection to deliver precise, instant hit feedback for both subsonic and supersonic live‑fire training.
Key Features:
✔️ Shockwave-based scoring detects shots with high precision
✔️ Instant hit feedback for real-time performance insights
✔️ Compatible with subsonic and supersonic ammunition
✔️ Automatic scoring eliminates manual target checks
✔️ Stable shooter base ensures consistent training conditions
✔️ Rugged, weather-resistant design for durability
✔️ Built-in self-diagnostic capability for easy maintenance
✔️ Configurable horizontal or vertical lifting mechanism for target exposure
Box Target System

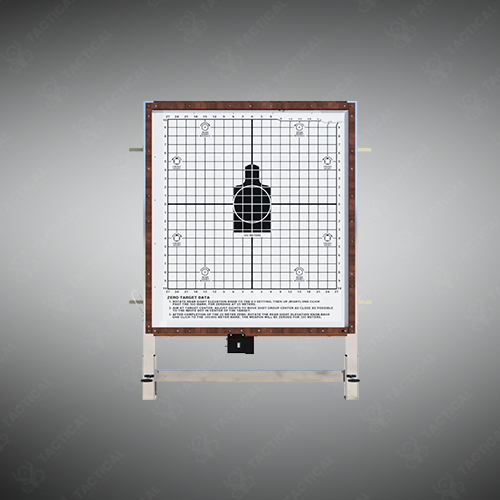

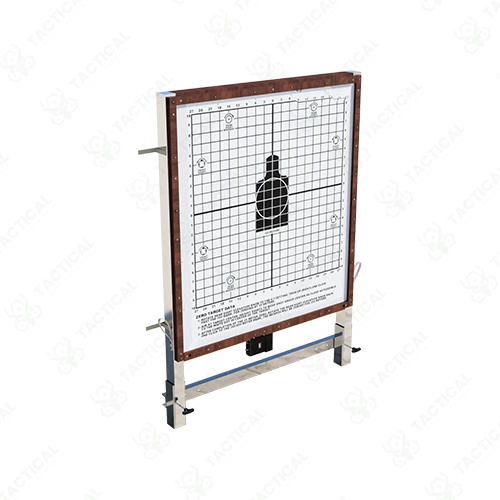

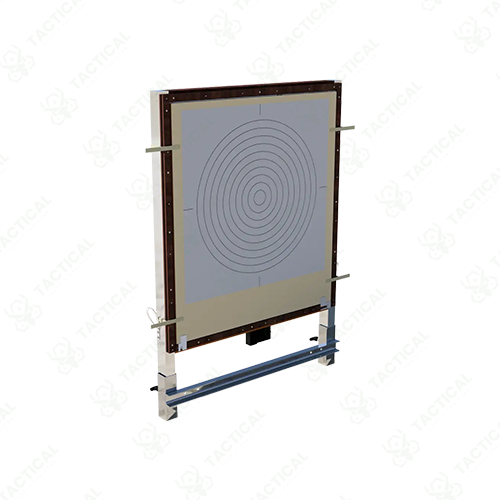

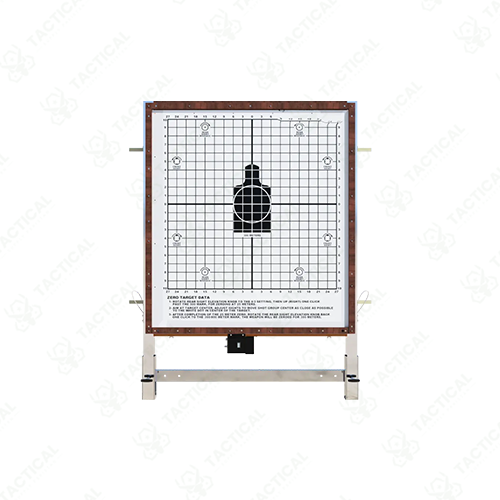

The Box Target System features a wooden frame construction measuring 1.5 meters in height and 1 meter in width, housing acoustic sensors within a weather-resistant enclosure. The sensing mechanism detects both subsonic and supersonic projectiles through shockwave analysis, operating effectively with ammunition velocities ranging from 250 to 1200 meters per second. The unit weighs approximately 25 kilograms and includes adjustable mounting brackets for installation on standard target stands. Optional lifting mechanisms provide vertical or horizontal movement capabilities, with electric motors rated at 220V AC. The system processes shot data within 100 milliseconds and transmits scoring information via wired or wireless connections.
The frame uses treated timber resistant to moisture and temperature fluctuations between -20°C and +50°C. Internal microphone arrays capture acoustic signatures from bullet passage, calculating impact coordinates relative to target center. The self-diagnostic function runs automated sensor checks during startup, identifying faults in individual detection channels. Scoring accuracy maintains ±2 centimeter precision at distances up to 300 meters. The fixed firing point configuration ensures consistent measurement conditions across training sessions. Power consumption averages 15 watts during active operation, with standby mode reducing draw to 3 watts.
Known-distance rifle ranges deploy the Box Target System for qualification shoots requiring precise score documentation. Military marksmanship programs use it to evaluate shooter performance without downrange interruptions. Law enforcement sniper teams incorporate the technology into long-range training protocols. Civilian shooting clubs benefit from automated scoring during competition events, eliminating manual target inspection delays.
Tactical Supply Pakistan supplies this reliable scoring solution with comprehensive setup assistance and operator training, supporting shooting facilities across defense and civilian sectors.
Can the system differentiate between multiple simultaneous shots?
Yes, the acoustic sensors process individual shockwaves separately, preventing data overlap even during rapid-fire or multiple-shooter scenarios.
