Alternating Gradient Magnetometer
High-precision magnetometer that measures magnetic moments and hysteresis properties using an alternating magnetic field gradient for sensitive material characterization.
Key Features:
✔️Alternating gradient field technique enables highly sensitive magnetic moment detection
✔️Separates magnetic force response from the sample for accurate magnetization measurement
✔️Rapid hysteresis loop acquisition allows efficient characterization of magnetic materials
✔️Detects weak magnetic signals that are difficult for conventional magnetometers
✔️Reduces measurement errors through distance-independent force detection
✔️Compatible with diamagnetic, paramagnetic, and ferromagnetic samples
✔️Suitable for research and industrial applications in material science and magnetics
✔️Compact design allows easy integration into laboratory setups
Alternating Gradient Magnetometer

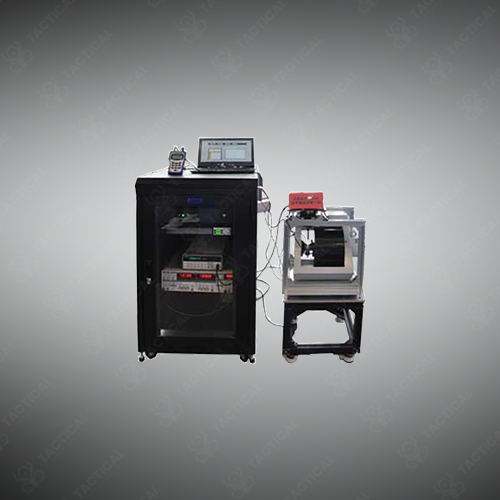

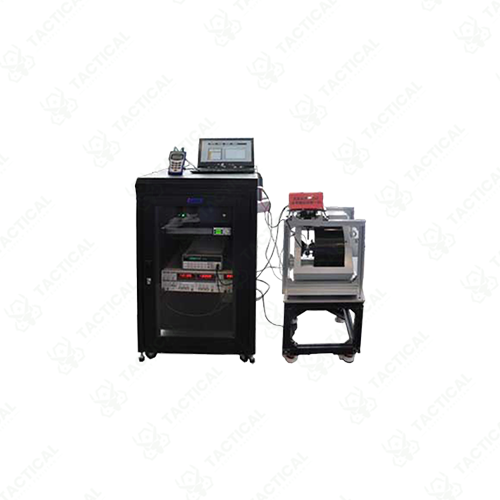

The Alternating Gradient Magnetometer (AGM) is a laboratory instrument designed for precise measurement of magnetic properties in various materials. It features an alternating magnetic field gradient applied to a sample mounted on a piezo-driven stage. The system includes a high-stability DC electromagnet for bias field control, gradient coils generating oscillating fields, and a sensitive displacement sensor that detects forces produced by the magnetic moment. The device supports samples ranging from thin films to small bulk specimens, with precise alignment mechanisms to ensure consistent field exposure. Its electronics include programmable current sources, high-resolution voltage readouts, and digital controllers for gradient amplitude, frequency, and field sweep settings.
The AGM is capable of detecting magnetic moments as low as 10⁻⁹ emu, allowing detailed analysis of subtle ferromagnetic, paramagnetic, or diamagnetic behaviors. The sample stage accommodates specimens up to 10 mm in size, and the system’s software allows real-time acquisition and graphical visualization of magnetization curves. Measurement parameters such as coercivity, remanence, and saturation magnetization can be rapidly recorded. The device’s compact design reduces mechanical vibrations and electromagnetic noise, ensuring reliable operation during both routine and advanced research experiments.
In practical applications, the Alternating Gradient Magnetometer is widely used in research laboratories and industrial quality control. It evaluates magnetic thin films, nanoparticles, coatings, and spintronic layers in semiconductor devices. Aerospace and defense laboratories use it to characterize magnetic materials for navigation systems, sensors, and high-performance magnetic components. The AGM is suitable for both static and dynamic experiments, providing accurate hysteresis loops and magnetic property assessments.
Researchers and engineers rely on Tactical Supply Pakistan to provide high-quality, calibrated instruments with dependable technical support and service.
Can the AGM measure magnetic properties of very small or thin samples?
Yes, the piezo-driven stage and high-sensitivity sensors allow accurate measurements on samples as small as a few millimeters without distortion or damage.
