AI-Powered Low-Altitude Detection System
AI-Powered Low-Altitude Detection System is a all-weather, multi-sensor solution for low-altitude aerial surveillance and UAV threat management.
Key Features:
✔️ Multi-sensor fusion: radar, RF, and electro-optical units
✔️ X-band AESA radar, 360° coverage, up to 15 km detection
✔️ RF detection & protocol decoding at 2.4/5.8 GHz
✔️ EO camera 65x zoom + 640×512 thermal imaging
✔️ AI UAV recognition >98%, tracks 6 targets simultaneously
✔️ Monitors up to 500 contacts in real time
✔️ Rugged, IP66, -35°C to +55°C operation
✔️ Low power (<1500W), integrates with command systems
AI-Powered Low-Altitude Detection System

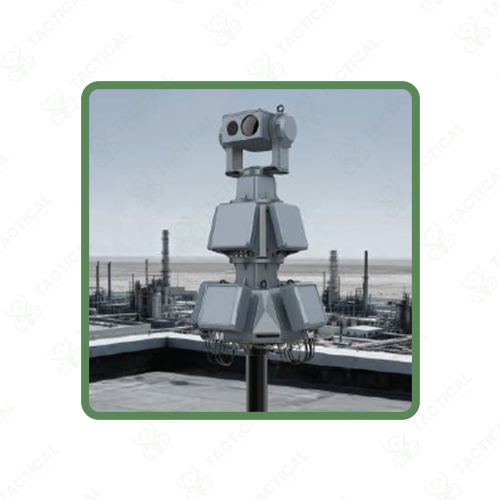

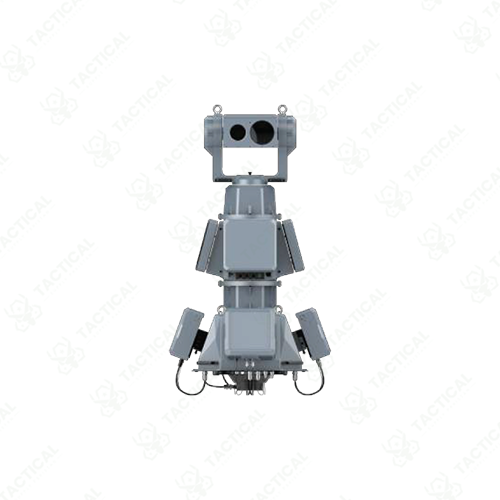

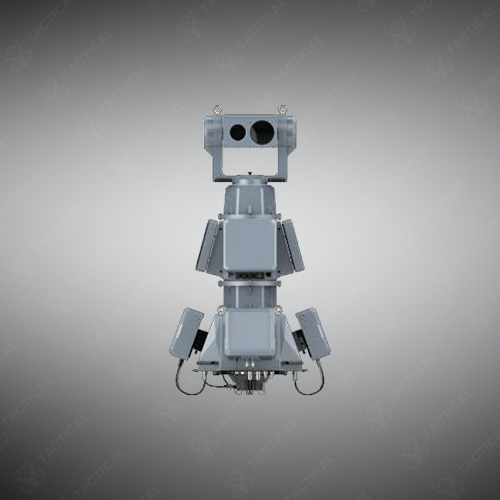

TSP’s AI-Powered Low-Altitude Detection System integrates radar, RF, and electro-optical sensors into a single all-weather tower. Its X-band AESA radar operates from 9.2 to 9.8 GHz with 360-degree coverage. Detection ranges span from 3.5 km for FPV drones to 15 km for airliners. The RF suite covers 0.4 to 6 GHz for spectrum and decodes protocols at 2.4/5.8 GHz. The electro-optical unit has a 65x zoom daylight camera and a 640×512 thermal imager. System power consumption remains under 1500W with an IP66 environmental rating.
Radar accuracy is 10 meters in distance and 0.5 degrees in angle. The RF direction-finding mechanism uses multi-baseline phase interferometry. It achieves spectrum detection at 5 km and protocol decoding at 3 km against standard commercial drones. The system’s AI recognition accuracy for UAVs exceeds 98 percent. It can track six designated targets while surveying up to 500 contacts. Operational temperature tolerance ranges from -35 to +55 degrees Celsius.
This AI-Powered Low-Altitude Detection System is deployed for permanent site protection at airports, borders, and energy facilities. It provides a fused, real-time air picture for automated threat alerts. This enables security teams to respond to unauthorized drone activity rapidly. The system’s sensor fusion allows for target verification across multiple domains. Its distributed AI architecture supports seamless integration with broader countermeasure and command systems.
For clients requiring definitive low-altitude surveillance, Tactical Supply Pakistan delivers this validated, high-performance detection solution.
What is the system’s effective range against a small commercial quadcopter?
It detects and classifies standard quadcopters at a range between five and seven kilometers.
