X-Ray Fast Truck/Container Scanning System
Fixed portal X-ray scanning system for rapid, high-resolution inspection of trucks and containers, detecting contraband, weapons, and hidden threats without disrupting cargo flow.
Key Features:
✔️ Drive-through portal design for continuous vehicle scanning
✔️ Dual-energy LINAC X-rays up to 9 MeV for deep penetration
✔️ Detects cargo over 350mm steel equivalent
✔️ Vertical detector modules capture full vehicle profiles
✔️ Resolution below 2mm for precise threat detection
✔️ Material separation by atomic number (organic, metal, mixed)
✔️ Multi-image comparison and archival tools
✔️ Supports drive-through speeds up to 15 km/h
✔️ Operates in -25°C to +55°C environments
✔️ Ideal for customs, military, and high-security checkpoints
X-Ray Fast Truck/Container Scanning System

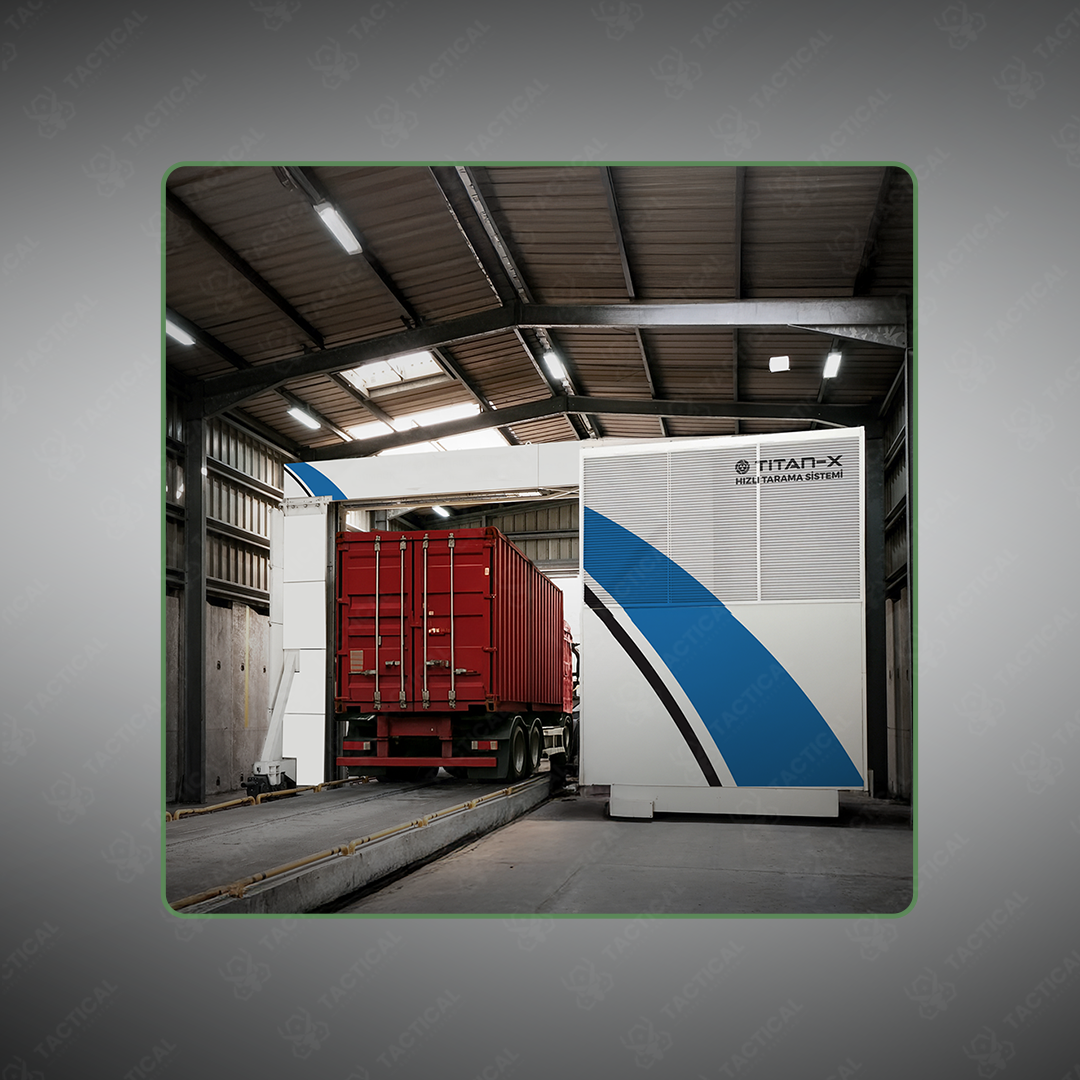

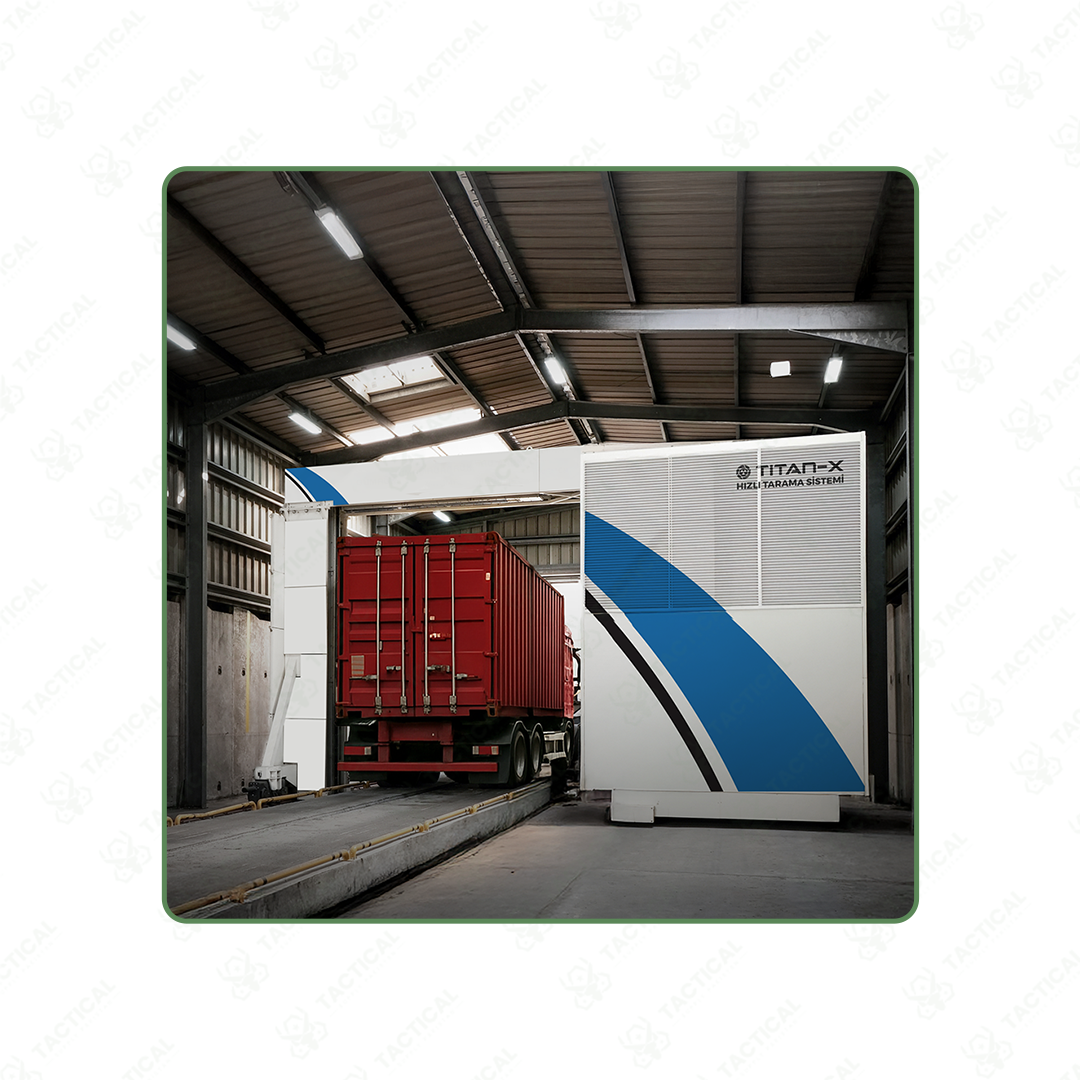

The X-Ray Fast Truck/Container Scanning System features a fixed portal structure that creates a scanning tunnel for continuous vehicle inspection. The system employs dual-energy LINAC technology with beam energy levels reaching up to 9 MeV, allowing penetration through cargo loads exceeding 350mm steel plate equivalent. Its detection array consists of linear detector modules positioned vertically to capture full vehicle profiles in a single pass. The portal frame measures approximately 5.5 meters in height and 4.5 meters in width, accommodating standard commercial trucks and intermodal containers without dimensional restrictions.
Transmission technology within the system generates X-ray beams that pass through cargo from multiple angles, producing images with spatial resolution below 2mm for detailed threat identification. The dual-energy function separates materials by atomic number, displaying organic compounds, metals, and mixed substances in distinct color codes on operator screens. Control software includes multi-image comparison tools that allow simultaneous viewing of current and archived scans, helping inspectors spot anomalies through pattern recognition. Temperature tolerance spans from -25°C to +55°C, supporting year-round outdoor deployment in variable climates.
Cargo terminals install the X-Ray Fast Truck/Container Scanning System at entry gates to screen inbound freight without interrupting logistics flow, processing vehicles at speeds up to 15 km/h during drive-through scans. Customs facilities use it to inspect sealed containers arriving from international routes, detecting smuggled goods, undeclared weapons, or irregular packaging arrangements. Military bases position the system at perimeter checkpoints to verify supply trucks, ensuring no unauthorized materials enter secure zones while maintaining operational tempo.
Tactical Supply Pakistan supplies this scanning system with comprehensive installation planning and post-deployment calibration services, guaranteeing optimal image quality for security operations. The company coordinates with facility engineers to integrate power systems and network infrastructure seamlessly.
Does the system require vehicles to stop during scanning?
No, the portal design allows continuous drive-through operation at controlled speeds, eliminating stoppage delays while maintaining image accuracy.
