Vehicle-Mounted Detection System
Vehicle-Mounted Detection System & counter-UAS surveillance solution engineered for continuous drone detection during movement, delivering wide-area coverage, rapid identification, and high-accuracy geolocation for tactical and security operations.
Key Features:
✔️ Hemispherical Coverage: 3 km detection radius with up to 500 m altitude monitoring
✔️ Mobile Vehicle Integration: Designed for continuous operation while on the move
✔️ Wide Spectrum Detection: Monitors 0.4–6 GHz across key UAV control bands
✔️ Decodes 2.4 GHz and 5.8 GHz UAV communication protocols
✔️ Detects DJI (RID-enabled), Autel, Parrot, analog-video, and other UAVs
✔️ High-Capacity Tracking: Simultaneous detection of 30+ drones
✔️ Rapid Data Refresh: Situational updates in under 3 seconds
✔️ High Geolocation Accuracy: Drone positioning precision within 10 m
✔️ Rugged Environmental Design: IP66-rated, operable from -30°C to +70°C
✔️ Compact & Deployable: Vehicle-mounted form factor (28.5 kg) for tactical flexibility
Vehicle-Mounted Detection System

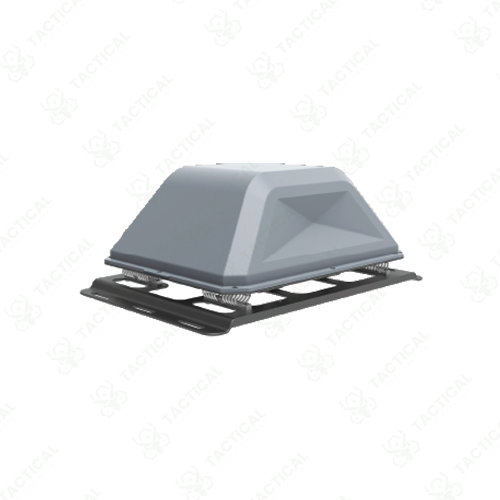

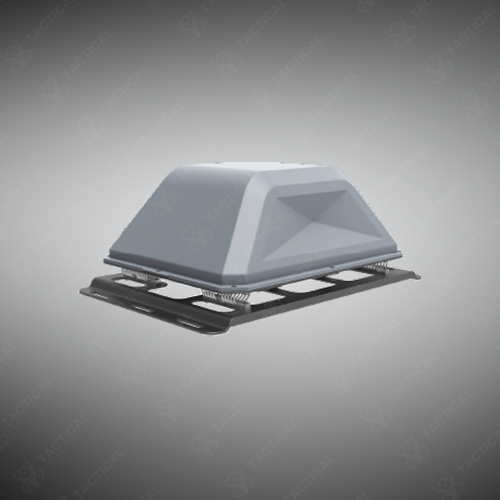

The Vehicle-Mounted Detection System offers hemispherical coverage across a 3 km radius with 500-meter altitude detection capability. The unit weighs 28.5kg and measures 780×472×280mm in dimensions. Power supply operates on AC 220V with an IP66 environmental protection rating. Operating temperature range spans -30°C to +70°C, while storage temperature tolerance extends from -40°C to +70°C. Spectrum detection covers 0.4–6 GHz across primary monitored channels, including 433 MHz, 868 MHz, 915 MHz, 1.2 GHz, 1.4 GHz, 2.4 GHz, 5.2 GHz, and 5.8 GHz bands.
Protocol decoding range reaches 3 km for DJI Mavic 3 SRKC models under ideal line-of-sight conditions without strong interfering signals. Detection frequency bands include protocol decoding at 2.4 GHz and 5.8 GHz. The system identifies all DJI models supporting encrypted RID signal decoding, plus drones using analog video signals and models from Autel, Parrot, and other manufacturers. Refresh rate processes data in under 3 seconds with a simultaneous detection capacity exceeding 30 drones. Geolocation accuracy maintains precision within 10 meters of actual coordinates.

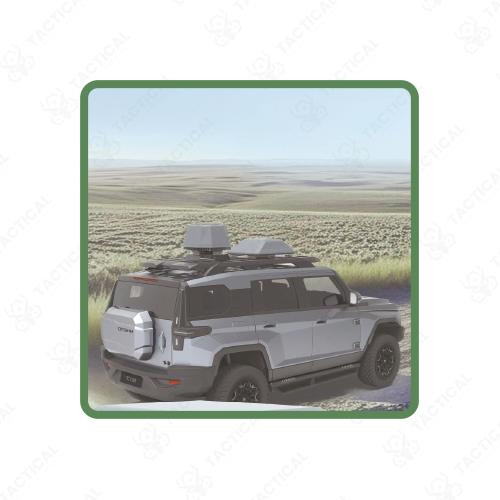

Mechanized infantry battalions integrate the Vehicle-Mounted Detection System into armored column formations for convoy protection against aerial reconnaissance threats. Military police units mount these systems on patrol vehicles for airspace enforcement around restricted zones. Navy shore patrol deploys them on mobile platforms protecting naval installations during heightened alert conditions. Air defense artillery uses the system for cueing weapon systems toward incoming drone threats. The vehicle integration allows continuous monitoring during tactical movement without static position vulnerability.
Tactical Supply Pakistan recognizes that mobile operations require detection equipment that matches tactical mobility requirements. The company provides vehicle-compatible systems that maintain operational effectiveness during movement and rapid repositioning scenarios.
Can the system operate while the vehicle is moving?
Yes, the system maintains detection capability during vehicle movement. Stabilization algorithms compensate for motion to ensure continuous monitoring without signal degradation.
