Underground Plastic Water Pipes Locator

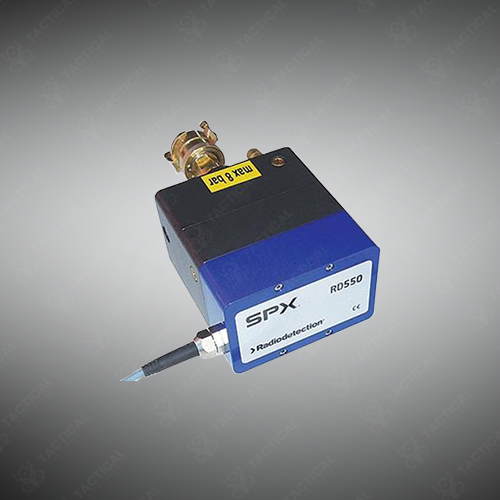

RD550 Underground Plastic Water Pipes Locater – Pulse wave generator for accurately tracing underground water pipes using a ground microphone.
Key Features:
✔️ Generates pulse waves to trace both plastic and metallic water pipes
✔️ Works with ground microphones for precise pipe detection
✔️ Effective for pipe depths up to 2 meters (6.5 feet)
✔️ Capable of tracing pipe lengths up to 600 meters (650 yards)
✔️ Compatible with RD547 and RD545 for integrated leak detection systems
✔️ Creates pressure waves without the need for electrical signals inside the pipe
✔️ Lightweight, portable design for field-ready use
✔️ Ideal for municipal, industrial, and commercial water network maintenance
Underground Plastic Water Pipes Locator
The RD550 Underground Plastic Water Pipes Locator generates acoustic pressure waves through controlled valve cycling attached directly to pressurized pipeline infrastructure. The pulse wave mechanism opens and closes at programmed intervals creating distinctive noise signatures propagating along water-filled conduits up to 600 meters from the connection point. A ground microphone or geophone detects these pressure pulses at the surface enabling tracing of buried pipes at depths reaching 2 meters.
The device functions equally on metallic and non-metallic piping systems where electromagnetic location methods prove ineffective. Connection to hydrants, meter stops, or exposed pipe sections requires standard threaded fittings compatible with existing infrastructure. The acoustic energy travels through water columns regardless of pipe material composition including PVC, HDPE, and concrete. Battery operation supports extended tracing surveys without external power requirements. When paired with the RD547 or RD545 control units, operators systematically trace distribution network topology before leak detection activities commence.
Municipal water mapping crews deploy the RD550 Underground Plastic Water Pipes Locator establishing accurate as-built records for aging systems lacking reliable documentation. Military construction battalions utilize pulse wave tracing before excavation projects on installations where historical utility plans omit plastic service line routing. Naval base public works departments trace non-metallic water distribution serving pier facilities and fuel storage areas before infrastructure rehabilitation. Airforce civil engineering squadrons map underground hydrant systems feeding fire suppression networks across aircraft parking aprons and munitions storage zones.
Tactical Supply Pakistan supplies this pulse generator with compatible ground microphones and connection fittings for water utilities conducting plastic pipe location surveys.
How does pulse wave frequency affect tracing range?
Lower frequency valve cycling below 10 Hz produces stronger pressure pulses traveling farther along pipelines but reduces positional resolution. Higher frequencies above 20 Hz improve pinpoint accuracy but attenuate faster.
