UAV Pilot Positioning Solution Module

UAV Pilot Positioning Solution Module

The UAV Pilot Positioning Solution Module is a compact, high-precision radio detection system engineered for accurate triangulation of UAV controller signals. Designed with portability and performance in mind, this module weighs just 707.5g and operates with power consumption under 20W, making it ideal for UAV-mounted missions. It functions across the 2.4, 5.2, and 5.8 GHz spectrum bands, detecting targets like DJI Mavic, Air, Mini series, and Autel Evo models. With a directional detection angle accuracy of ≤3° (RMS), it identifies and localizes UAV pilot signals with exceptional consistency.

This radio detection module delivers reliable performance in real-world scenarios, offering up to 3km detection distance under clear visibility conditions. Capable of simultaneously identifying six or more targets, it boasts a success rate of 99%—even in dense signal environments. Housed in an IP65-rated shell, the system resists harsh environmental factors and functions steadily in temperatures ranging from -20°C to 50°C.

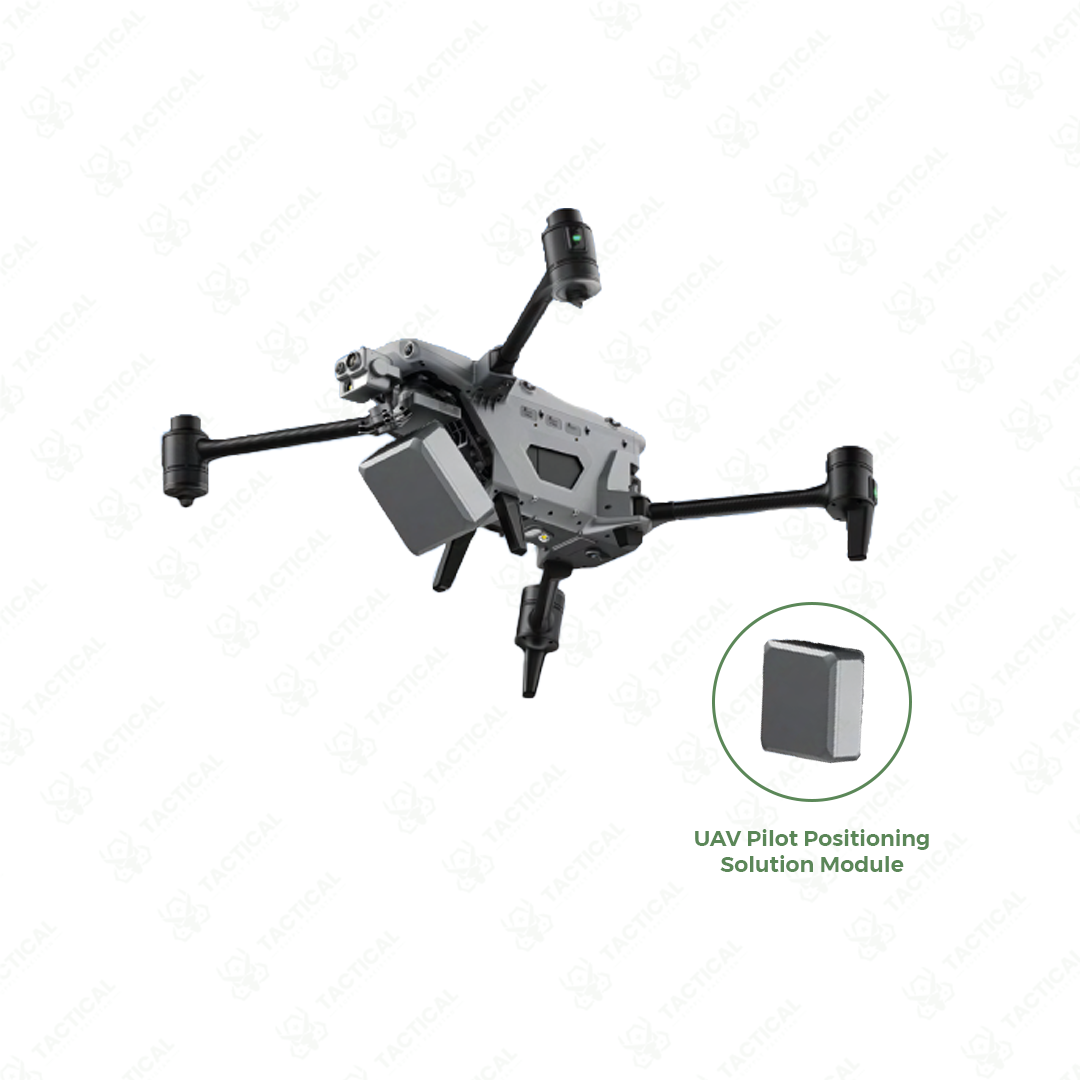

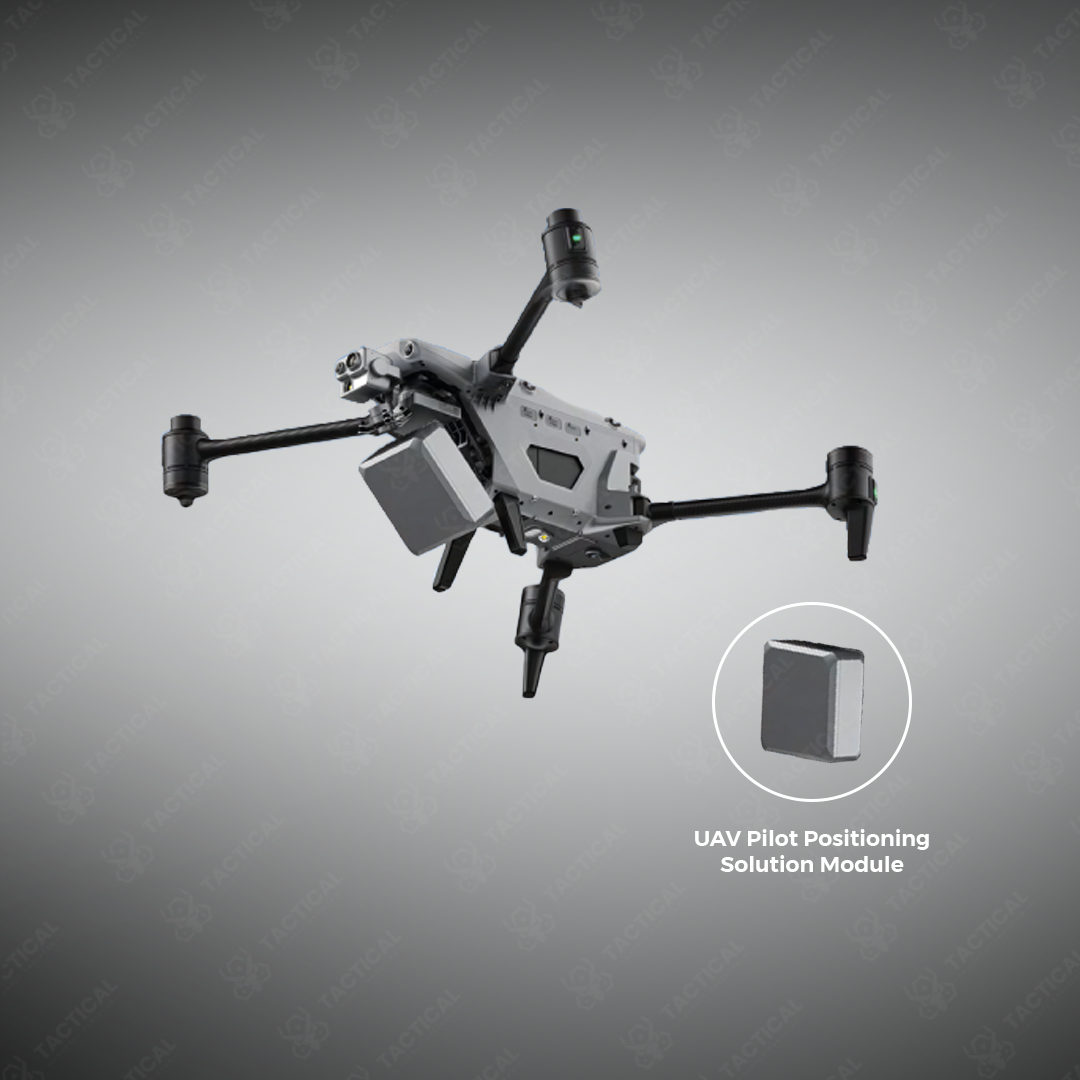

The UAV Pilot Positioning Solution Module is primarily used to detect and locate drone operators in non-broadcast signal scenarios where RID and DID protocols are unavailable. Once mounted on UAV platforms, it performs in-air sweeps to isolate signal origins. This enables law enforcement, defense teams, and security agencies to visually investigate suspicious signals using onboard AI-equipped gimbal cameras.

Backed by Tactical Supply Pakistan, this module is part of a broader aerial detection ecosystem that includes anti-interference UAVs and HD optical systems. This integration enhances situational awareness and improves pilot location accuracy without relying on GNSS for navigation.

Can the module detect interference sources as well as UAV controllers?
Yes. In addition to UAV pilot positioning, the module also identifies signal jamming sources, offering a dual-function capability for security and countermeasure support.
