UAV Neutralization System
UAV Neutralization System is a directed-energy counter-UAS solution designed to precisely detect, track, and disable low-altitude hostile drones in demanding operational environments.
Key Features:
✔️ Electromagnetic output disables small UAVs without kinetic effect
✔️ Extended Detection Range: Detects drones beyond 1.5 km in clear conditions
✔️ Effective Engagement Distance: Neutralization range up to 500 m
✔️ Radar-Guided Targeting: ±175° azimuth and ±60° pitch coverage
✔️ High-Speed Tracking: Rapid response with 30°/s angular velocity
✔️ All-Weather Protection: IP66-rated enclosure for outdoor deployment
✔️ Active Cooling System: Fan-based thermal control for continuous operation
✔️ Rapid Deployment: ~43 kg system for mobile and fixed installations
✔️ Flexible Power Supply: Supports battery and AC power operation
UAV Neutralization System

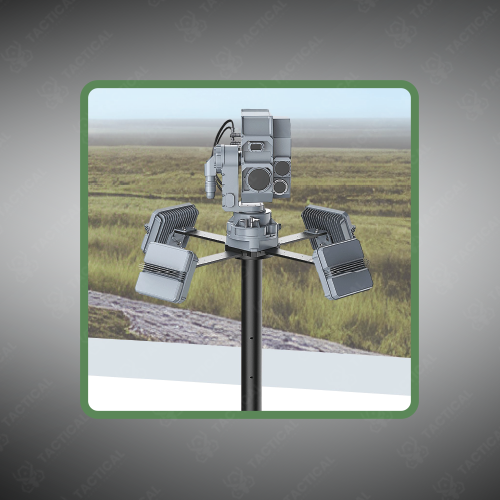

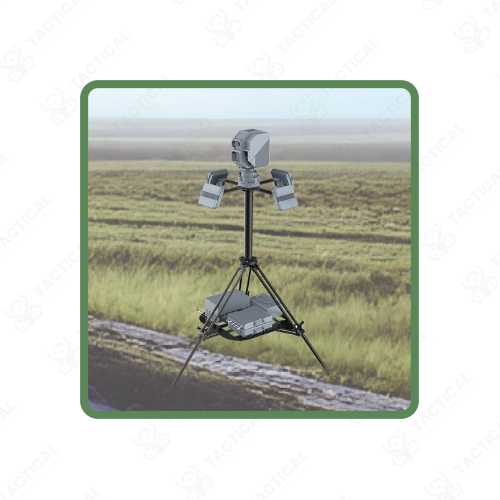

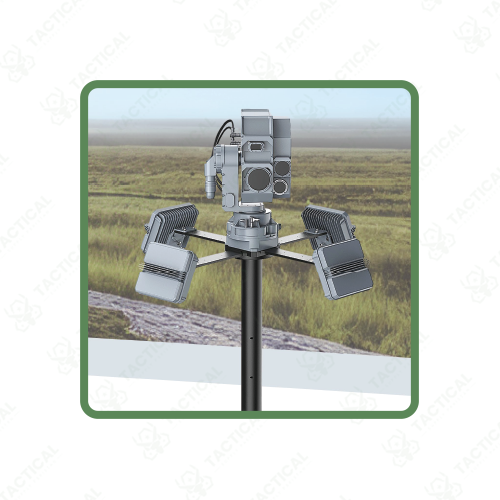

The UAV Neutralization System employs directed energy technology to disable small low-altitude drones through focused electromagnetic output. The system weighs approximately 43kg with dimensions of 330×370×470mm for the ATP unit and 330×254×172mm for the battery module. Power supply operates on Battery+ Power AC 12/5V configuration with a 390×210×130mm battery pack. The radar-guided aiming unit provides azimuth adjustment of +175° to -175° and pitch angle coverage of +60° to -60°. Maximum angular velocity reaches 30°/s with angular acceleration of 300°/s².
Detection capabilities extend beyond 1.5km at visibility conditions of 10km with RCS parameters of 0.2m². Tracking accuracy maintains RMAS precision throughout engagement cycles. The active cooling system uses fan-based thermal management to prevent overheating during continuous operation. IP rate of IP66 ensures dust-tight and water-resistant protection for outdoor deployment. The primary power unit achieves IP44 rating for moderate environmental resistance. Effective neutralization distance reaches 500m under standard atmospheric conditions.
Air defense units deploy the UAV Neutralization System at forward operating bases to counter reconnaissance drones probing defensive perimeters. Navy vessels integrate these systems into ship defense networks against swarm attacks during littoral operations. Airforce installations position them around aircraft shelters to protect high-value assets from kamikaze drone strikes. Border security forces use the system along frontier zones to intercept smuggling drones carrying illegal payloads. The rapid deployment capability allows mobile units to establish protective zones within minutes of arrival.
Tactical Supply Pakistan provides advanced counter-drone solutions that combine detection and engagement in single-platform architectures. The company sources systems with proven operational records in contested environments where precision engagement is critical.
What happens to neutralized drones after engagement?
Directed energy disrupts flight control systems causing controlled descent rather than explosive destruction. This minimizes debris scatter and allows forensic examination of disabled aircraft.
