SWISS CLASSIFY
The SWISS CLASSIFY is a multi-parameter traffic classification system that measures vehicle length, axle count, spacing, speed, and acoustic signatures to deliver precise 10-class vehicle categorization for permanent or mobile deployments.
Key Features:
✔️ Classifies vehicles into 10 categories using the SWISS10 standard
✔️ Measures length, axle quantity, axle arrangement, and axle spacing simultaneously
✔️ Speed measurement accurate up to >100 km/h within ±3%
✔️ Acoustic sensing adds sound-level factors for enhanced classification
✔️ Integrated GPS provides 2–10 m positional accuracy
✔️ Onboard storage for up to 950,000 traffic records
✔️ Robust IP55 housing with –40°C to +70°C operating range
✔️ 55Ah/12V battery delivers ~14 days autonomy; solar option extends runtime
✔️ Supports 2G/3G/4G LTE, Ethernet, RS-232, Bluetooth, and SIM connectivity
✔️ TZ5 BASt-certified for validated measurement performance
✔️ Mobile or permanent operation with 80–100 cm mounting height
✔️ Real-time data access via iOS/Android apps and customizable dashboards
SWISS CLASSIFY

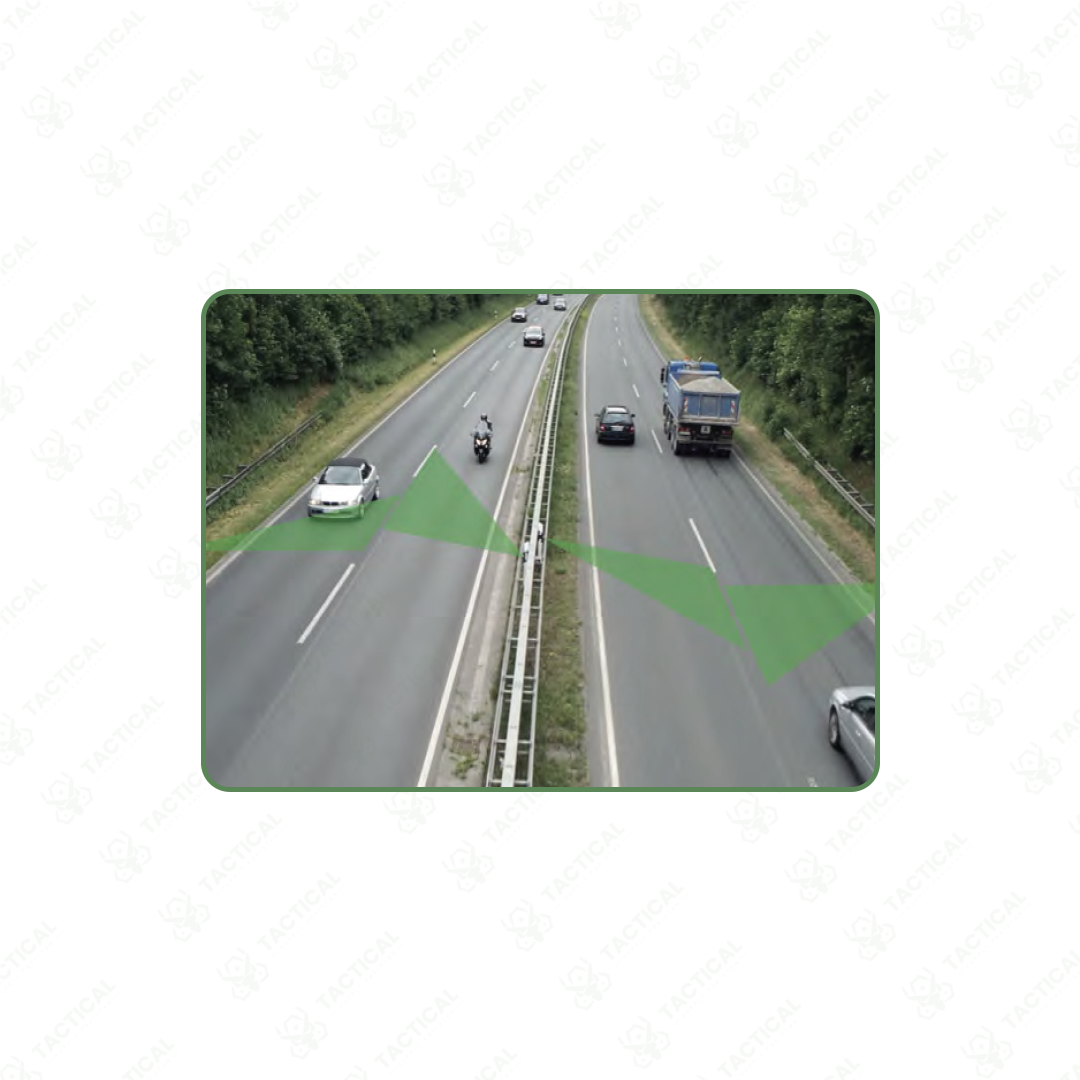

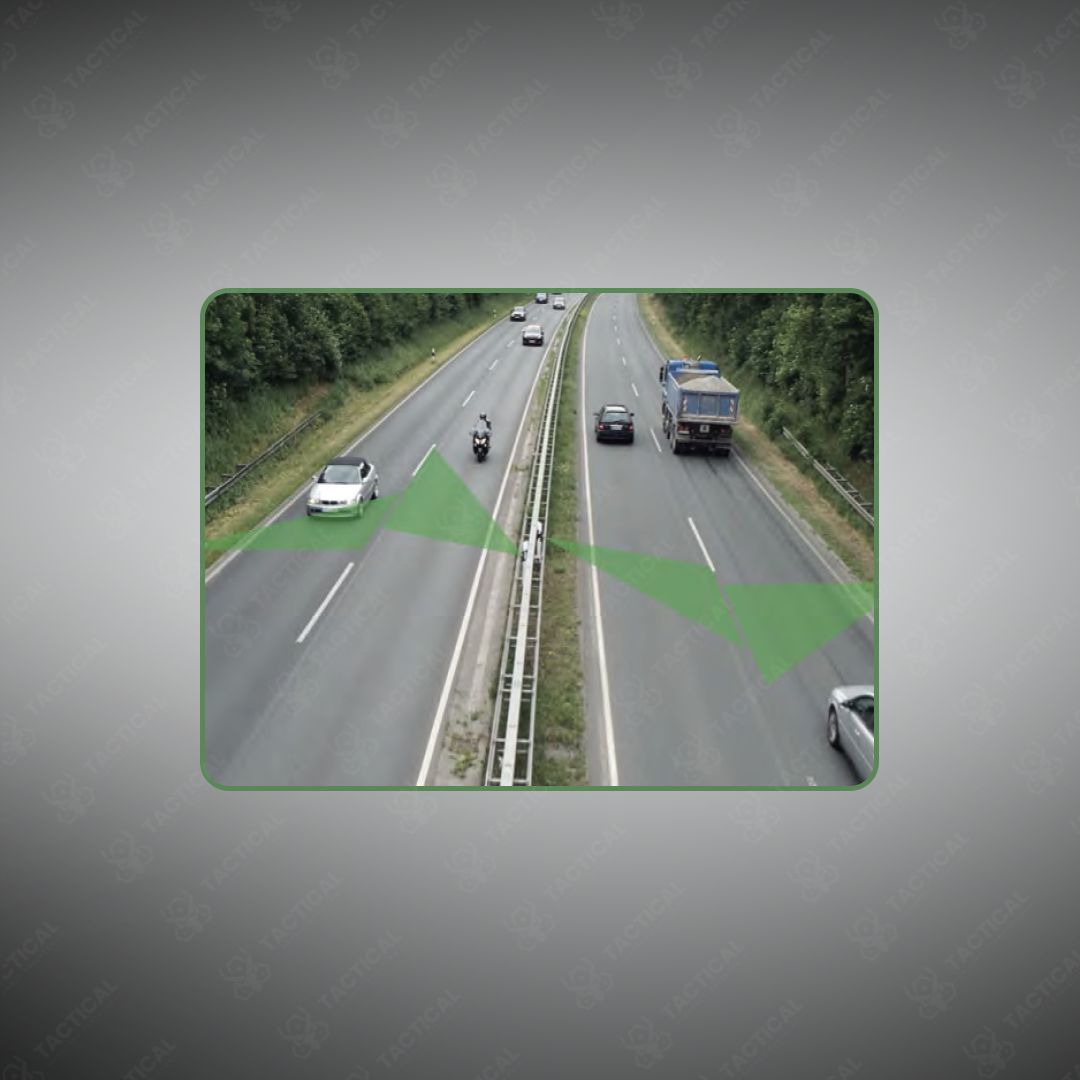

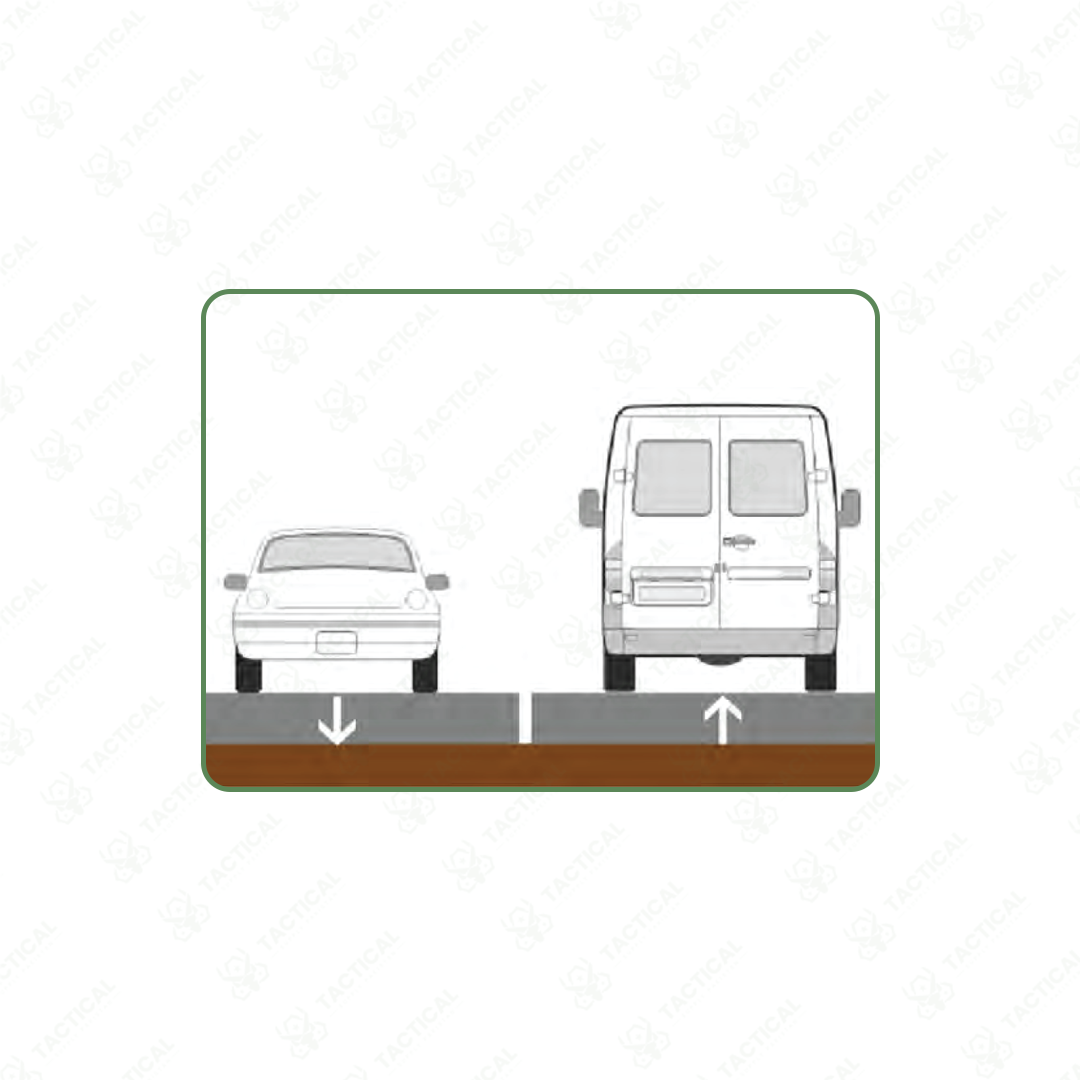

The SWISS CLASSIFY measures vehicle length, counts axles, and calculates spacing simultaneously. The system classifies vehicles into 10 object classes using SWISS10 standard. Detection relies on six characteristics: length, axle quantity, arrangement, spacing, engine position, and sound level. Dimensions measure 408.5×328.5×175mm weighing 6.61 kilograms. IP55 protection provides environmental resistance. Operating temperature ranges minus 40 to plus 70 degrees Celsius. Speed measurement accuracy exceeds 100 km/h within 3%. GPS accuracy achieves 2 to 10 meters. Device memory stores 950,000 records. Battery 55Ah/12V lasts 14 days. Solar panels enable extended autonomy. Mounting height from carriageway measures 80 to 100 centimeters at 90-degree angle.
The system integrates environmental sensors with standard detection. Communication includes 2G, 3G, and 4G LTE protocols. Ethernet and Bluetooth enable real-time transmission. The system operates permanent or mobile with solar options. TZ5 BASt certification validates accuracy. Sound pressure measurement captures acoustic data. Setup occurs via iOS and Android apps. Real-time traffic data streams to dashboards. Interfaces include RS-232, Bluetooth, Ethernet, and SIM slots.
Traffic engineers deploy the SWISS CLASSIFY for traffic surveys and flow optimization. Urban planners utilize axle classification for vehicle composition analysis. Road safety authorities implement the system for monitoring. Highway departments employ detection preventing congestion. Municipal authorities monitor vehicle classifications. Parking facilities track vehicle types. Toll operators integrate classification into revenue systems. Transportation planners assess infrastructure capacity.
Tactical Supply Pakistan manufactures advanced vehicle classification systems combining axle detection with environmental sensing for comprehensive traffic analysis and intelligent mobility management applications.
Can the SWISS CLASSIFY differentiate between heavy trucks and light commercial vehicles?
Yes, axle detection and spacing measurement enable precise differentiation. The system counts axle quantity and measures spacing patterns, allowing accurate classification of trucks, buses, and utility vehicles into distinct categories automatically.
