Stage 1 Turbine Vane Segment

Stage 1 Turbine Vane Segment

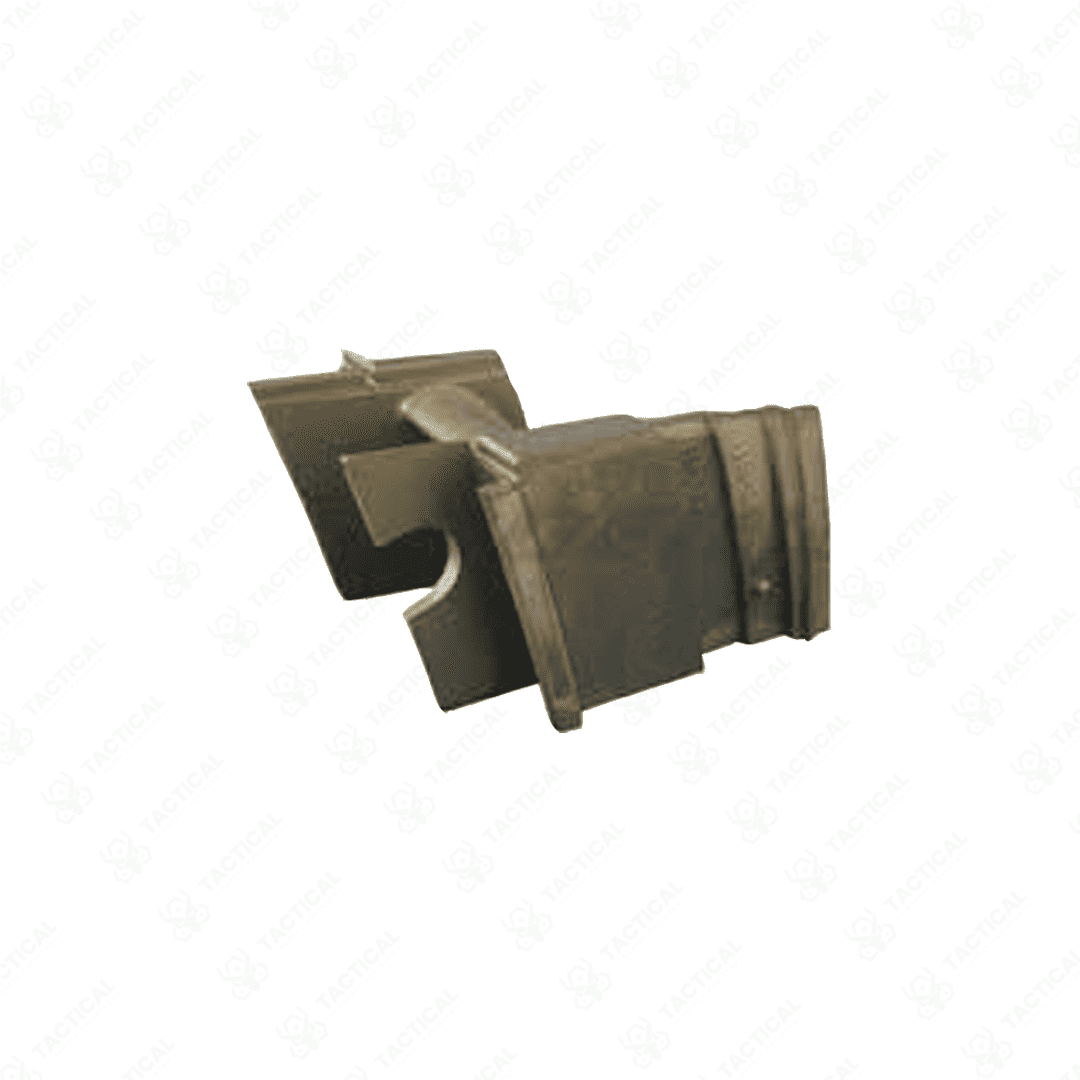

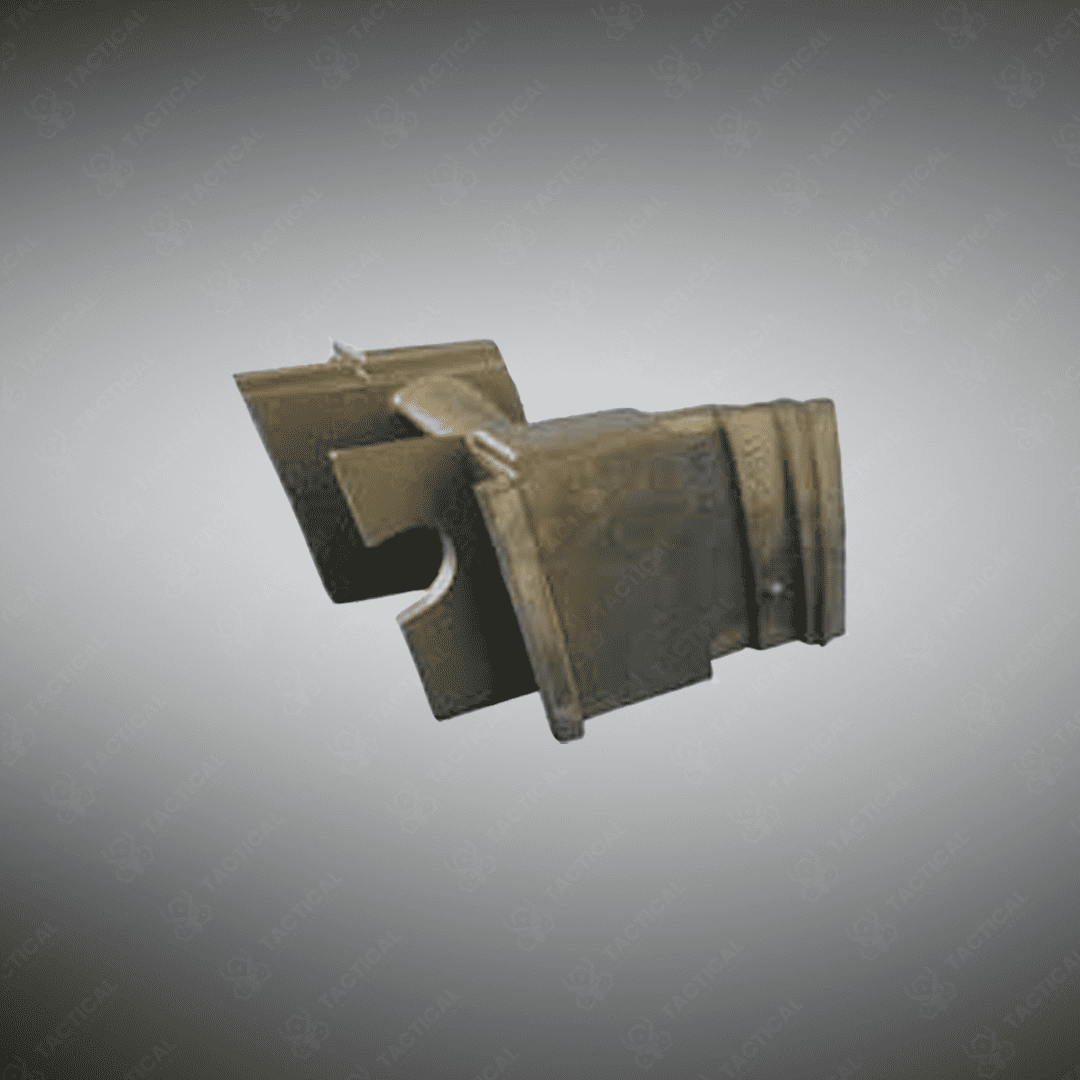

Stage 1 Turbine Vane Segment is a crucial component in the gas turbine engine of the F-16 aircraft. This segment is part of the turbine section and is responsible for directing and controlling the flow of high-temperature gases produced during the combustion process. The turbine vane is designed to withstand extreme heat and pressure, ensuring that the engine maintains optimal performance and efficiency. It plays a critical role in converting the energy from the exhaust gases into mechanical energy that drives the engine’s compressor.

This part is typically made of high-performance materials like nickel-based alloys that can handle the high-stress environment within the engine. These materials provide the necessary resistance to corrosion and thermal fatigue, ensuring the component’s longevity and reliability under harsh operational conditions.

In the F-16, the Stage 1 Turbine Vane Segment is strategically located within the turbine section, where it interacts directly with the hot exhaust gases from the combustion chamber. It is typically positioned at the first stage of the turbine, where temperatures and pressures are highest. By optimizing the flow of gases through the engine, the vane contributes to the efficient operation of the aircraft’s propulsion system, ensuring that the F-16 can achieve its impressive speed and maneuverability.

Tactical Supply Pakistan has built a reputation for providing high-quality aerospace components, and their offerings are trusted by many within the aviation industry. The engineering of their components ensures that every part meets stringent standards for safety, performance, and durability.

How often should this turbine vane segment be replaced in an F-16 engine?
This Vane Segment should be inspected and potentially replaced based on the engine’s operating hours and the specific maintenance schedule recommended by the aircraft’s manufacturer.
