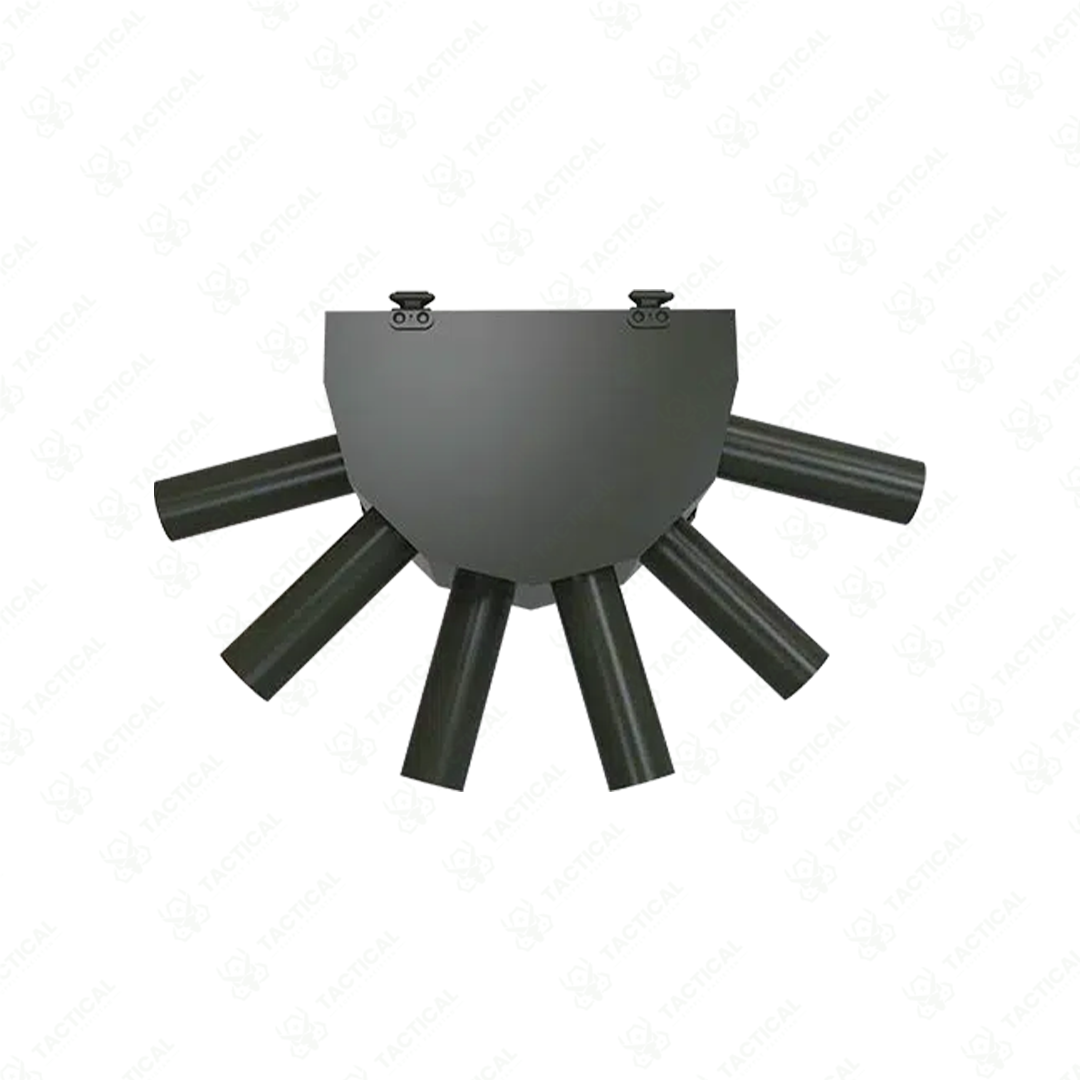

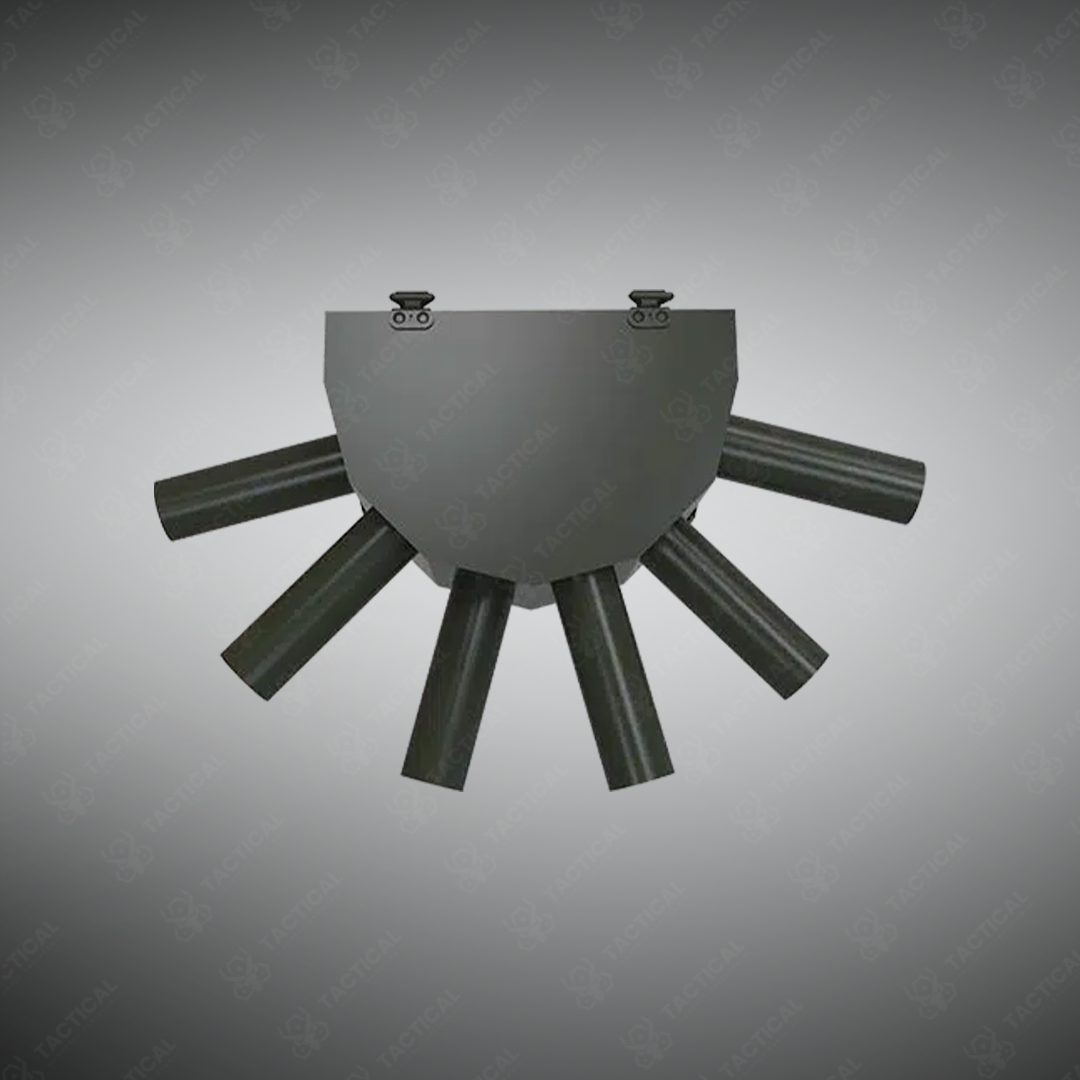

Smoke Launcher NU-40SGLS
Compact multi‑tube 40 mm smoke grenade launcher for vehicle or fixed mounting; modular coverage options and electrical or pyrotechnic activation for rapid obscuration.
Key Features:
✔️ Caliber: 40 mm grenade compatibility (manufacturer‑stated).
✔️ Weight: 11 kg ± 0.5 kg (launcher assembly).
✔️ Dimensions: L 380 mm ± 10 mm, W 574 mm ± 10 mm, H 214 mm ± 10 mm.
✔️ Range: 30–150 m (depends on ammunition selected).
✔️ Power (launcher): 28 V DC nominal (16–32 V range); standby 120 mA ± 20 mA.
✔️ 6 A ± 2 A @ 28 V DC (firing); activation 24 V, 2 A, 10 ms per tube.
✔️ Materials & finish: Zinc‑Nickel coating; 800 hours salt spray corrosion resistance.
✔️ Service life & storage: Shelf life 10 years; storage -55°C / +85°C (control unit spec).
✔️ Coverage & options: configurable 360° / 180° / 120° / 90° mounting patterns.
Smoke Launcher NU-40SGLS
The Smoke Launcher NU-40SGLS features 40-millimeter caliber with effective range from 30–150 meters. Dimensions measure 380 x 574 x 214 millimeters with 11-kilogram weight. Zinc-nickel coating provides corrosion resistance. Protection spans 360, 180, 120, or 90-degree configurations. Power operates at 28 volts DC nominal between 16–32 volts. Standby power consumption measures 120 milliamperes while firing reaches 6 amperes. Activation delivers 24 volts 2 amperes per tube. Ten-year shelf life ensures readiness. Control unit weighs 1.4 kilograms with CAN Bus communication. Operating temperature spans -40 to +65 degrees Celsius. Compliance includes MIL-STD-810G and IPC-A-610G Class 3 standards.
Smoke screen generation occurs within split seconds after deployment. Red phosphorus provides concealment against visual and infrared observation. Modular configuration supports quick attachment and detachment. Activation options include Pyrotechnical Electrical and Resettable Electric Solenoid types. Compatible ammunition includes rubber pellets, impact batons, smoke projectiles, and blast rounds. Mounting accommodates turret, roof, and remote weapon systems. Sequential or simultaneous firing supports tactical requirements. Control capacity extends 4–12 launchers. Safety mode prevents accidental discharge.
The Smoke Launcher NU-40SGLS protects military vehicles with rapid smoke obscuration. Armored formations employ it during tactical repositioning. Helicopter platforms utilize it for evasive countermeasures. Law enforcement tactical teams deploy it for riot control. Border security forces use screens for perimeter protection. Naval vessels mount systems for vessel screening.
Tactical Supply Pakistan delivers this Turkish-engineered launcher system with combat reliability. The system enables rapid smoke deployment across vehicle platforms.
What ammunition types are compatible with this system?
The launcher accepts rubber pellet cartridges, impact batons, smoke projectiles, multi-smoke variants, and blast dispersion rounds for 40-millimeter operations.
