Regional Gamma Detector

Regional Gamma Detector

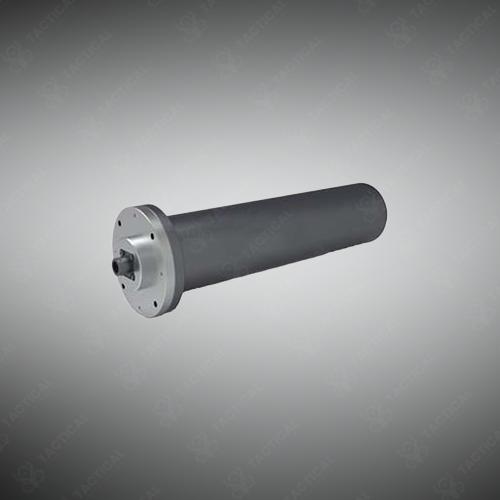

Regional Gamma Detector utilizes Time-to-Count technology with Geiger-Muller counter tube for transient environmental radiation monitoring across 0.1 μGy/h to 100 Gy/h dose rate range. This fixed-installation sensor covers 50keV-3MeV energy spectrum with ±30% energy response error and 5-second maximum response time. The unit measures 110x350mm and weighs 3.5 kilograms with IP65 environmental protection rating. It operates between -40°C and 50°C on DC12V power supply.

The TTC technology enables single GM tube measurement across multiple magnitude orders while intermittent operation extends counter tube service life significantly. High radiation resistance maintains operational capability following nuclear accidents when continuous dose rate information becomes critical for emergency response coordination. The system displays gamma radiation distribution across monitored areas and triggers alarm signals through local processing units when dose rates exceed programmed thresholds. Wide measurement range and high linearity provide accurate readings from background levels through accident conditions.

Military radiation reconnaissance vehicles mount the Regional Gamma Detector on exterior chassis points to map contamination zones during forward area surveys following suspected nuclear weapon detonations or reactor breaches. Naval nuclear propulsion facilities install these detectors throughout reactor compartments and machinery spaces to establish comprehensive radiation monitoring networks. Air force nuclear weapons storage bunkers deploy detector arrays around containment structures to detect shielding degradation and verify inventory security. Unmanned ground vehicles and aerial platforms integrate these sensors for remote reconnaissance missions in denied-access contaminated territories.

Tactical Supply Pakistan provides area radiation monitoring systems designed for high-reliability performance in extreme environments where sensor failure could compromise personnel safety and mission success.

How does Time-to-Count technology differ from conventional GM tube measurement methods?
TTC measures time intervals between detection events rather than counting pulses directly, enabling accurate dose rate determination across eight magnitude orders using single tube configuration while reducing detector dead time limitations that compromise conventional counting systems.
