Pro-SL S04 (Ring) 640 Thermal Camera
Pro-SL S04 (Ring) 640 Thermal Camera – rugged, high-resolution thermal solution with USB or Analog output for vehicle and fixed tactical surveillance.
Key Features:
✔️ 640 × 512 uncooled sensor for high thermal detail.
✔️ 48° horizontal FOV with 30 Hz frame rate for smooth wide coverage.

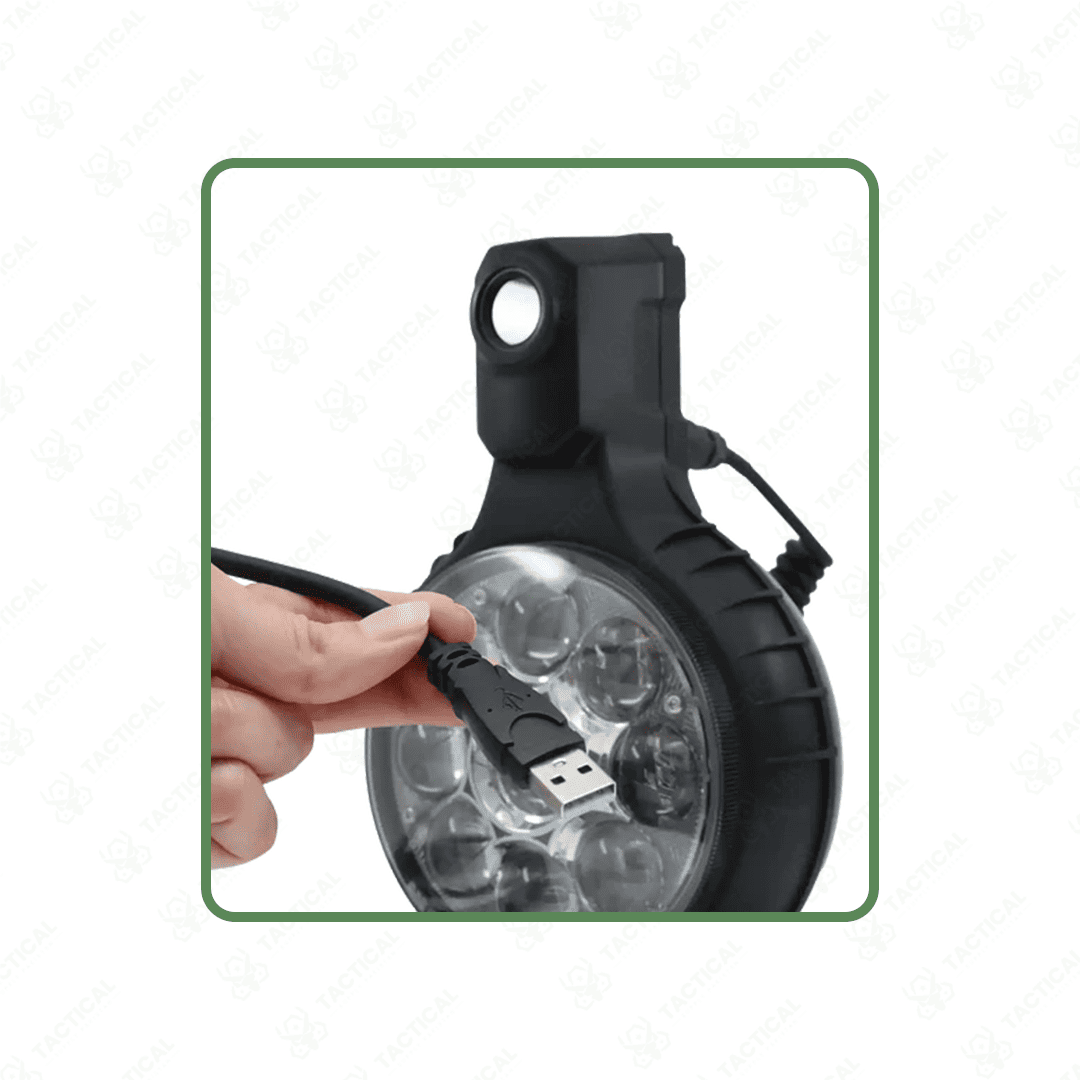

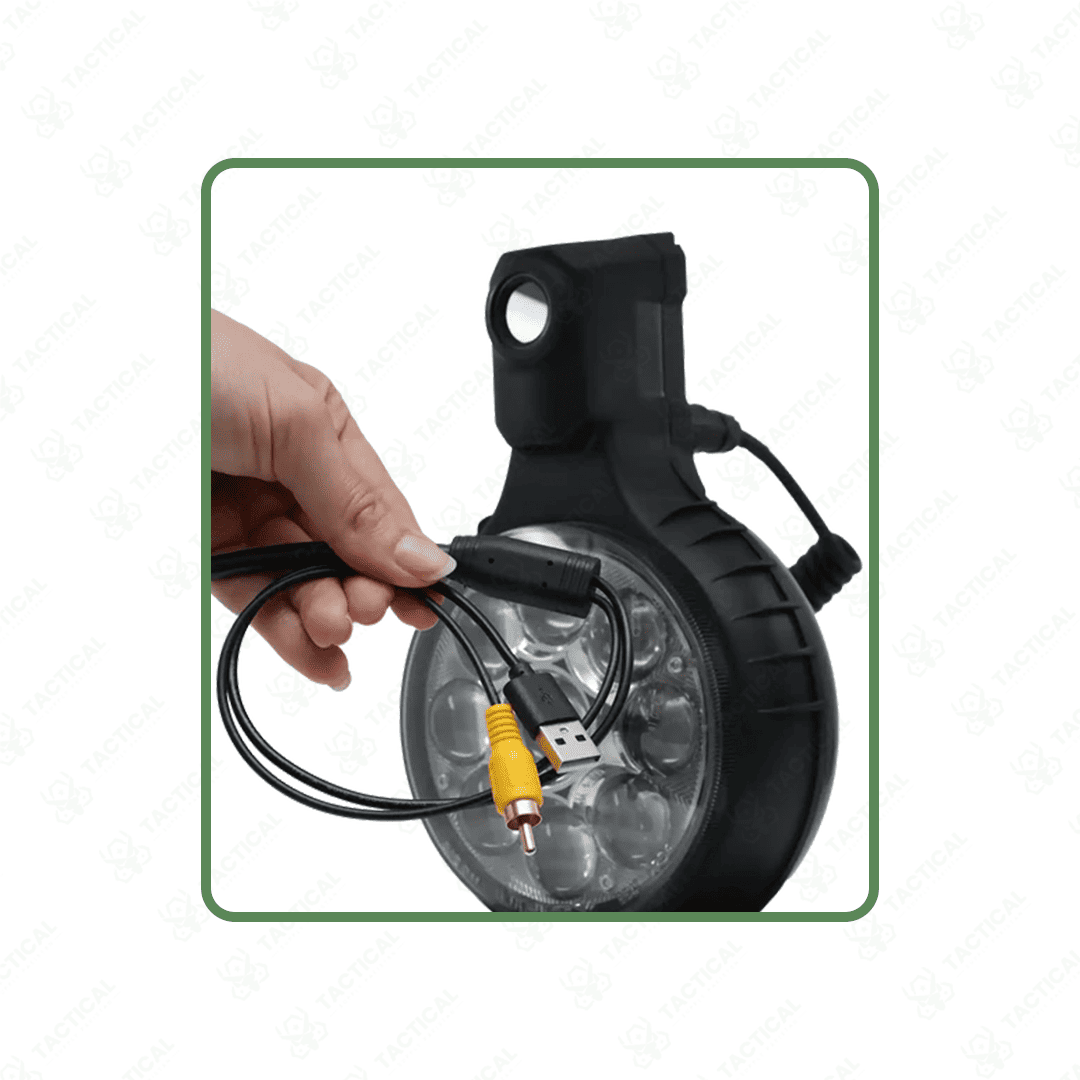

✔️ USB (power + stream) or RCA analog video output
✔️ 3 W power consumption; powered from 5 V USB
✔️ Rugged IP67 sealed housing for harsh-environment operation.
✔️ Detection ~660 yd (≈600 m); recognition ~180 yd under clear conditions.
✔️ Unity S04 ring mount compatibility for quick retrofit on spotlight mounts.
✔️ Mechanical pan/tilt support and continuous or event recording modes.
Pro-SL S04 (Ring) 640 Thermal Camera

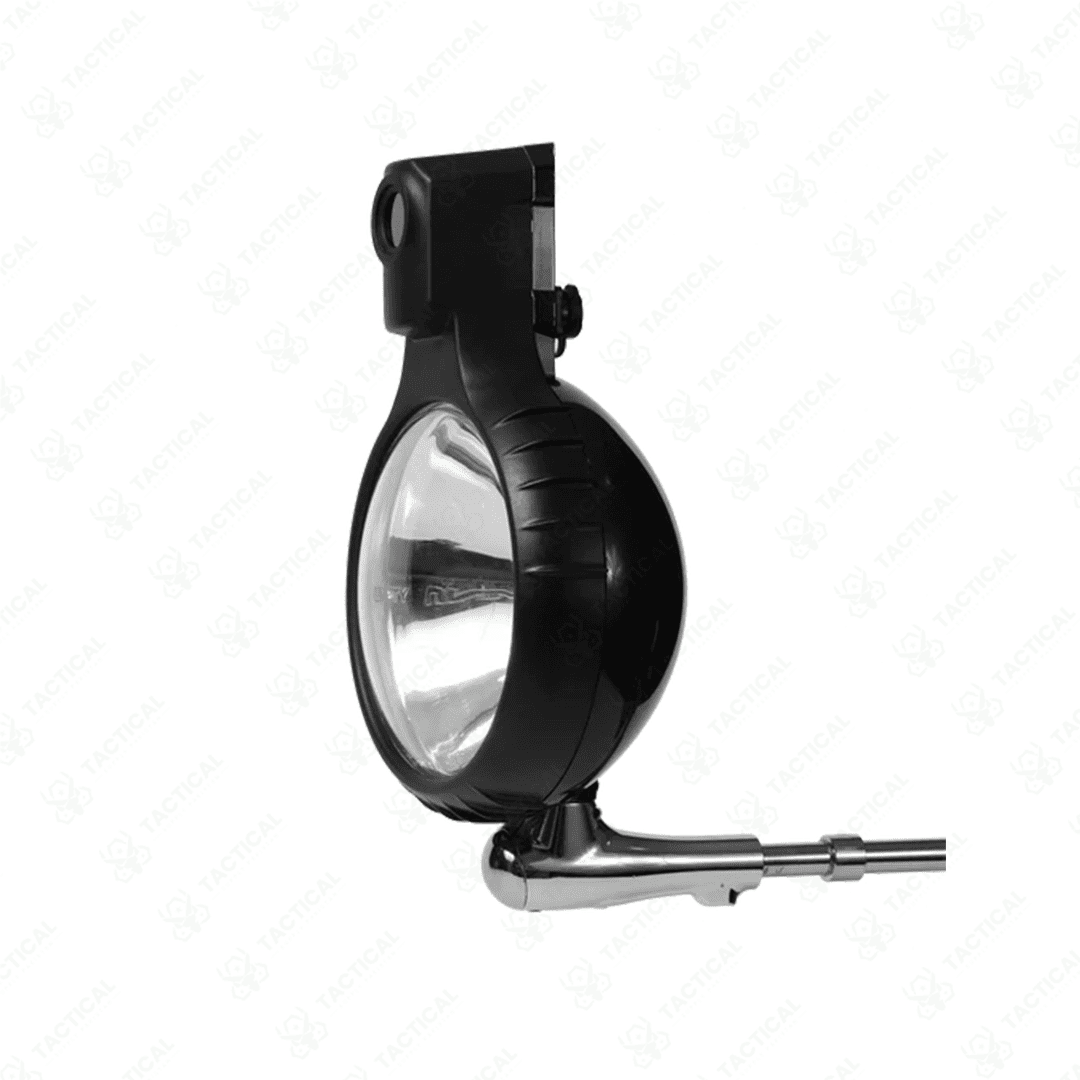

The Pro-SL S04 (Ring) 640 Thermal Camera incorporates a 640 x 512 thermal sensor with a 48-degree horizontal field of view and is available in two connectivity configurations: USB and Analog. Both variants measure 9.5 inches by 6.5 inches by 3 inches, weigh 9 ounces, and feature identical 30hz frame rate with 3-watt power consumption. The system mounts directly onto Unity S04 spotlight housings using a replacement ring assembly, designed for both retrofit installations and new vehicle builds.
Each configuration achieves 660-yard detection range with IP67-rated sealing that operates in temperatures from -40°F to +140°F. Both variants receive 5V power via USB-A 3.1 connection from either Windows laptop ports or monitor/console USB ports. The USB version streams video directly to laptops with continuous or event-based recording capabilities. The Analog variant connects via RCA to monitors for direct video streaming. All configurations include mechanical pan and tilt functionality for manual spotlight positioning. The USB version includes USB power cable with coil, USB to USB-C adapter, USB dust cap, heat shrink tubing, and user manual. The Analog variant includes RCA plus USB power cable with coil and identical accessories.

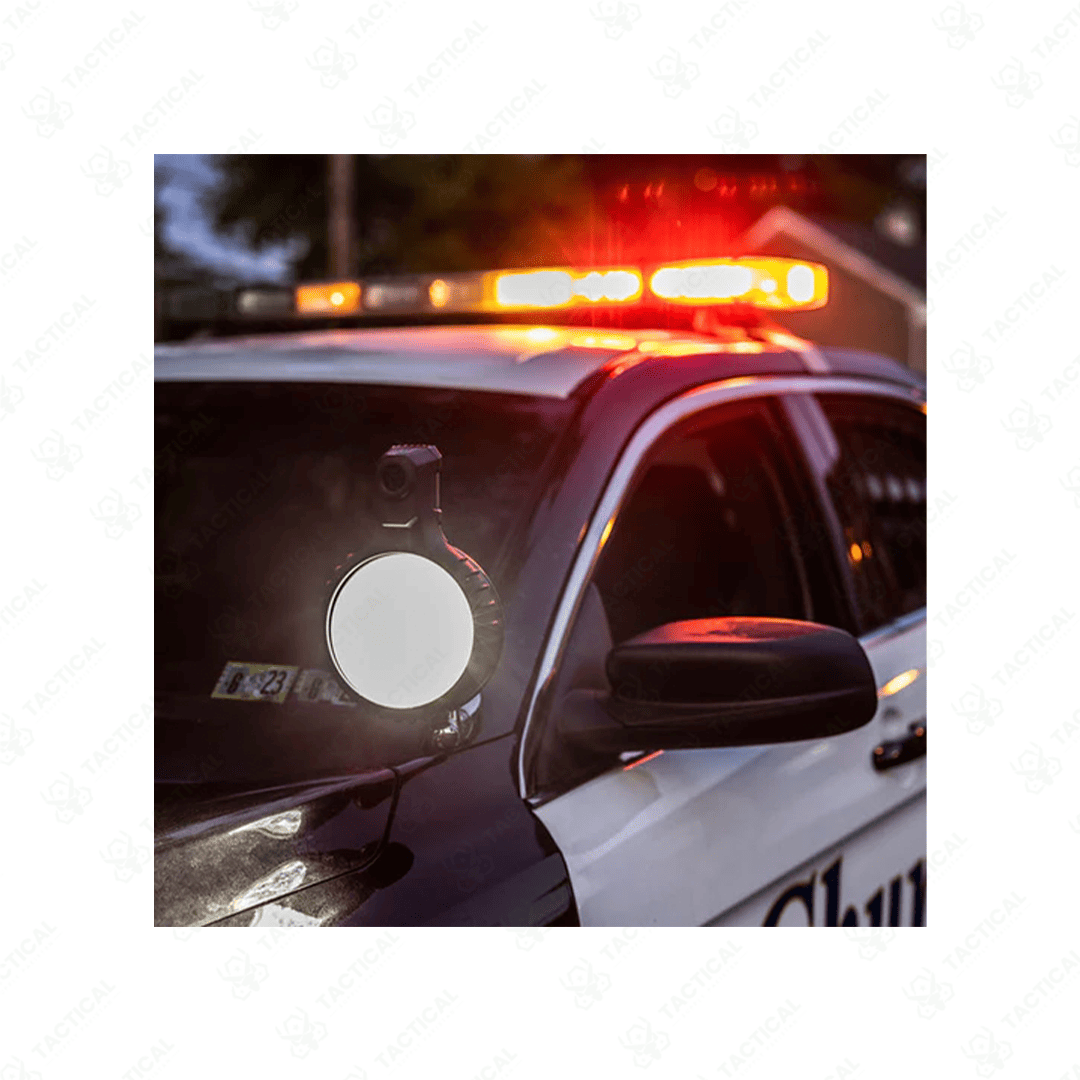

Police departments install the Pro-SL S04 (Ring) 640 Thermal Camera on patrol cruisers for identifying pedestrians during high-speed pursuits. Drug enforcement units utilize the spotlight-integrated system for monitoring suspect movements during nighttime surveillance operations. Airport security personnel deploy these cameras on runway patrol vehicles for foreign object detection.
Tactical Supply Pakistan stocks both connectivity configurations with Unity S04 mounting hardware and installation documentation. The company provides compatibility assessments for existing spotlight infrastructure and power source verification.
What is the advantage of ring mounting versus bowl mounting for spotlight integration?
Ring mounting replaces only the front bezel while retaining the original reflector assembly, offering simpler installation and lower profile compared to bowl mounting which replaces the entire spotlight reflector housing.
