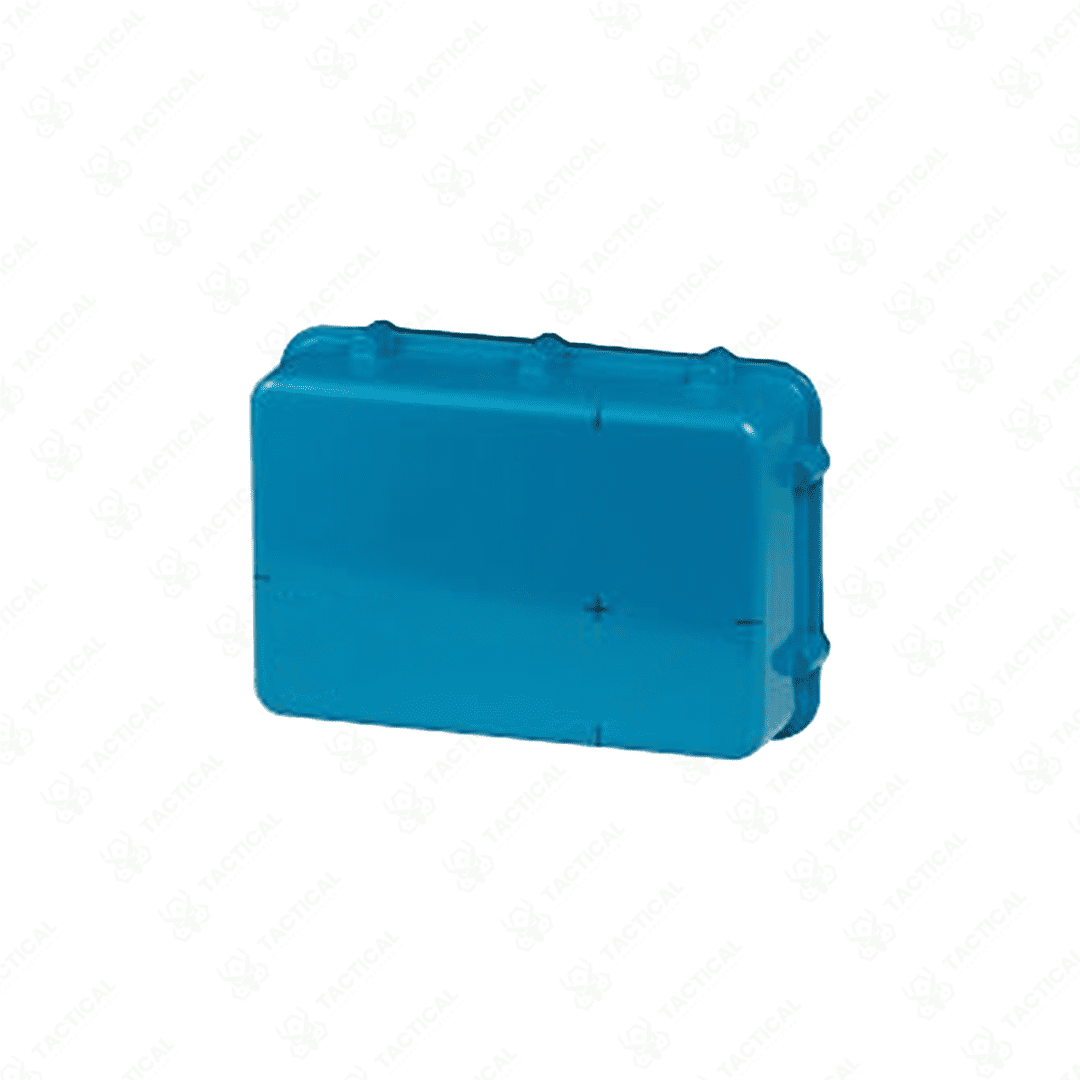

Permanent-Mount Spectrometer
High-resolution, fixed-installation gamma-ray spectrometer for long-term radiation monitoring in nuclear and industrial environments. Six variants with pixelated CZT sensors, ≤0.8% FWHM resolution, IP65-sealed housing, wireless access, and no cryogenic cooling.
Key Features:
✔️ 6 variants: S100 / S100+ / S100x / S400 / S400+ / S400x
✔️ Pixelated CZT detector volumes up to >19 cm³
✔️ Energy resolution: ≤0.8% FWHM (≤0.65% in “+” and “x” models)
✔️ Continuous spectral logging (6+ months)
✔️ Built-in wireless, Ethernet, and browser-based interface
✔️ Embedded battery backup for power outages
✔️ IP65-sealed and decontamination ready
✔️ Boots in <60 seconds – no cooling required
✔️ Remote access via tablet, laptop, or plant control system
✔️ Annual recalibration and lifetime software updates by Tactical Supply Pakistan
Permanent-Mount Spectrometer
Compact in form but expansive in capability, the Permanent-Mount Spectrometer is engineered for continuous gamma-ray monitoring in nuclear and industrial settings. Weighing under 6 lbs, its rugged design accommodates long-term installations without sacrificing sensitivity or performance. Across its six variants: S100, S100+, S100x, S400, S400+, and S400x, the system integrates pixelated CdZnTe crystals of up to >19 cm³, providing superior spectroscopic clarity. Operators benefit from energy resolutions as fine as ≤0.8% FWHM at 662 keV, with interaction-by-interaction resolution reaching ≤0.65% FWHM in advanced models.
Each unit includes a robust embedded system with built-in wireless connectivity, enabling real-time isotope identification and quantification from a tablet or browser interface. The IP65-sealed enclosure is air and water tight, allowing easy decontamination even in harsh conditions. The embedded battery offers power continuity during outages, while the device automatically logs more than six months of spectral and trend data. With startup readiness in under 60 seconds and no need for cryogenic cooling, this system redefines field deployability.
The Permanent-Mount Spectrometer is ideal for mounting in pipes, ducts, or process valves where isotopic characterization and radiation monitoring are required over time. It’s suited for both short-duration inspections and continuous surveillance during outages or operational shifts. From outage dose tracking to isotopic trend analysis, it provides clear, actionable radiation data.
Built to meet the exacting standards of nuclear power plant operations, Tactical Supply Pakistan ensures each spectrometer undergoes annual recalibration and receives lifetime software updates, maintaining long-term accuracy and compliance.
Can the system be accessed remotely during operation?
Yes. The spectrometer supports both wireless and wired access, allowing users to view trends and spectra from a tablet, web dashboard, or Ethernet-connected system, even in high-radiation environments.
| Model | S100 | S100+ | S100x | S400 | S400+ | S400x |
|---|---|---|---|---|---|---|
| Resolution (% FWHM @ 662keV) | <1.1 | <0.8 | <1.1 | <1.1 | <0.8 | <1.1 |
| Spectrometer Range (keV) | 50 to 3000 | 50 to 3000 | 50 to 9000 | 50 to 3000 | 50 to 3000 | 50 to 9000 |
| Imaging Range (keV) | N/A | N/A | N/A | N/A | N/A | N/A |
| Collimator (” Tungsten) | N/A | N/A | N/A | N/A | N/A | N/A |
| CZT Volume (cm³) | >4.5 | >4.5 | >4.5 | >19 | >19 | >19 |
| Weight (lbs.) | 5.2 | 5.2 | 5.2 | 5.4 | 5.4 | 5.4 |
| Battery Life (hrs.) | >2 | >2 | >2 | >2 | >2 | >2 |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Temperature Rating (°F) | -4 to 122 | -4 to 122 | -4 to 122 | -4 to 122 | -4 to 122 | -4 to 122 |
| Startup Time (minutes) | <1.5 | <1.5 | <1.5 | <1.5 | <1.5 | <1.5 |
| User Interface | Tablet / Webpage | Tablet / Webpage | Tablet / Webpage | Tablet / Webpage | Tablet / Webpage | Tablet / Webpage |
