MIMO Mesh Handheld Radio
Rugged, high-speed handheld mesh communicator.
Key Features:
✔️ MIMO tech: strong mobile signals
✔️ Dual-channel up to 80 MHz
✔️ 350 Mbps max data transfer
✔️ Anti-jamming & intelligent hopping
✔️ Interfaces: GPS, Ethernet, Wi-Fi
✔️ 300 km LOS, 30 km urban
✔️ Works from -40°C to +80°C
✔️ Encrypted: AES256, SNOW3G, ZUC
✔️ Battery life: 6 to 10 hours
✔️ IP66/67/68 weatherproof certified
MIMO Mesh Handheld Radio

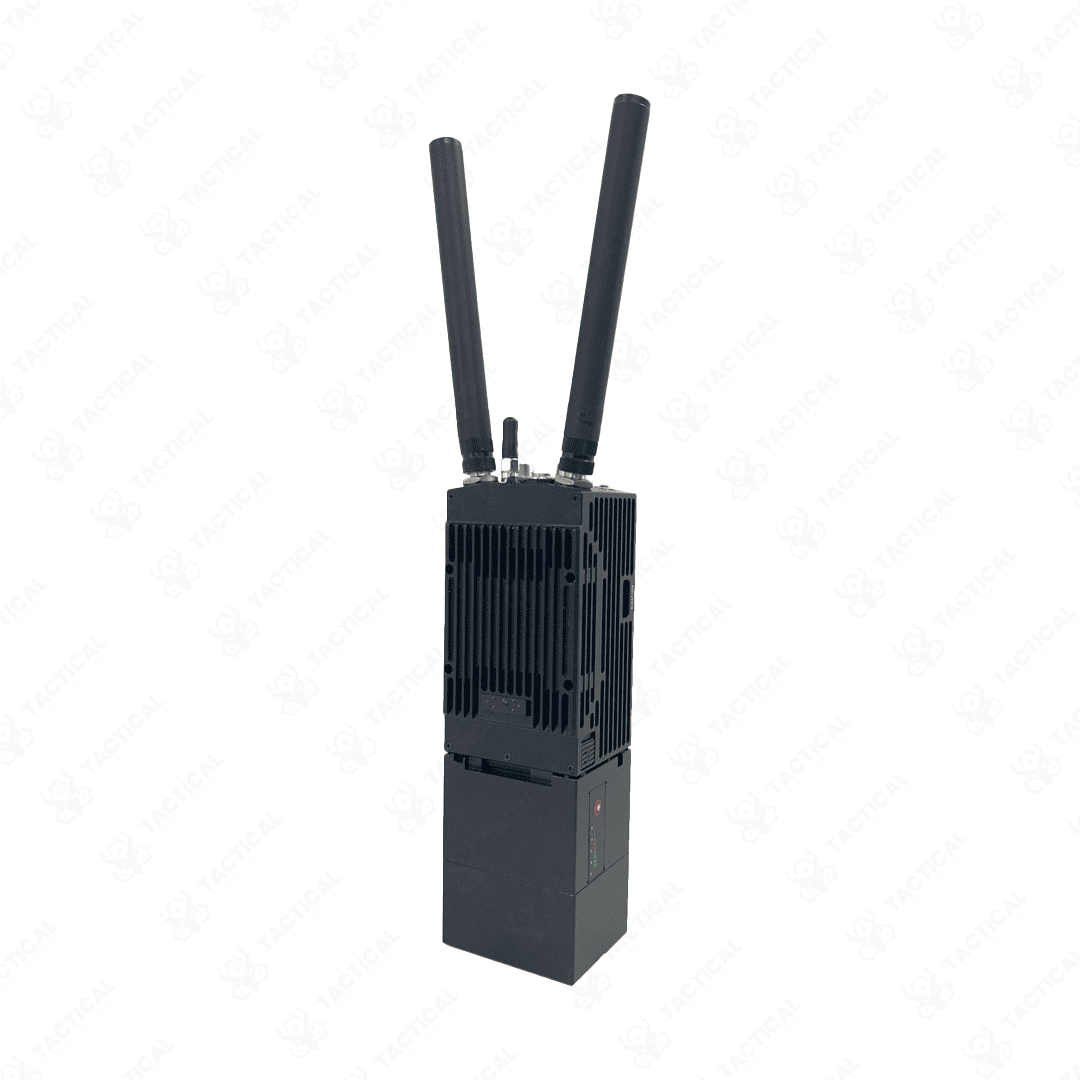

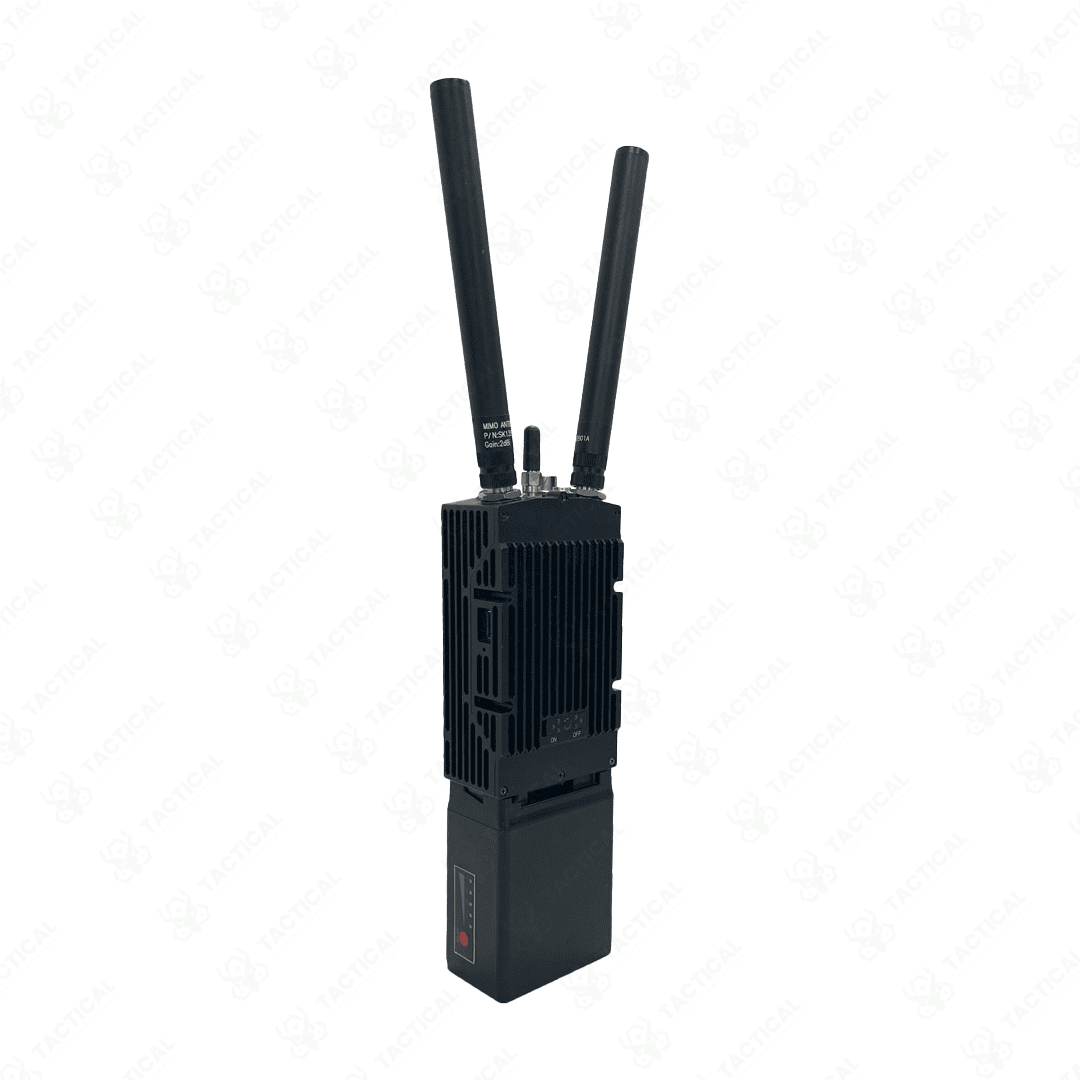

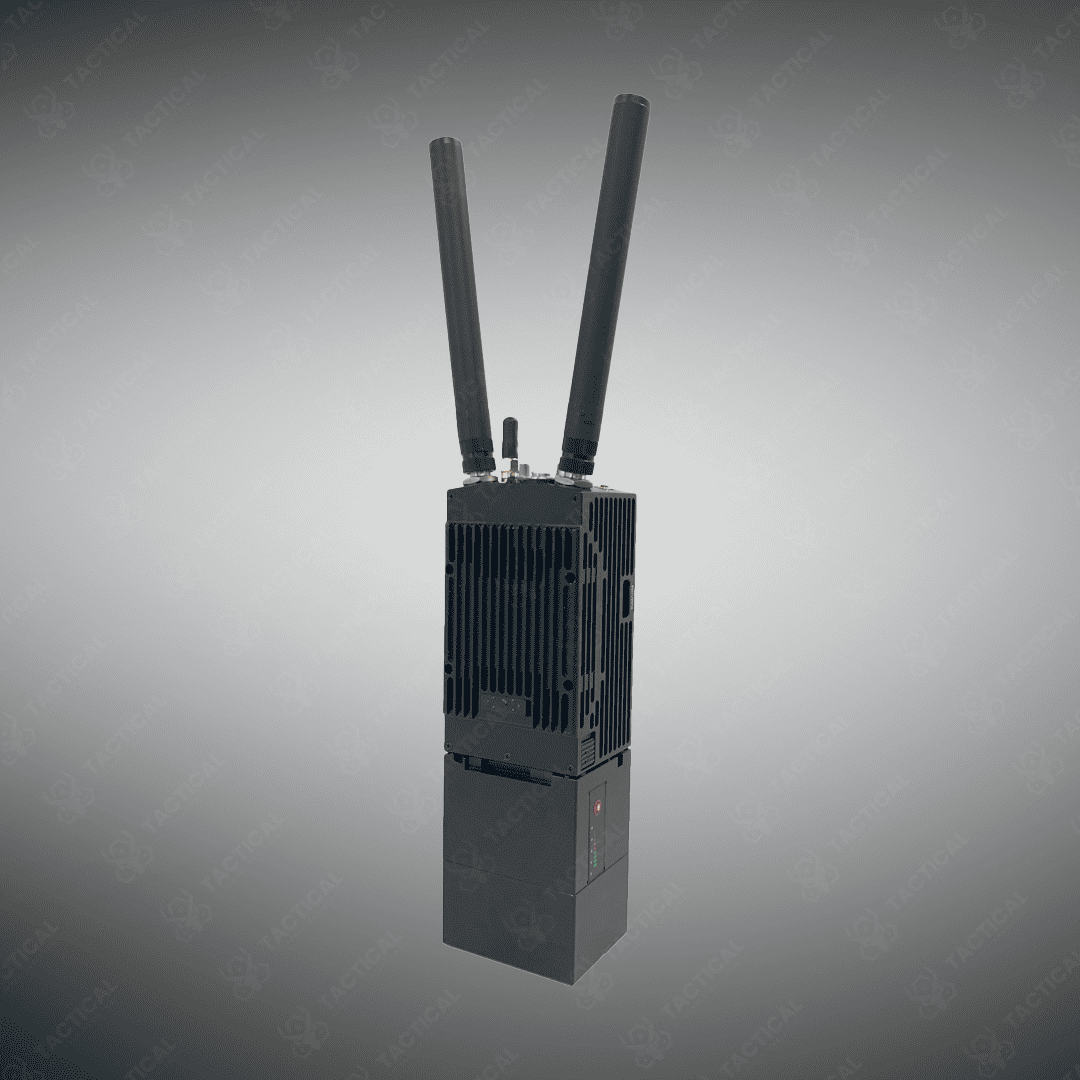

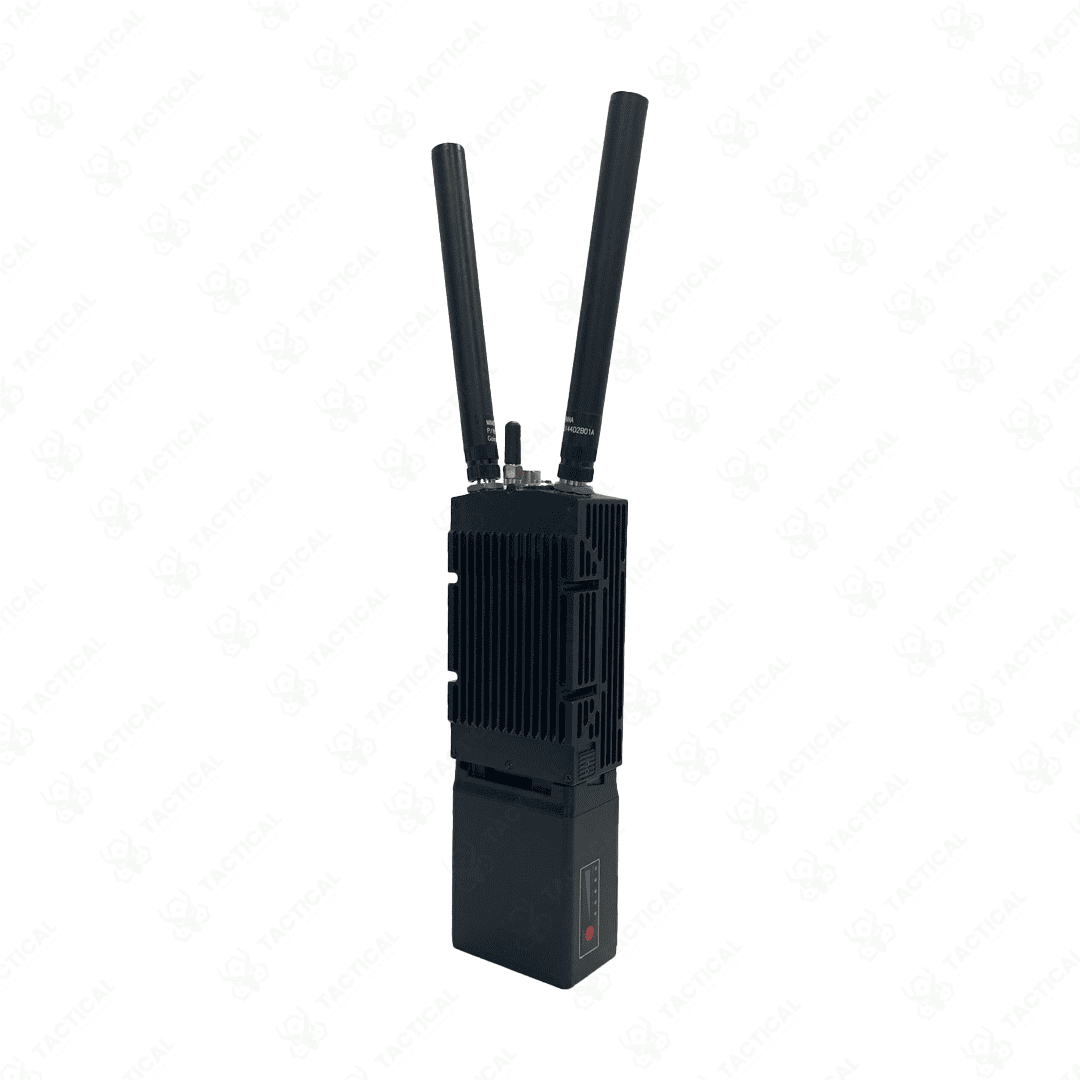

The MIMO Mesh Handheld Radio is a compact, high-performance communication unit engineered for mobile mesh networking in complex terrains. It integrates advanced MIMO (Multiple Input Multiple Output) technology, featuring spatial multiplexing, receive diversity, and beamforming, ensuring signal strength remains stable even in fast-moving scenarios. Its design includes dual-channel capability, each supporting up to 40 MHz bandwidth, with optional carrier aggregation up to 80 MHz. External TNC RF connectors, multiple data interfaces, and rugged construction define its functional adaptability in field operations.
This handheld radio supports adaptive modulation ranging from BPSK to 1024QAM, achieving data rates up to 350 Mbps. Its output power is configurable up to 4W×2, with 1 dBm stepping for precise control. It includes anti-jamming features like intelligent frequency hopping, spectrum scanning, and roaming, making it suitable for both contested and dynamic electromagnetic environments. The system interfaces include Ethernet, GPS/BD, Wi-Fi AP, RS232/TTL, RS485/422, and USB OTG. Power supply options range from 9V to 28V DC, with standby consumption under 0.7 A, and its operational temperature tolerance spans -40°C to +80°C.
The MIMO Mesh Handheld Radio finds its role in tactical missions, disaster response, border control, and military deployments where mobility and dependable broadband communication are mission-critical. It ensures real-time voice, video, and data transmission across moving units without requiring fixed infrastructure. Operating ranges extend up to 300 km (LOS) and 30 km in urban settings.
Known for resilient, field-proven gear, Tactical Supply Pakistan maintains strict sourcing standards and technical validation across its offerings. The radio’s IP66/IP67/IP68 rating, encrypted communication support (AES256, SNOW3G, ZUC), and modular interfaces align with operational demands faced by modern defense and law enforcement units.
How long does the battery last in this Handheld Radio?
Depending on battery configuration (77.7 Wh or 114 Wh lithium), it operates between 6 to 10 hours on a full charge.
