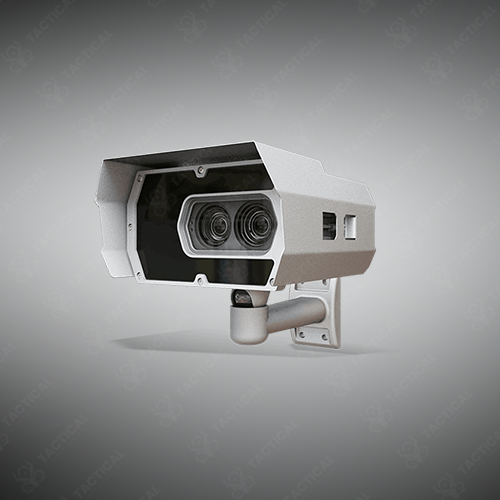

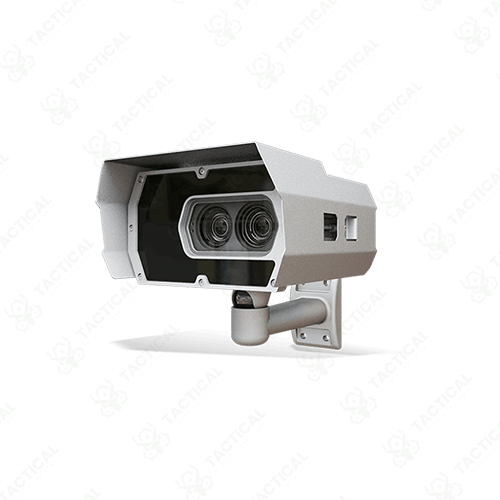

High-Performance ANPR Camera
The High-Performance ANPR Camera delivers comprehensive vehicle recognition through Carmen® technology, capturing license plates, vehicle makes, models, and hazardous material signs at speeds reaching 320 km/h with military-grade accuracy for critical security applications.
Key Features:
✔️ Carmen® ANPR engine with 99.7% plate recognition accuracy across 100+ countries
✔️ Dual 4-core CPUs for simultaneous ANPR, MMR, and video streaming processing

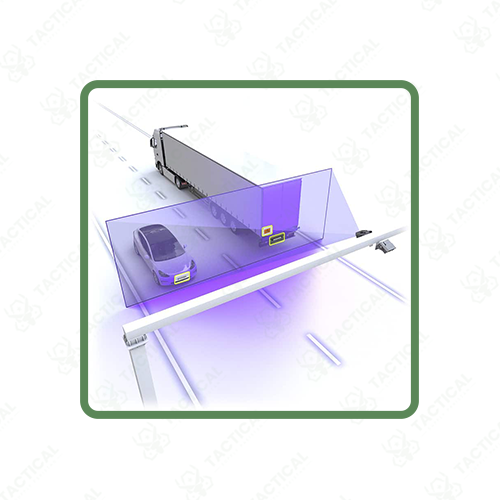

✔️ 5MP + 1.5MP Global Shutter sensors for multi-lane traffic coverage

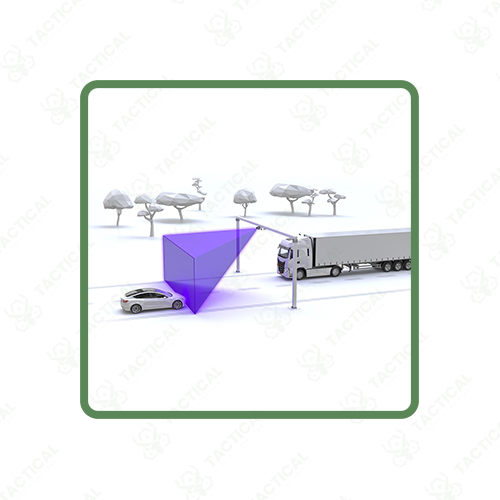

✔️ Built-in laser triggering for 100% vehicle detection without external equipment
✔️ Motorized 3.3x and 18x zoom lenses with 10m to 50m effective range

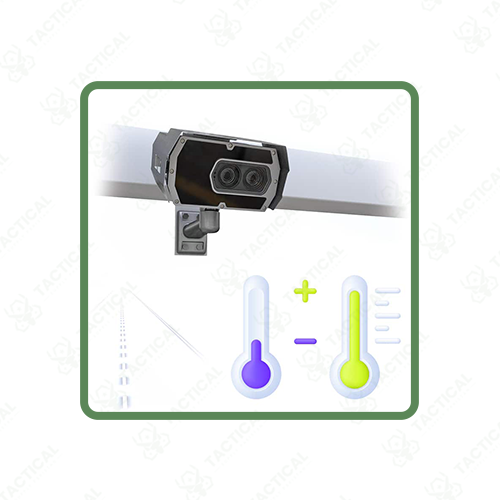

✔️ IP67 aluminum housing operational from -40°C to +70°C temperatures
✔️ 850nm infrared illumination for 24/7 plate capture in total darkness
✔️ Self-adjusting optics with onboard gyroscope and accelerometer optimization
High-Performance ANPR Camera
The High-Performance ANPR Camera integrates Carmen® recognition technology with dual 4-core CPUs for simultaneous processing. This system features a Global Shutter sensor configuration with 5MP primary resolution (2432×2048 pixels) and secondary 1.5MP sensor (1440×1080 pixels). The unit includes an IP67-rated aluminum housing and operates across -40°C to +70°C temperatures. Built-in laser triggering achieves consistent vehicle detection while processing speeds up to 320 km/h. The optical system includes motorized 3.3x and 18x zoom lenses with fields of view ranging from 25° x 21° to 56° x 43°.
The modular construction allows component swapping without complete unit replacement. Power consumption runs at 48V DC with PoE+ support for streamlined installation. Embedded illumination operates at 850nm infrared wavelength for plate capture in total darkness. The system outputs data via PUSH and PULL protocols through documented REST API interfaces. Onboard gyroscope, accelerometer, and laser rangefinder enable automatic focus and zoom optimization based on mounting angles.
Military checkpoints deploy the High-Performance ANPR Camera for border surveillance where vehicle classification separates civilian from tactical transport. Navy port facilities use the system for tracking container vehicles carrying hazardous materials through ADR sign recognition. Air force base perimeters implement dual-lane monitoring to identify unauthorized vehicle approaches at secure taxiway crossings.
Tactical Supply Pakistan delivers this camera system to government and security agencies requiring verified vehicle intelligence. The company provides technical integration support and compliance documentation for installations meeting defense-grade operational standards.
Can the system differentiate between reflective and non-reflective license plates?
Yes, the adaptive imaging system automatically adjusts exposure and illumination intensity to capture both reflective Euro-style plates and non-reflective formats used across regions.
