Heat Exchanger

Heat Exchanger

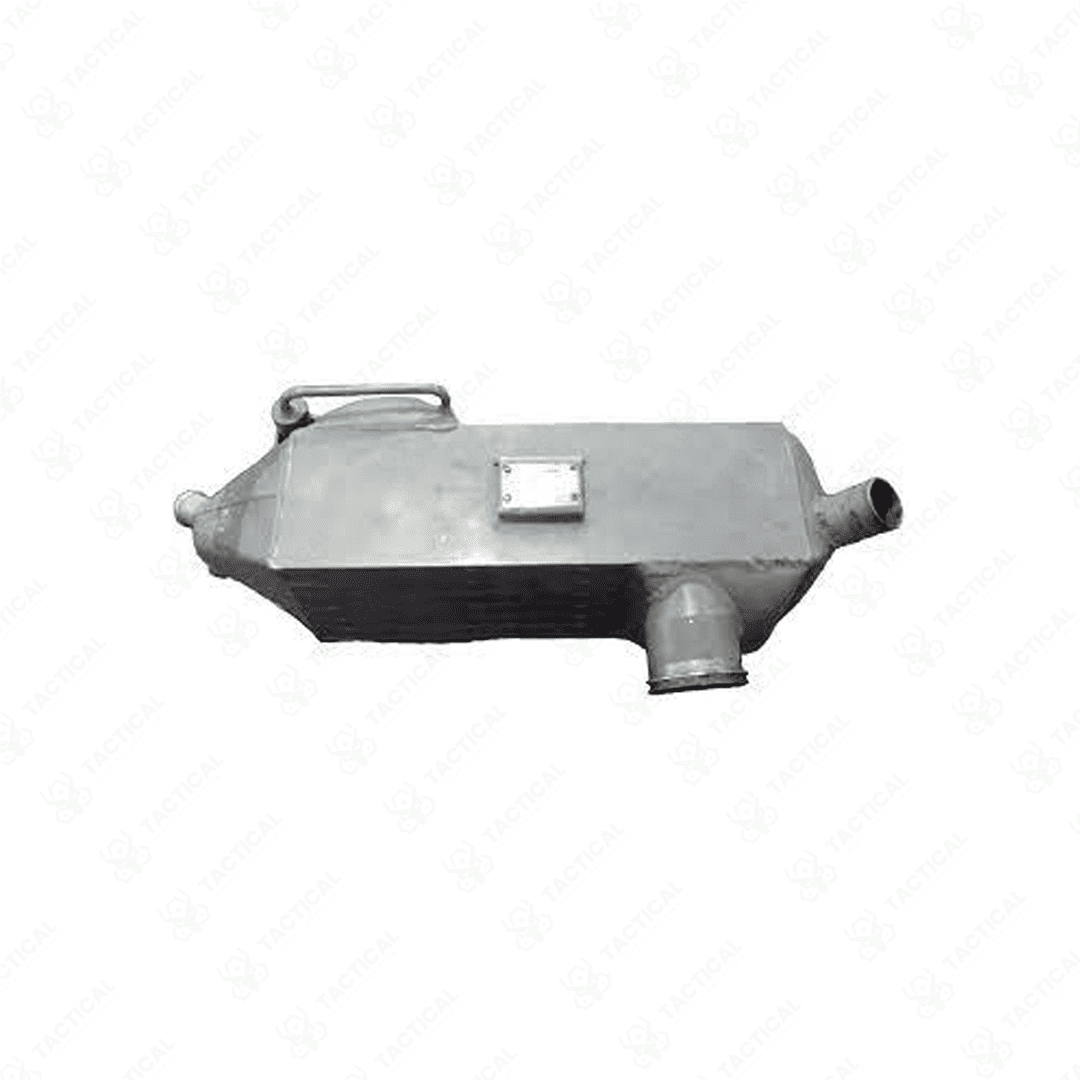

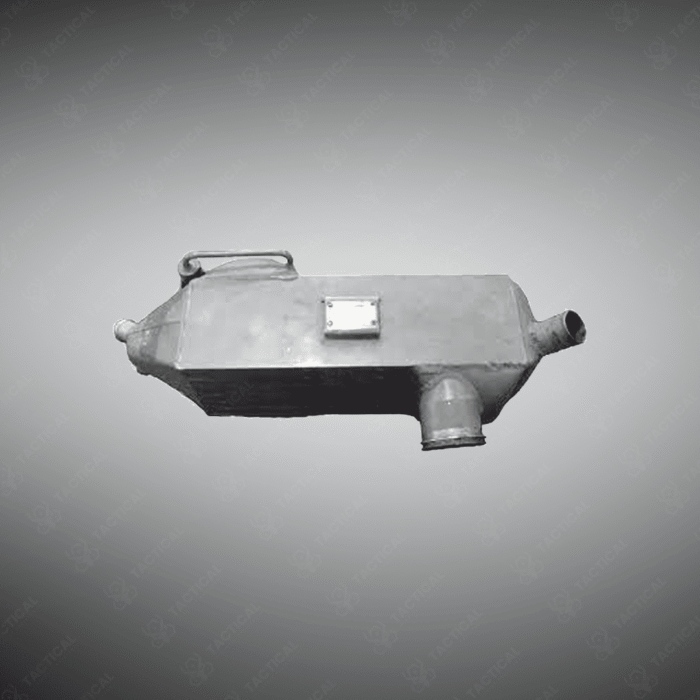

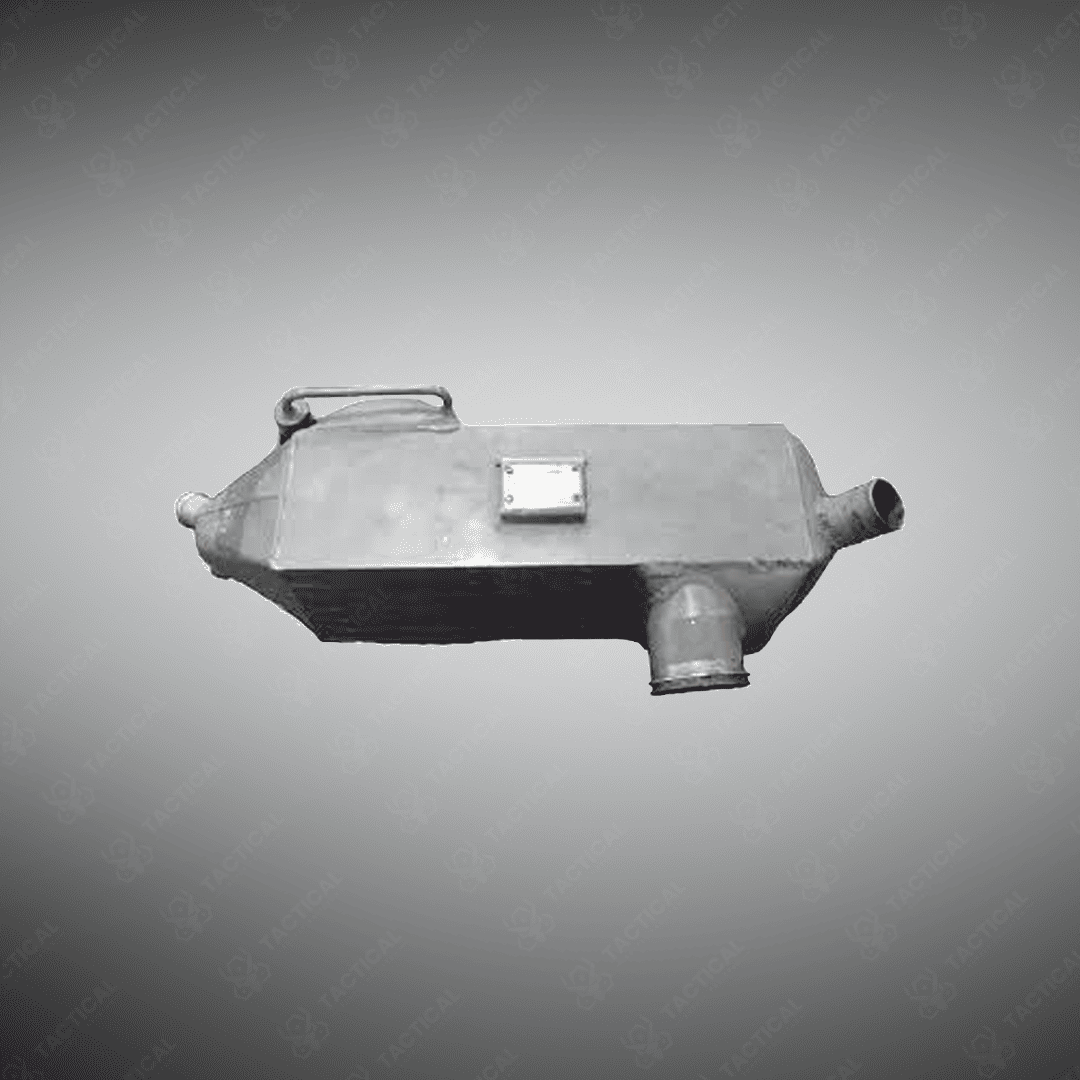

The Heat Exchanger for F-16 Aircraft is a critical component within the aircraft’s Environmental Control System (ECS), designed to manage and dissipate heat generated by various onboard systems. Constructed from high-strength, corrosion-resistant materials such as Inconel and stainless steel, this unit ensures durability and performance under extreme operational conditions.

This heat exchanger operates by transferring excess heat from engine oil and hydraulic fluids to the aircraft’s fuel or ambient air, thereby maintaining optimal temperatures for essential systems. Its design incorporates a series of finned tubes and baffles to maximize surface area and enhance heat transfer efficiency. The unit’s compact and lightweight construction allows for seamless integration into the F-16’s airframe without compromising structural integrity or performance.

In the F-16, the  exchanger plays a pivotal role in maintaining the thermal balance of the aircraft, ensuring that critical components such as avionics, radar systems, and flight control electronics operate within their designated temperature ranges. By effectively managing heat loads, it contributes to the aircraft’s overall reliability and mission readiness, especially during high-performance maneuvers and extended flight operations.

Supplied by Tactical Supply Pakistan, this heat exchanger meets stringent military specifications and undergoes rigorous quality assurance processes to ensure compliance with NATO and U.S. Air Force standards. Each unit is tested for thermal performance, pressure resistance, and structural integrity to guarantee optimal functionality in demanding environments

How often should the heat exchanger be inspected in service?
It is typically inspected during major maintenance intervals or when abnormal temperature readings are noted. Preventive checks every 400–600 flight hours are recommended, depending on operational intensity and environmental exposure.
