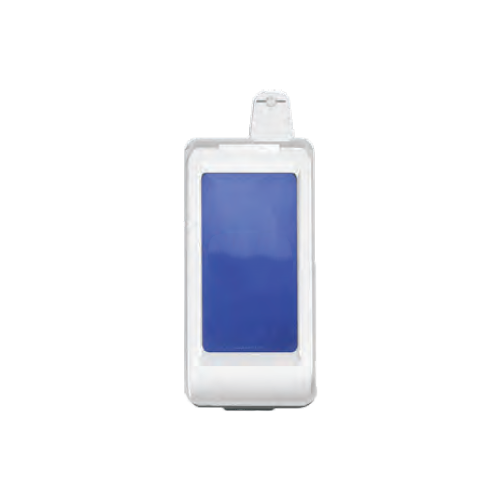

Handheld Raman Drug Detector
A certified handheld Raman spectrometer designed for rapid and reliable detection of illicit drugs, precursor chemicals, and hazardous substances with minimal fluorescence interference.
Key Features:
✔️1064 nm laser wavelength providing strong resistance to fluorescence interference for clear, reliable spectra
✔️Rapid detection speed with high measurement sensitivity for fast field screening
✔️Adjustable laser power (0–600 mW) to accommodate different sample types and conditions
✔️High-resolution Raman spectra (8–15 cm⁻¹) with distinctive fingerprint peaks for precise substance identification
✔️Optimized automatic mixture analysis algorithms for accurate detection of multi-component samples
✔️Comprehensive spectral library covering common illicit drugs, fentanyl derivatives, synthetic cannabinoids, and precursor chemicals
✔️Certified by public security authorities, ensuring trusted and field-ready performance
✔️Portable, handheld design suitable for law enforcement, drug enforcement, security screening, hazardous material inspection, and scientific research
Handheld Raman Drug Detector
The Handheld Raman Drug Detector operates at 1064nm laser wavelength with software-adjustable power from 0 to 600mW for optimized sample analysis. The system spans a 200 to 2500 cm⁻¹ wavenumber range with 8 to 15 cm⁻¹ resolution, delivering distinctive molecular fingerprint characteristics for substance identification. This wavelength selection provides superior resistance to fluorescence interference that compromises detection accuracy in traditional Raman systems. The device includes spectral libraries covering common illicit drugs, hazardous chemicals, precursor compounds, and new psychoactive substances including fentanyl analogs and synthetic cannabinoids.
Optimized automatic mixture analysis algorithms enable identification of complex compositions without manual spectral interpretation. High measurement sensitivity detects trace quantities while adjustable laser power prevents sample degradation during analysis. The resolution facilitates clear feature peak extraction for accurate determination of chemical structure and substance type. Fast detection speed delivers results rapidly for field screening applications where immediate decisions are required. Public security certification validates the instrument’s reliability for law enforcement operations.
Drug enforcement agencies deploy the Handheld Raman Drug Detector for suspected narcotics identification during traffic stops and building searches. Border security personnel screen incoming shipments for controlled substances and precursor chemicals at customs checkpoints. Hazmat inspection teams analyze unknown powders and crystals at incident scenes requiring immediate threat assessment. Correctional facility staff examine contraband materials confiscated during institutional security sweeps. Research laboratories use it for synthetic compound verification during forensic investigations.
Tactical Supply Pakistan supplies this certified detection instrument to law enforcement and security organizations requiring field-deployable drug identification capabilities with fluorescence interference rejection.
Why does the 1064nm wavelength improve detection performance?
The 1064nm laser operates in the near-infrared region where most organic compounds exhibit minimal fluorescence emission, eliminating background interference that obscures Raman spectral features in visible-wavelength systems.
