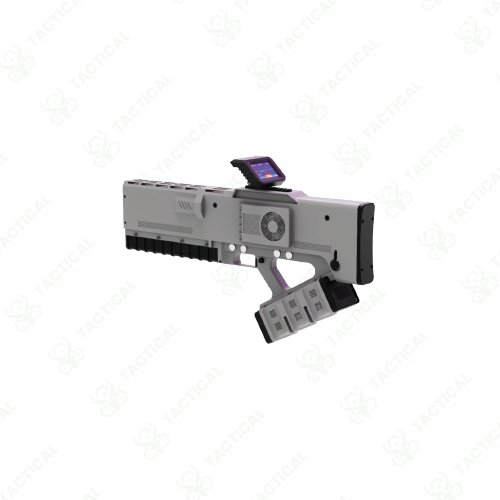

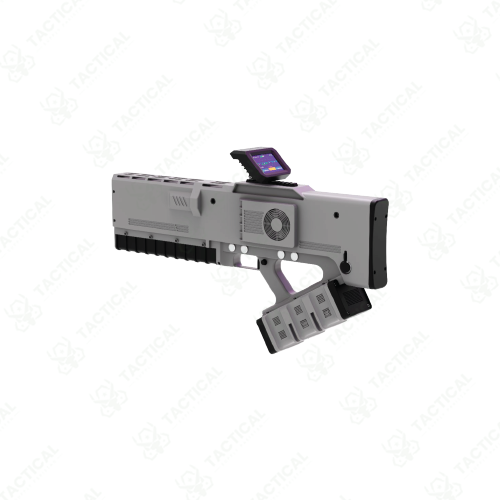

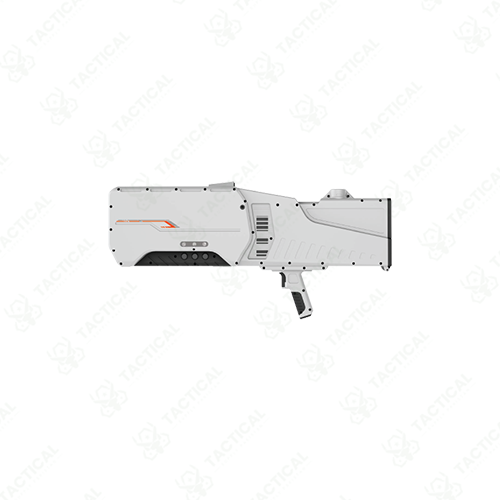

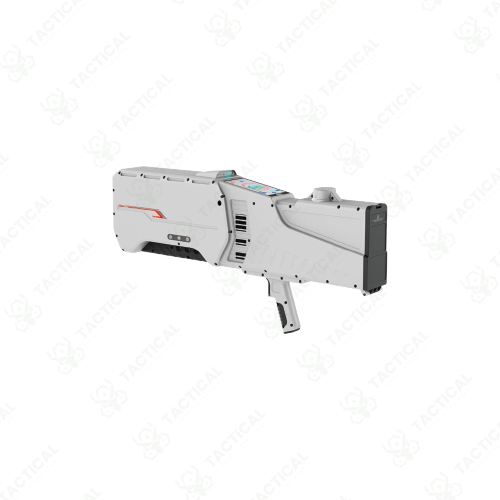

Handheld Drone Detection, Jamming and Spoofing All-in-One Equipment
Handheld Drone Detection, Jamming & Spoofing All-in-One Equipment is a compact counter-UAS device integrating detection, identification, jamming, and navigation spoofing for rapid field deployment.
Key Features:
✔️ Integrated all-in-one counter-drone functions in a single handheld unit
✔️ Passive wideband detection across common UAV control frequencies
✔️ Accurate drone identification by band, model, and signal fingerprint
✔️ Directional target indication supporting focused countermeasures
✔️ Adaptive multi-band jamming for reliable link disruption
✔️ GNSS spoofing capability to force return, hover, or landing
✔️ Built-in color display with real-time target and status view
✔️ Hot-swappable battery system for continuous field operation
✔️ Portable, rugged design suitable for mobile and tactical use
Handheld Drone Detection, Jamming and Spoofing All-in-One Equipment
The Handheld Drone Detection, Jamming and Spoofing All-in-One Equipment integrates passive detection, direction finding, jamming, and navigation spoofing in a single platform. The HDJS 1.0 measures 731.8mm x 443.5mm x 112mm weighing 6 kilograms, while the HDJS 3.0 dimensions reach 805mm x 120mm x 395mm at 7 kilograms with battery included. Both models scan 400MHz to 6GHz frequencies with detection ranges up to 3 kilometers. The HDJS 1.0 jams four bands (900MHz, 1.5GHz, 2.4GHz, 5.8GHz) with power outputs between 40-43 dBm, whereas the HDJS 3.0 covers seven customizable bands including 433MHz/1.4GHz with outputs reaching 47 dBm.

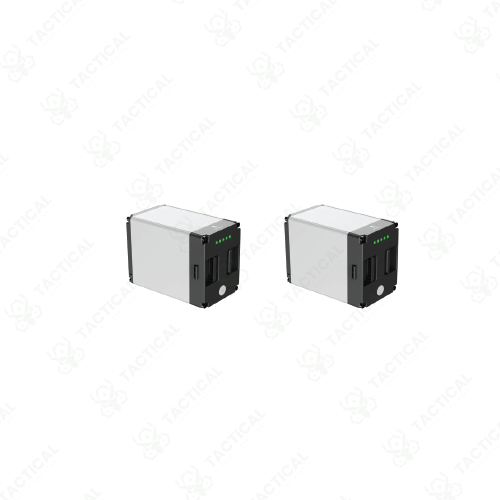

Direction finding accuracy maintains 10-degree RMS precision across both variants. The HDJS 3.0 incorporates RTK technology achieving centimeter-level positioning and features a 5.5-inch 1920×1080 resolution touchscreen with imported digital map display. Navigation spoofing targets GPS-L1, GLONASS-L1, and BDS-B1 signals with ranges from 1 kilometer on HDJS 1.0 to adjustable distances on HDJS 3.0. The dual-battery design on HDJS 3.0 enables hot-swapping without shutdown, providing 3 hours detection or 20 minutes full-band jamming. HDJS 1.0 delivers 8 hours detection or 45 minutes jamming per charge. Both units achieve IP65 weatherproofing and operate from -20°C to +65°C.
Correctional facility perimeter patrols deploy the Handheld Drone Detection, Jamming and Spoofing All-in-One Equipment to intercept contraband delivery attempts over walls. Airport security teams carry these systems during runway inspections where unauthorized aircraft threaten departures. Large-scale event security positions operators at venue entrances to establish no-fly enforcement zones. Energy facility guards use them during shift changes when drone surveillance attempts peak around transformer yards and control buildings where operational data remains visible.
Tactical Supply Pakistan provides integrated counter-drone rifles that combine detection intelligence with active countermeasures in operator-portable configurations. The company offers battery management training and frequency coordination planning for multi-unit deployments.
How does adaptive jamming technology improve countermeasure effectiveness compared to fixed-frequency systems?
Adaptive jamming automatically analyzes the detected drone’s communication bands and activates only the necessary frequencies, concentrating power where threats exist rather than broadcasting across all bands simultaneously, extending battery life while maximizing interference strength against confirmed targets.
