Hand Cranked Blasting Machine
Field-proven hand-cranked blasting device for firing insensitive electric detonators—no batteries needed, compact, and built for rugged environments.
Key Features:
✔️ Delivers up to 1 250 V and 88 J from manual cranking
✔️ Compact aluminum housing (200×143×55 mm, 1.4 kg), single-user operable
✔️ Dual “FIRE” buttons, mechanical lock, and removable crank for safety
✔️ Charges in ~25–30 turns; LED indicators show readiness
✔️ IP65 rated, certified to EN 13763‑26 for field use
✔️ Operates from −20 °C to +55 °C; supports up to 1 100 Ω line resistance
✔️ Ideal for remote blasting zones with no external power
✔️ Long-term durability and easy maintenance in harsh conditions

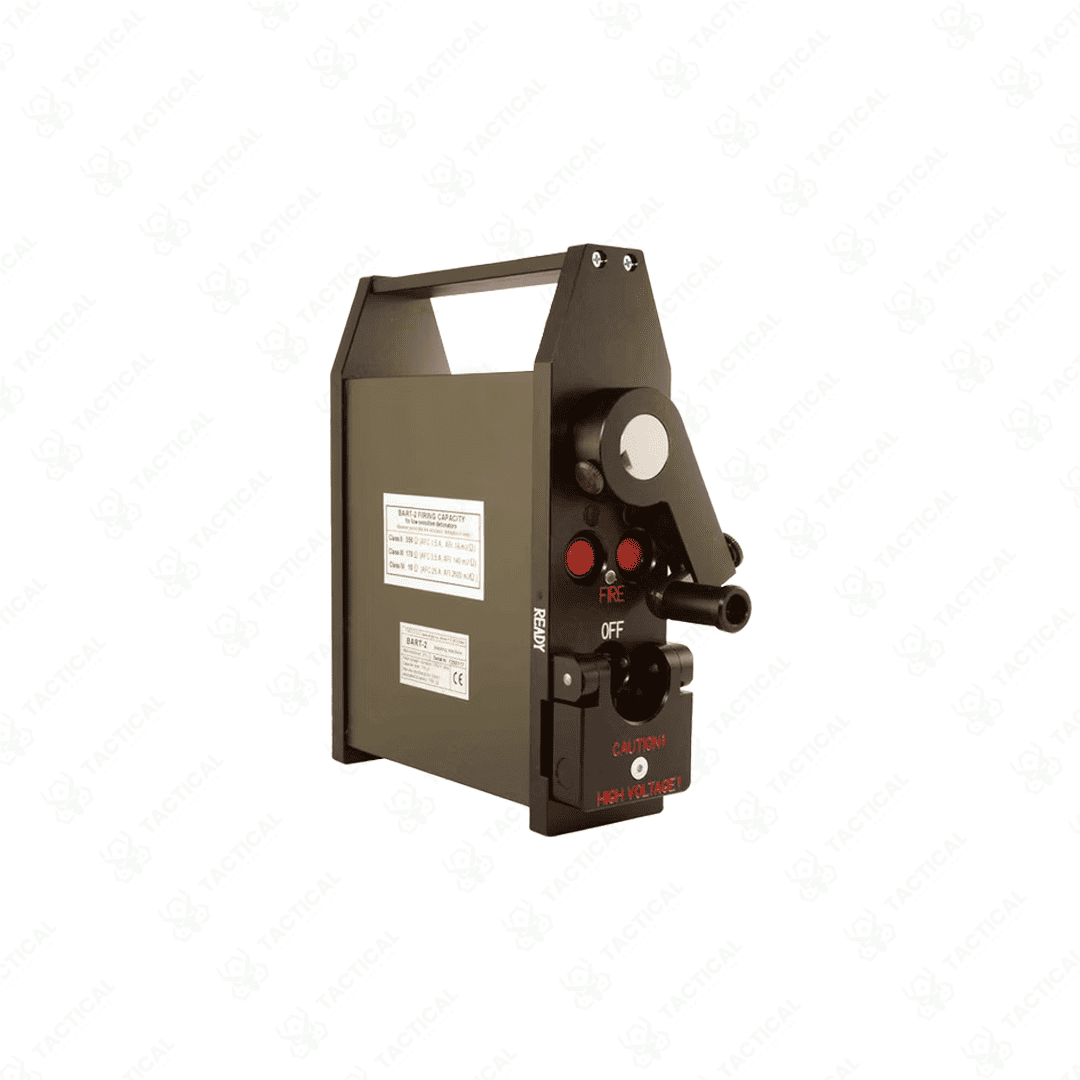

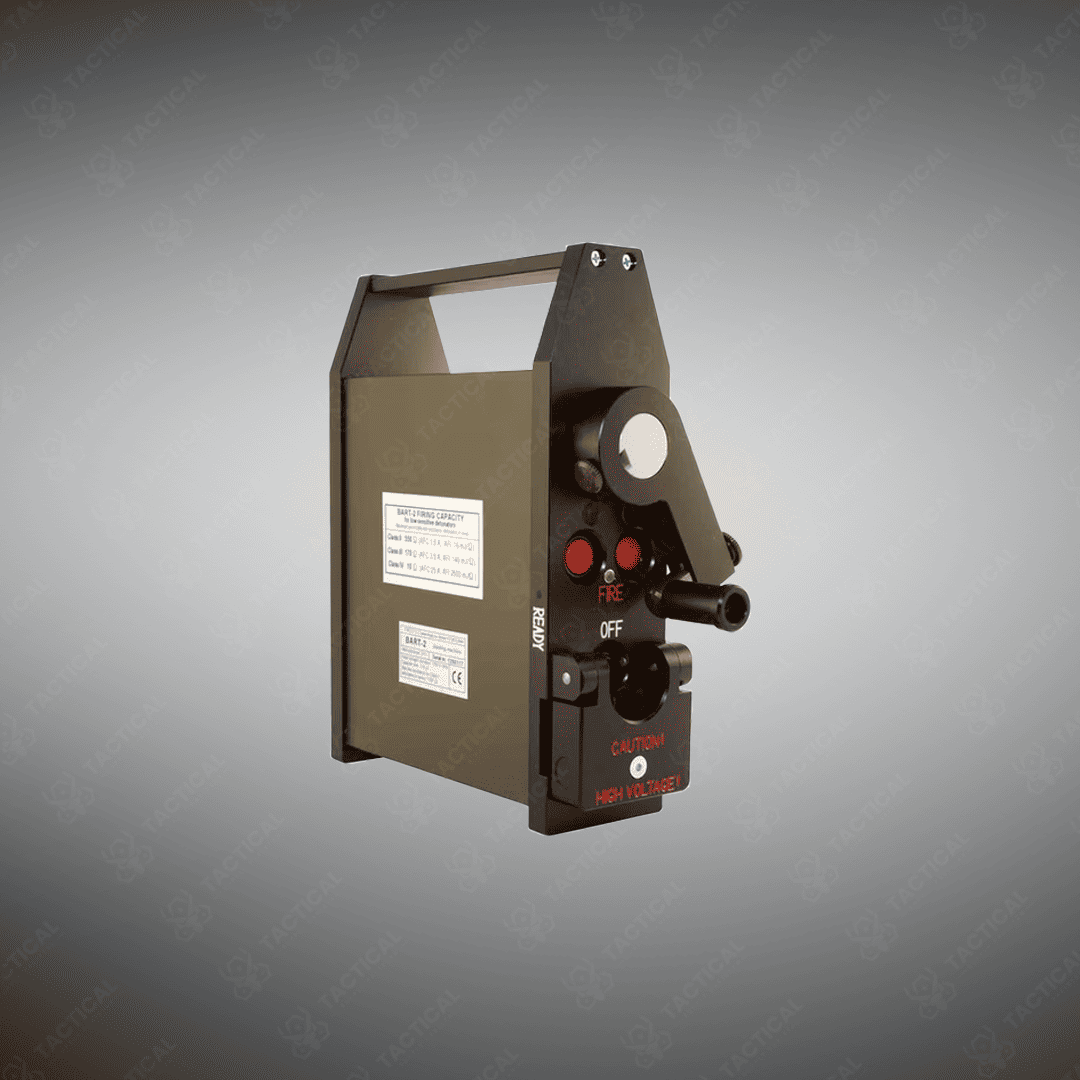

Hand Cranked Blasting Machine – BART‑2: Reliable Detonator Firing in the Field
Hand Cranked Blasting Machine
The Hand Cranked Blasting Machine (BART-2) is a high-energy, manually powered detonation device designed for safe and reliable initiation of electric detonators—particularly those with high insensitivity such as Class C4. Compact and weighing only 1.6 kg, the BART-2 is fully portable and ideal for single-operator use in field demolition or controlled blasting operations. It operates without external power sources, utilizing a hand-cranked generator to charge an internal capacitor that delivers a powerful 1250 V, 88 J impulse.
The Blasting Machine features several mechanical safety mechanisms, including a removable crank handle that can be detached during setup or inspection, preventing unintentional charging. A mechanical safety cover blocks the crank when detonator lines are connected, while dual FIRE buttons must be pressed simultaneously to initiate the blast, reducing the risk of accidental discharge. The aluminum enclosure houses an ON-OFF/L-test switch, firing terminals, capacitor charge indicator LEDs, and supports up to 550 Class 1 detonators with 2 Ω resistance.
The Hand Cranked Blasting Machine is fielded in military demolition units, explosive ordnance disposal teams, and engineering corps conducting obstacle clearance or infrastructure demolition. Its rugged design and IP65 protection rating make it suitable for harsh environments, including high-humidity, wet, or dusty operational zones. With no reliance on batteries or electricity, it offers reliable functionality during remote or emergency missions.
Tactical Supply Pakistan delivers this robust blasting solution to military and defense teams requiring dependable detonation control in mobile and infrastructure-compromised environments.
Can the BART-2 be used in freezing or wet conditions without risk of malfunction?
Yes, the BART-2 is IP65-rated and operates between –20°C to +55°C at full humidity, making it fully functional in rain, snow, or extreme weather conditions.
