Gamma Exposure Scaler-Ratemeter
Handheld gamma radiation scaler-ratemeter with wide-range detection and industrial-grade durability for field and laboratory use.
Key Features:
✔️ Measurement range 0.1 mR/hr – 999.9 R/hr across 7 decades
✔️ Dual energy-compensated GM detectors for accurate gamma detection
✔️ Backlit four-digit LCD with units R/hr, Sv/h, Counts
✔️ Cast aluminum housing with separate battery compartment and handle
✔️ Front-panel rotary switch for fast/slow response and range selection
✔️ Powered by two standard “D” cell batteries, drain ≈35 mA
✔️ Fast response 4–25 s, slow response 4–60 s depending on counts
✔️ Adjustable alert and alarm setpoints with visual and audio indicators
✔️ RS-232 port outputs readings every 2 seconds for remote logging
✔️ Splashproof design tolerates field moisture without full immersion

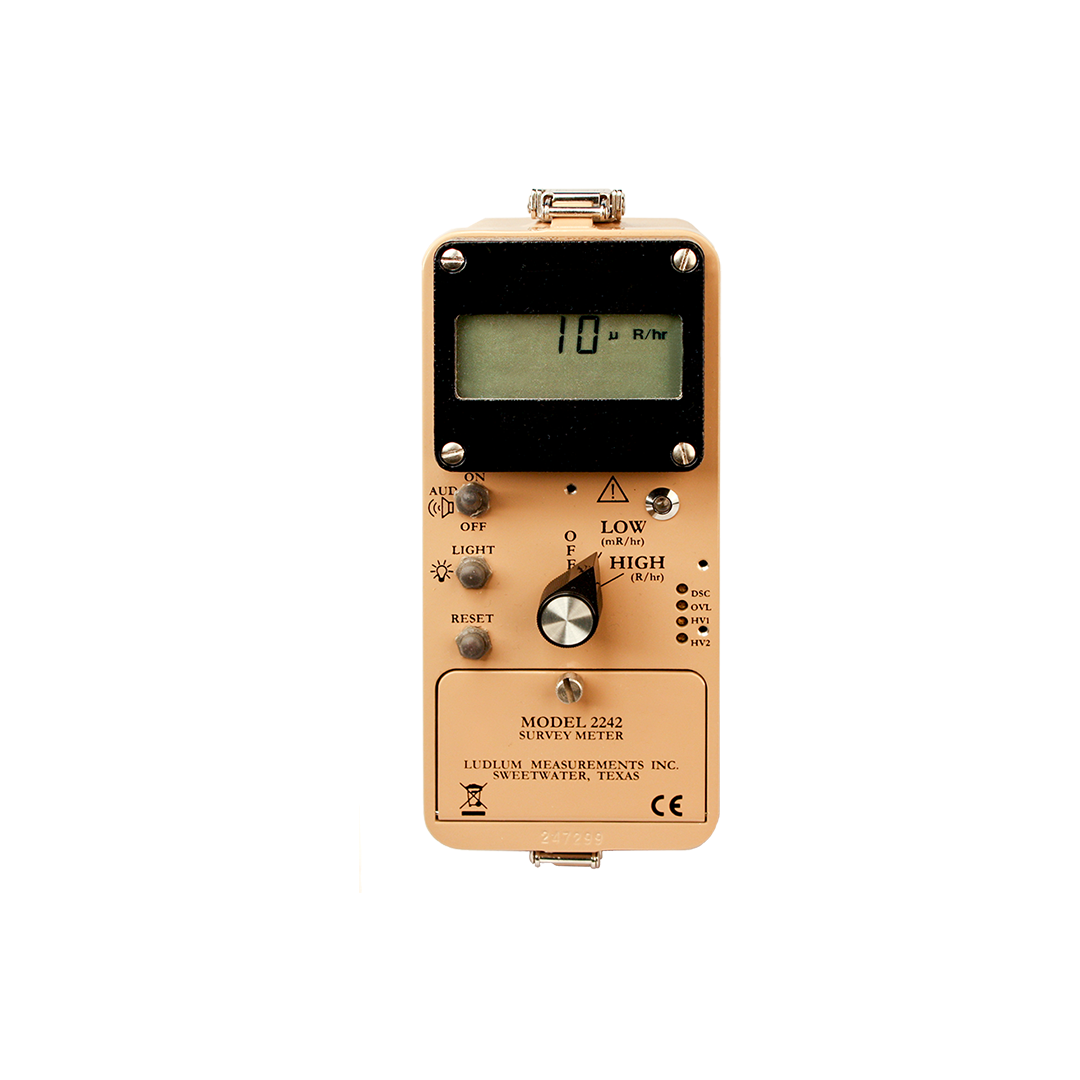

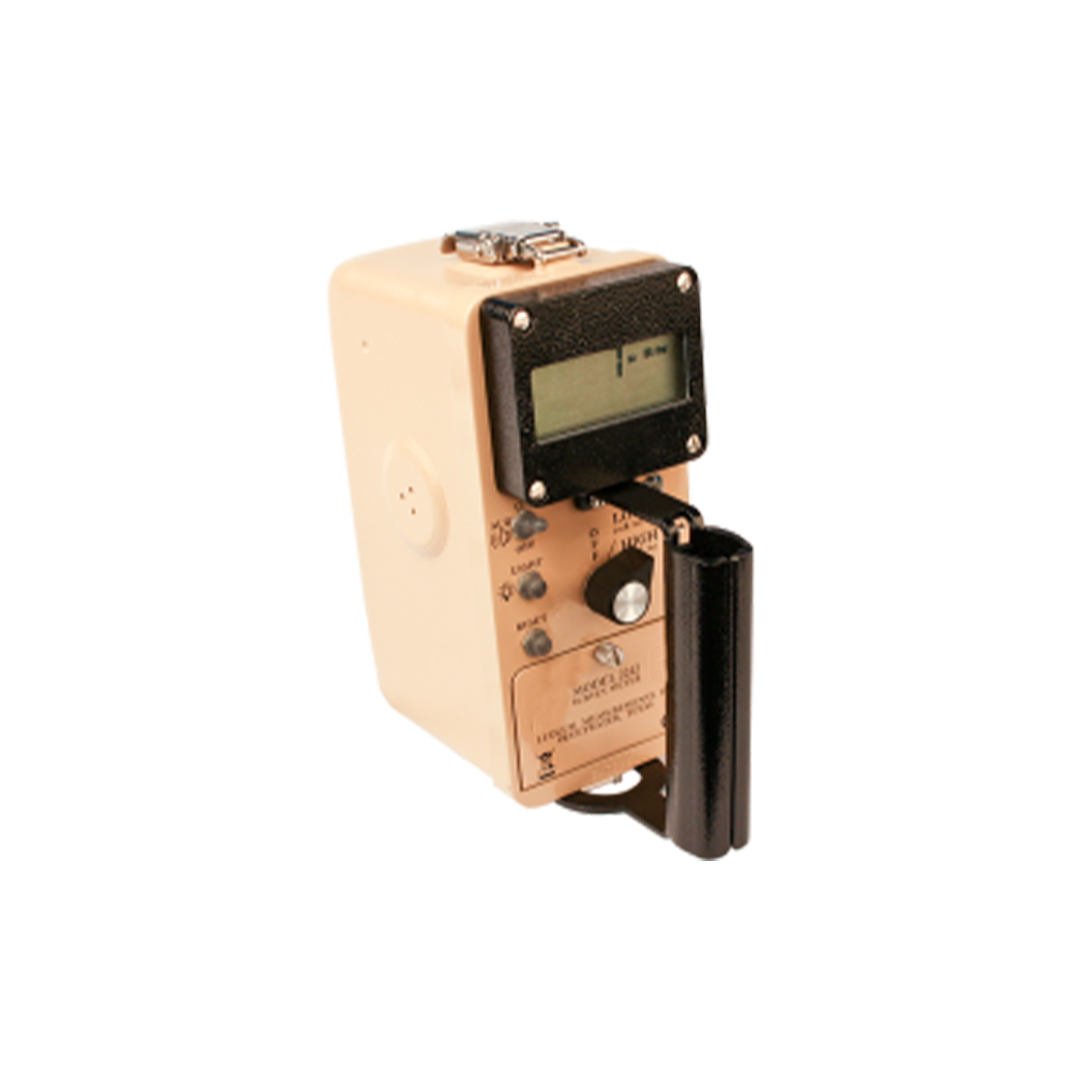

Gamma Exposure Scaler-Ratemeter
The Gamma Exposure Scaler-Ratemeter covers 0.1 mR/hr to 999.9 R/hr across a 7-decade digital display range using dual energy-compensated GM detectors housed internally. A four-digit backlit LCD presents measurement values in selectable units (R/hr, Sv/h, or Counts) with status icons for alarms and operational conditions. The cast aluminum housing with separate battery compartment and metal carrying handle provides industrial-grade durability. Front-panel rotary switch toggles between mR/hr and R/hr ranges, with independent audio on/off and fast/slow response settings for varied radiation environments.
Two standard “D” cell batteries power the instrument with approximately 35 mA current drain and minimum 2.2V operating voltage. Fast response ranges from 4–25 seconds while slow response extends to 4–60 seconds depending on count activity levels. Adjustable alert and alarm setpoints trigger visual indicators and audible warnings when thresholds exceed programmed values. An RS-232 data streaming port exports measurements every 2 seconds for remote monitoring. The count reset pushbutton acknowledges alarms and clears scaler readings. Splashproof design tolerates field moisture without full submersion.
Health physicists deploy the Gamma Exposure Scaler-Ratemeter in nuclear facilities, radiation research laboratories, and emergency response operations. Field teams measure contamination levels on equipment and personnel following potential exposures. The dual-detector configuration simultaneously samples gamma radiation from multiple angles, improving detection reliability in high-background environments. Extended range measurements transition seamlessly from low-dose monitoring to high-radiation survey work without equipment changes.
Tactical Supply Pakistan provides radiation measurement solutions enabling accurate hazard assessment through this portable dual-detector system. Organizations gain reliable exposure documentation for regulatory compliance and personnel safety protocols.
Does the Model 2242 require recalibration before field deployment after extended storage?
Yes, recalibration intervals depend on regulatory requirements and use frequency. Ludlum Measurements maintains a full-service calibration department; procedures are available for customers preferring in-house recalibration verification.
