Flat-Panel Satellite Terminal
A rugged, low-profile flat-panel satellite terminal built for reliable, low-visibility communications in demanding operational environments.
Key Features:
✔️ MIL-STD-810 & 1275 tested – military-grade environmental and power compliance
✔️ Zero moving parts – high reliability, minimal maintenance
✔️ Extreme temperature operation – performs in harsh climates
✔️ Low thermal signature – reduced infrared detectability
✔️ Metasurface beam steering – electronic steering, no mechanics
✔️ Built-in network redundancy – embedded and external modem support
✔️ GNSS-denied capable – maintains links without GPS
✔️ Rugged low-profile design – hardened shroud, CARC, military colors

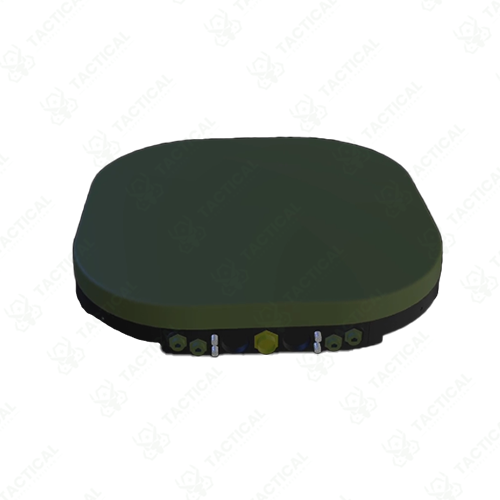

The Flat-Panel Satellite Terminal measures 90 × 90 × 15cm and weighs 56.8kg with full duplex Ku-band electronically steered holographic beamforming array technology. The unit scans 360° azimuth and +15° to +90° elevation without moving parts, eliminating mechanical failure points. Operating temperature range extends from -40°C to +55°C ambient, reaching +70°C with solar load. Power input accepts 12-36 VDC with steady-state consumption of 120W using 20W BUC or 240W with 40W BUC configurations. The system meets MIL-STD-810 environmental and MIL-STD-1275 electrical specifications through extensive field testing.
The metasurface antenna achieves 9.5-12 dB/K G/T ratio at broadside with EIRP reaching 46-49.5 dBW depending on BUC selection. Embedded iDirect 950mp modem provides GEO connectivity while CAT 12 cellular modem delivers 600 Mbps terrestrial backup. Field-swappable cartridges enable mission-specific equipment changes without depot maintenance. Low thermal signature reduces infrared detection probability while CARC coating options and military color configurations minimize visual identification. Software-defined polarization supports both linear and circular modes. Ethernet, Wi-Fi 802.11 b/g/n, and N-type RF connectors provide integration flexibility.

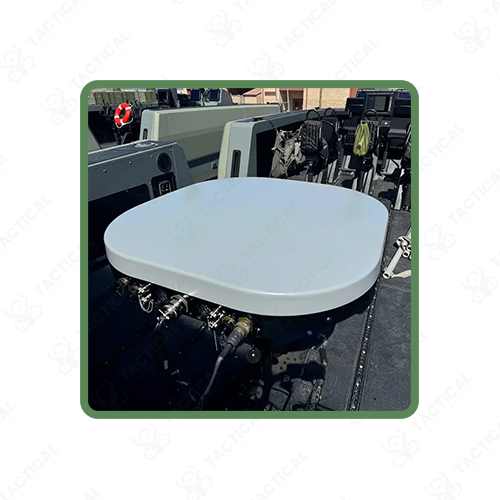

Armored reconnaissance battalions mount the Flat-Panel Satellite Terminal on fighting vehicles for communications-on-the-move during forward operations. Naval special warfare units install the system on rigid-hull inflatable boats for maritime interdiction missions requiring real-time intelligence feeds. Military convoy commanders rely on the terminal for network-on-the-move capability during logistical movements through denied terrain. Border patrol rapid response teams deploy the equipment for establishing temporary command posts in remote sectors. Emergency management agencies use the system during disaster response when terrestrial infrastructure fails.
Tactical Supply Pakistan supplies military-grade satellite communications equipment maintaining connectivity in GNSS-denied and contested electromagnetic environments. The company provides terminals combining multi-orbit capability with redundant network paths for mission-critical operations.
Can the terminal operate while the vehicle is moving?
Yes, the electronically steered antenna tracks satellites during movement without mechanical adjustment. The system maintains connectivity at highway speeds across varied terrain.
