Fixed RF Jamming System
Fixed RF Jamming System is a high-power, software-defined RF jammer built to deliver continuous, wide-area drone suppression for permanent protection of critical sites.
Key Features:
✔️ Ultra-wide jamming coverage: 0.3–7.7 GHz (expandable to 0.2–8 GHz)
✔️ High output power: ≥200 W per band segment
✔️ 360° horizontal and 105° vertical coverage
✔️ GNSS jamming range up to 5 km
✔️ Cellular UAV jamming beyond 1 km
✔️ Software-defined, independently configurable bands
✔️ Strong resistance suppression (up to 10:1)
✔️ IP67-rated for harsh outdoor environments
✔️ Continuous operation for sustained area denial
Fixed RF Jamming System

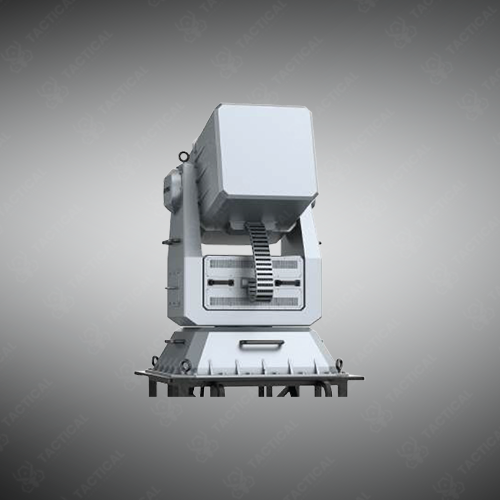

The Skyfend Hunter Max (SHF800) is a high-power Fixed RF Jamming System with an overall weight of 200 kilograms. Its standard jamming frequency band covers 0.3 GHz to 7.7 GHz, expandable from 0.2 to 8 GHz. Output power is a minimum of 200 watts per configured band segment. The system requires an AC power supply of 110V or 220V, with a maximum power consumption of 6000 watts. It carries an IP67 protection rating and operates in temperatures from -40 to +70 degrees Celsius.
This system provides 360-degree continuous horizontal coverage and a vertical pitch coverage of 105 degrees. The jamming distance extends up to five kilometers for GNSS signals and over one kilometer for cellular UAVs. It maintains a countermeasure jamming ratio of 10:1 against standard commercial drones and 1:1 against jamming-resistant models. Each software-defined digital jamming module allows independent configuration of power, waveform, and frequency band. The unit supports continuous countermeasure operation for a minimum of ten minutes.
This Fixed RF Jamming System is deployed as a primary area denial system for strategic fixed sites. It establishes a persistent jamming umbrella over airports, oil depots, and military installations. Operators use it to sever control and navigation links for all drone categories within its radius. The system’s modular architecture and software-defined radio allow for rapid updates against new threats. It forms the ‘jam’ component of a complete detect-identify-jam defense chain when integrated with RF detection systems.
For securing national critical infrastructure against sophisticated drone threats, Tactical Supply Pakistan provides this powerful and scalable jamming solution. Our partnership ensures access to systems configured for evolving regional security requirements.
Can the system’ jamming capabilities be updated after installation?
Yes, its software-defined radio (SDR) architecture allows jamming bands, waveforms, and strategies to be reconfigured via software without hardware replacement
