Evidence Search Laser Instrument
Compact high-power forensic search light system for precise detection, visualization, and targeting of trace evidence and biological materials.
Key Features:
✔️Four integrated laser bands: 365 nm UV, 445 nm blue, 480 nm blue-green, and 532 nm green
✔️High total output power supports rapid evidence scanning on difficult surfaces
✔️Stepless real-time power adjustment for controlled and precise illumination
✔️Optical fiber output enables flexible inspection in confined or complex areas
✔️Built-in status monitoring system detects component and operating anomalies
✔️IPS display shows wavelength, power level, battery status, and temperature
✔️Compatible with visual biological reagents that preserve DNA integrity
✔️Compact benchtop form with internal high-capacity lithium battery for field use
Evidence Search Laser Instrument

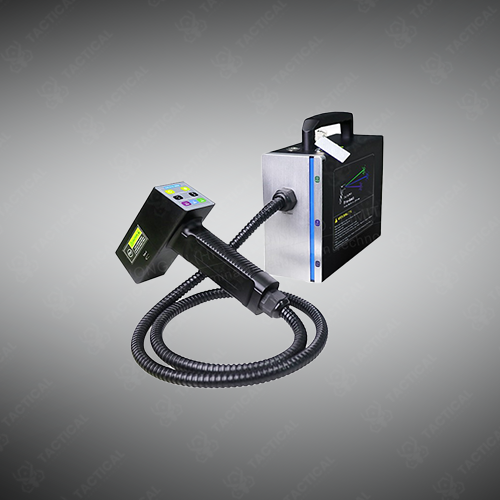

Evidence Search Laser Instrument is a benchtop forensic system measuring 230mm x 85mm x 235mm and weighing 3.5kg. It integrates four wavelength bands: blue 445nm at 24W, green 532nm at 8W, UV 365nm at 6W, and blue-green 480nm at 16W output. The device operates on a 16.8V lithium battery with 21,000mAh capacity for extended fieldwork. A 1.5-inch IPS screen displays wavelength selection, power levels, battery status, and temperature readings during operation. The UV fiber optic cable extends 1.2 meters for flexible positioning.
Stepless power adjustment allows investigators to control light intensity in real-time according to surface material and evidence type. The automatic detection system monitors component functionality and alerts users to operational anomalies through the display screen. Visual biological reagents included with the system react with DNA traces on permeable and non-permeable surfaces, producing targeted fluorescence without damaging genetic material. These reagents work on textiles, wood, stone, cardboard, and cadaver skin where traditional methods fail to reveal biological evidence.
Forensic laboratories employ the Evidence Search Laser Instrument for processing homicide evidence collected from rough surfaces at crime scenes. Military medical examiners use it to identify biological traces on combat equipment and uniform materials submitted for investigation. Naval criminal investigators apply it aboard ships to examine textiles and storage compartments where biological evidence may exist. Airforce security teams utilize the portable design at aircraft maintenance facilities to detect unauthorized biological contamination.
Tactical Supply Pakistan ensures that forensic professionals access laboratory-grade equipment previously unavailable in regional markets. Their technical support assists agencies in maximizing instrument capabilities during complex investigations.
Does battery capacity support remote location deployments?
Yes, the 21,000mAh battery provides several hours of continuous multi-wavelength operation, sufficient for processing multiple evidence items at locations without electrical infrastructure.
