Data Cut-out Filter System
Data Cut-Out Filter System is a secure, maintenance-free power filtering solution protecting IT equipment from interference and unwanted signals in sensitive environments.
Key Features:
✔️ Multi-Socket Options: Available in 1, 3, 5, or 8 sockets
✔️ High Attenuation: 60 dB insertion loss from 100 kHz–1 GHz
✔️ Isolated Grounds: Three separate grounds for secure IT operation
✔️ EMI/RFI Suppression: Reduces high-frequency interference and radiated coupling
✔️ Fan-Free Design: Thermally optimized for quiet, reliable performance
✔️ Shielded Power Cable: 2 m earthed plug for stable connection
✔️ Certified Compliance: CE, EU RoHS, and EC Reach approved
✔️ Infrastructure Ready: Ideal for banks, hospitals, legal offices, and public authorities
✔️ Maintenance-Free Operation: Continuous, reliable protection
Data Cut-out Filter System

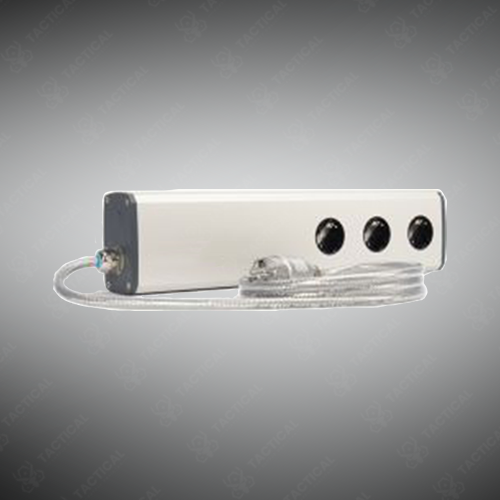

The Data Cut-out Filter System prevents unauthorized data extraction through power network lines using patented DCO filtering technology. The device features a multiple socket outlet with three isolated ground receptacles rated for 230 VAC/50 Hz Schuko connections. Asymmetrical minimum insertion attenuation reaches 60 dB across the frequency range of 100 kHz to 1 GHz in 50-ohm systems. The special housing structure suppresses radiated coupling between filter input and output sides in higher frequency ranges. A fixed shielded supply cable measures 2 meters in length with a specialized two-pin earthed plug.
The thermally optimized design operates without noise-producing fans for silent performance in office environments. Maintenance-free network separation ensures reliable operation without periodic servicing or component replacement. Data transmitted over supply cables becomes completely unusable after DCO filtering, with no possibility of reconstruction or content analysis. The system provides configurations with 1, 3, 5, or 8 socket options depending on equipment density requirements. CE conformity, EU RoHS Directive compliance, and EC Reach Regulation certification confirm regulatory adherence.
Public authorities deploy the Data Cut-out Filter System for protecting classified information systems from power line data interception attacks. Finance and banking institutions install these filters on trading terminals and secure transaction processing workstations. Healthcare facilities use the system for patient record systems in hospitals, health insurers, and medical practices requiring HIPAA compliance. Notary offices and legal firms protect client confidentiality through filtered power supplies on document management systems. Auditors, tax consultants, and insurance companies secure financial data from sophisticated electronic eavesdropping methods.
Tactical Supply Pakistan supplies data security equipment addressing electromagnetic emanation threats that conventional cybersecurity measures cannot prevent. The company recognizes that power line data leakage represents a critical vulnerability in information protection strategies.
Does the filter affect the normal power supply to connected equipment?
No, the system maintains standard 230VAC power delivery while filtering data signals. Connected IT equipment operates normally without performance degradation.
