Countersurveillance Sweeping System
Wideband handheld sweeping system for detecting covert RF transmitters, wiring-borne signals, and infrared emissions across extensive frequency ranges.
Key Features:
✔️ Wideband coverage 9 kHz–12 GHz for multi-signal sweep tasks
✔️ Fast scan rate 3–4 GHz/s enabling rapid spectrum updates
✔️ Handheld unit 33.5 × 26 × 6 cm, weight 3.6 kg
✔️ USB connection to any Intel Core i3+ laptop/tablet
✔️ Three RF antenna inputs plus dedicated probe interface
✔️ Detects GSM/3G/4G/LTE/5G, Wi-Fi, Bluetooth, DECT, and RF bugs
✔️ Multifunction probe checks AC, telephone, Ethernet, and IR channels
✔️ Sensitivity rated 20–50× higher than conventional sweepers
✔️ Audio demodulation: FM, AM, USB, LSB, CW with 3–240 kHz bandwidth
✔️ Guard 24/7 mode logs up to 24 GB/day with real-time spectrogram tools
Countersurveillance Sweeping System

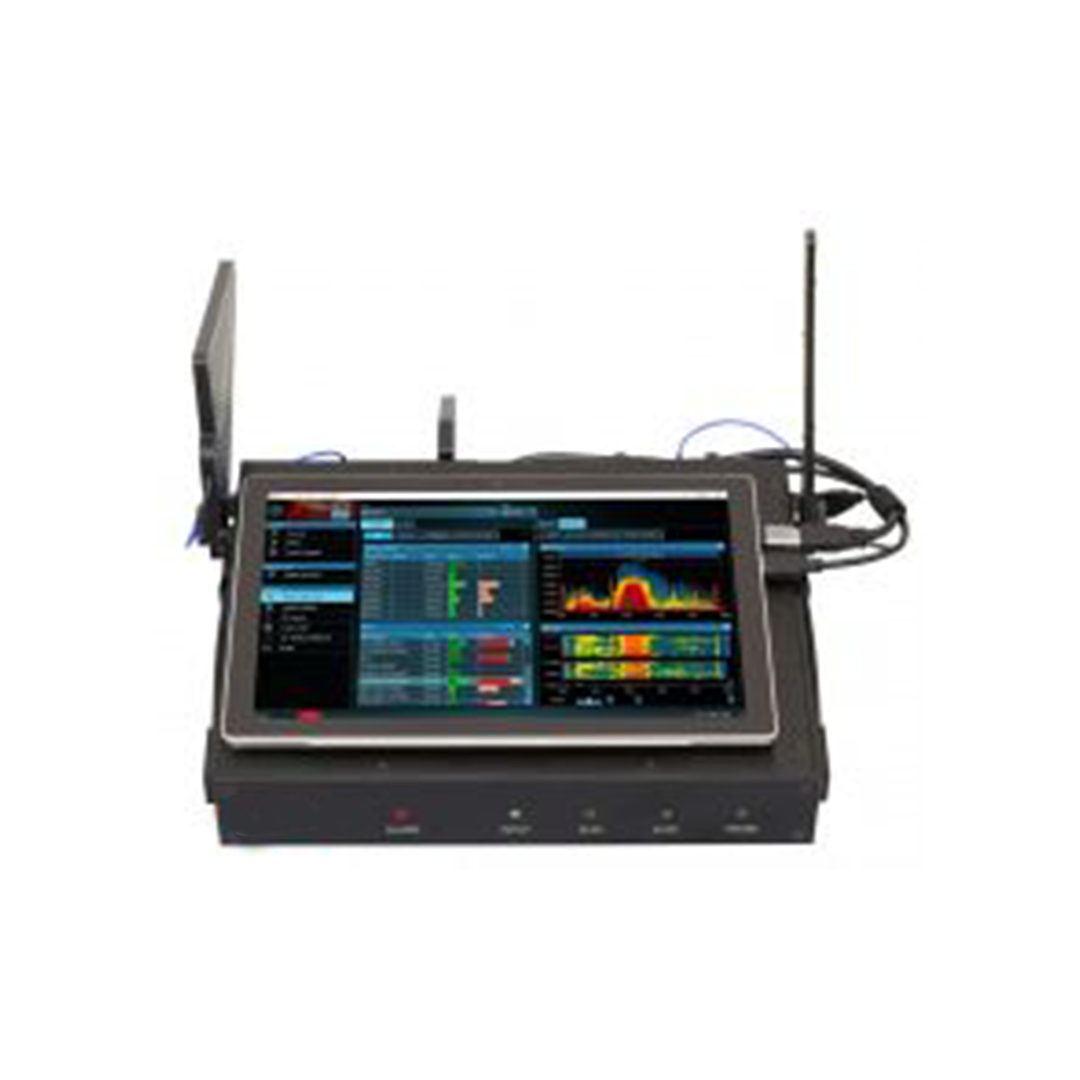

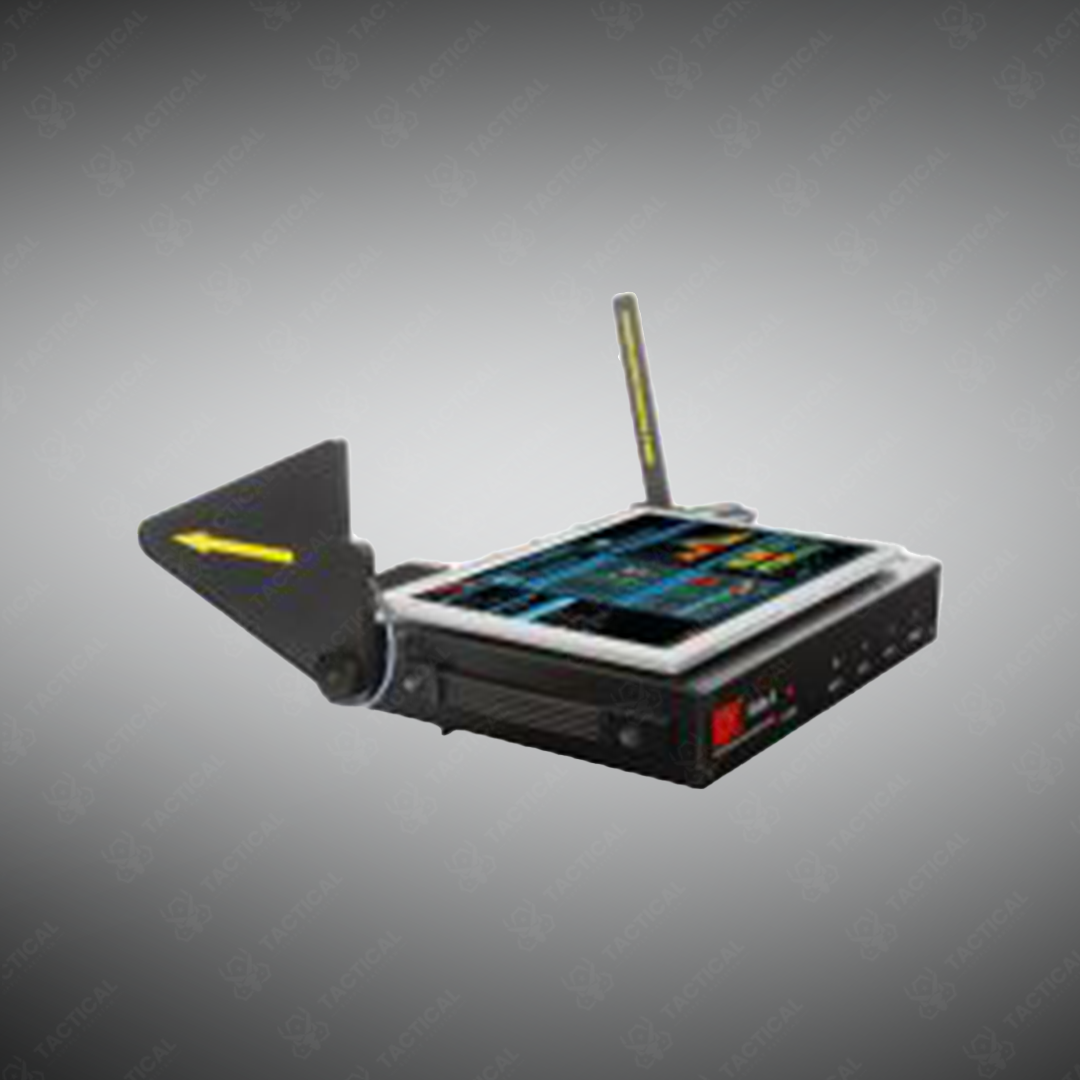

The Countersurveillance Sweeping System operates across 9 kHz to 12 GHz with a 3–4 GHz per second update rate. The handheld unit measures 33.5 × 26 × 6 cm, weighs 3.6 kg, and connects via USB to any Intel Core i3 or higher laptop/tablet with magnetic holder attachment. Three antenna inputs and a dedicated probe input accommodate wideband detection tasks.
The system detects RF listening devices, GSM/3G/4G/LTE/5G transmitters, Bluetooth, Wi-Fi, and DECT signals simultaneously. A multifunction probe identifies illegal transmission through AC, telephone, and Ethernet wiring plus infrared frequencies. The unit offers 20–50 times higher sensitivity than conventional RF detectors with 3–4 second reaction time. Audio demodulation supports FM, AM, USB, LSB, and CW modes with adjustable bandwidth from 3–240 kHz, while real-time spectrum analysis displays data via Spectrogram and Waterfall graphs.
Security personnel deploy the Countersurveillance Sweeping System in corporate office sweeps, executive protection details, and facility security checks. Operators search for hidden bugs, inspect telephone lines, and locate GPS trackers in vehicles. The Guard 24/7 mode monitors RF environments continuously with data logging under 24 GB daily, while locating mode pinpoints transmitter positions via visual and audio notifications.
Tactical Supply Pakistan delivers advanced countersurveillance solutions meeting professional security standards through this portable system. Law enforcement, corporate security teams, and government agencies rely on its threat detection capabilities without requiring extensive operator training.
What happens when the system detects a dangerous signal during 24-hour Guard mode?
The alarm relay output activates, triggering preset external devices like CCTV activation or alert notifications. Simultaneously, the signal logs with frequency, bandwidth, danger level, and peak level data for later forensic analysis and report generation.
