C-UAV Acoustic Detector
A passive 122-microphone acoustic detection system that identifies, classifies, and locates drones up to 500 meters with high accuracy where radar falls short.
Key Features:
✔️ 122-microphone passive acoustic array for non-emissive UAV detection
✔️ Detects drones up to 500 m with high sensitivity
✔️ 95% detection probability under 65 dBA ambient noise
✔️ ≤1 false alarm / 24 hours for reliable perimeter monitoring
✔️ 90% UAV type identification using acoustic fingerprint database
✔️ Real-time localization via multi-channel triangulation
✔️ 24/7 continuous operation with low power consumption
✔️ Composite weather-resistant housing preserves acoustic performance
✔️ Deployable on fixed sites or mobile security platforms
✔️ Effective where radar is limited or jammed, ideal for airports & critical facilities
C-UAV Acoustic Detector

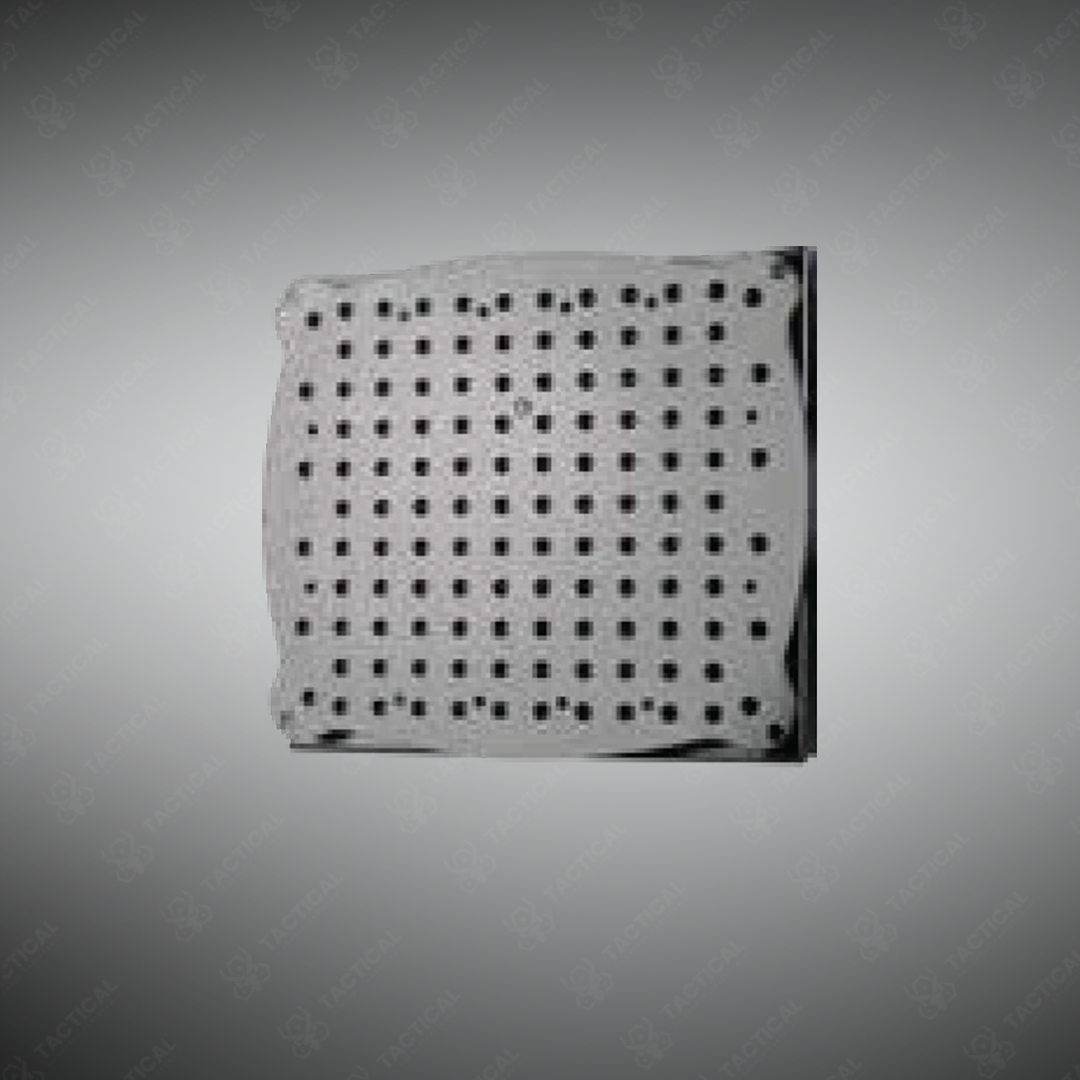

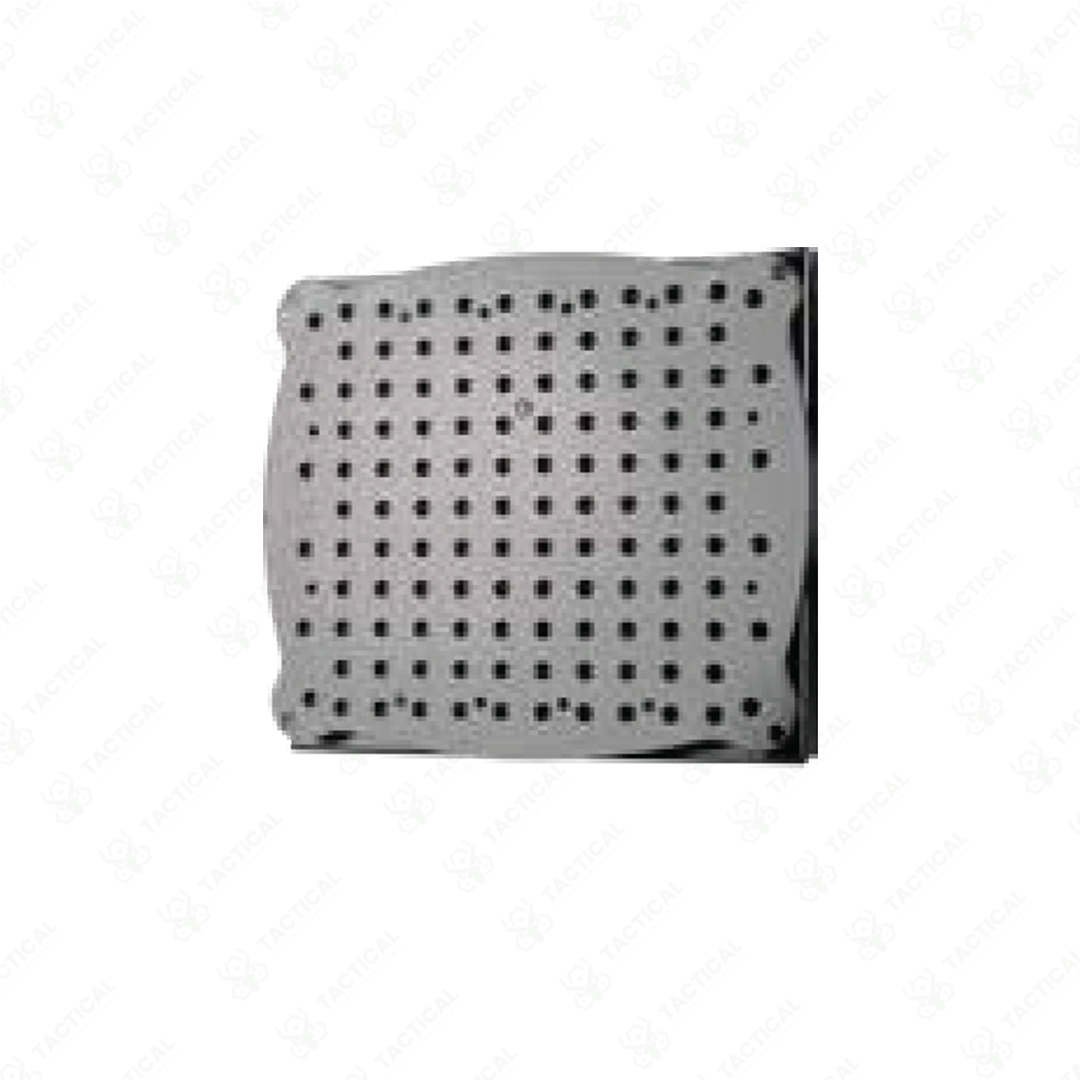

The RU122X C-UAV Acoustic Detector employs a 122-microphone array architecture operating on passive acoustic detection principles. The device weighs 3 kilograms and maintains a maximum detection range of 500 meters. Its sensor array captures airborne acoustic signatures unique to rotorcraft propulsion systems. The microphone elements are housed within a perforated composite enclosure designed for environmental protection while maintaining acoustic sensitivity.
Detection performance reaches a 95% probability under 65 dBA ambient conditions with a constant false-alarm rate capped at one per 24-hour cycle. The system identifies UAV types with 90% accuracy through acoustic fingerprint matching against an embedded reference database. Real-time localization pinpoints drone position coordinates through triangulation across the microphone array. Power consumption allows continuous 24/7 operation without active cooling requirements.
The C-UAV Acoustic Detector deploys effectively at airport perimeters, critical infrastructure sites, and border checkpoints where radar blind spots exist. The acoustic approach bypasses electronic countermeasures targeting RF-based detection systems, proving invaluable against jamming-equipped adversaries. Security teams mount the system on fixed installations or mobile platforms for temporary coverage in high-threat zones.
Tactical Supply Pakistan offers this system as a foundational component within layered counter-drone defense architectures. The acoustic detection methodology complements radar and RF sensors by addressing coverage gaps inherent in traditional surveillance systems.
Can the RU122X distinguish between different commercial and military UAV models?
Yes, the system recognizes specific acoustic signatures from various platforms with 90% classification accuracy. Each drone type produces distinctive rotor-blade harmonics that the algorithm catalogs and matches against operational databases.
