Axle Counting Camera
Axle Counting Camera – Image-based vehicle classification system delivering automated axle counting, lift axle detection, and EUR-13/FHWA categorization for toll roads and weight enforcement with line scan technology.
Key Features:
✔️ Intelligent image-based axle and vehicle classification supporting EUR-13, FHWA, and customizable vehicle classes
✔️ Dual-optics design with 3× optical zoom for detailed line-scan capture and wide overview imaging

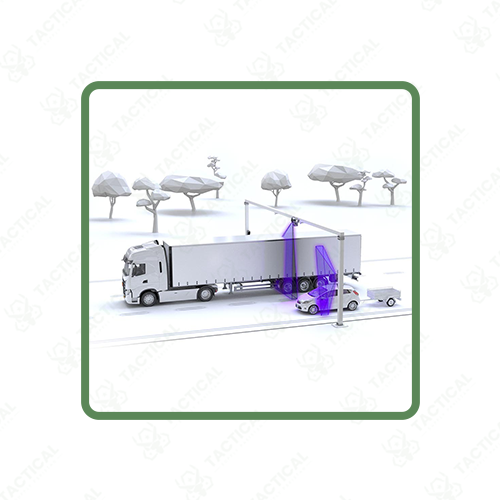

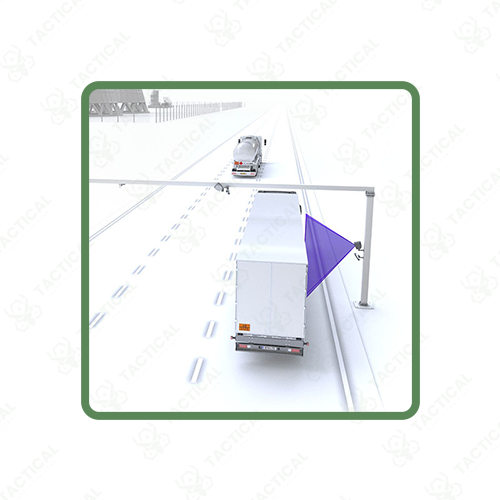

✔️ Side-scan and overview imaging for full vehicle situational awareness
✔️ Multiple built-in triggers ensuring no vehicle goes undetected
✔️ On-board AI processing for standalone edge operation with no external server required
✔️ Detects twin, lifted, and retractable axles for accurate classification
✔️ IP67 weatherproof and IK10 vandal-resistant housing for all-weather outdoor use
✔️ Mixed illumination system (infrared + white LEDs) for day and night operation
✔️ Generates rich metadata including axle count, spacing, and vehicle type for analytics
✔️ Optimized for tolling, traffic management, compliance, border control, and logistics applications
Axle Counting Camera

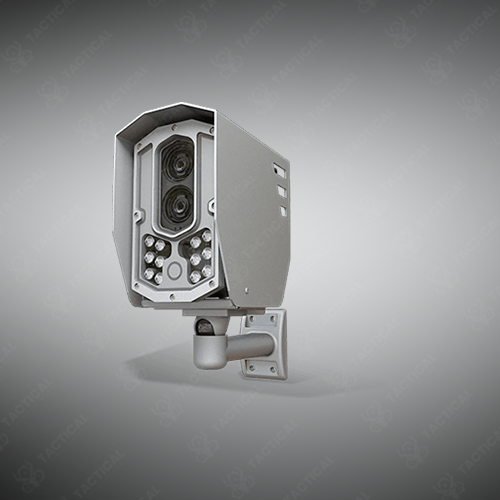

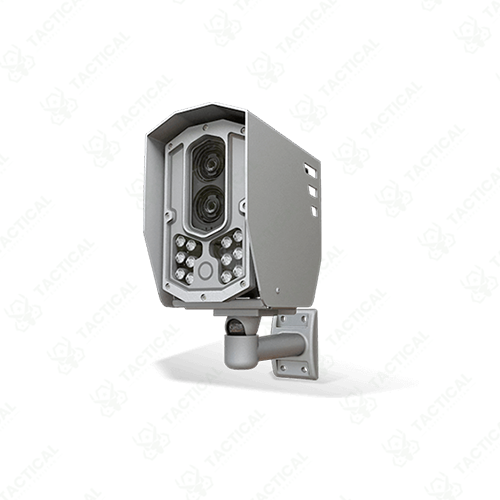

The Axle Counting Camera integrates dual-optics architecture featuring 3x optical zoom lenses with line scan imaging capabilities. The primary sensor produces continuous side-profile scans regardless of vehicle length while the secondary camera captures standard overview images. Onboard AI processors analyze axle positions, inter-axle distances, and vehicle structure for automatic classification. The IP67 and IK10-rated enclosure provides weatherproof and vandal-resistant protection. Mixed illumination combines 850nm infrared and white LED arrays for imaging across all lighting conditions.
Built-in triggering mechanisms include laser beam interruption and software-based detection ensuring zero missed vehicles. Local storage with encryption enables standalone operation without constant network connectivity. The system detects twin-wheel configurations and identifies retractable axles whether operational or lifted. Classification outputs support EUR-13 standards, FHWA categories, and customizable schemes based on axle count and spacing measurements. Three-year manufacturer warranty covers continuous 24/7 operation.
Toll collection authorities deploy the Axle Counting Camera at highway revenue points where lifted axle detection prevents classification fraud from heavy goods vehicles. Military logistics bases use the system for tracking convoy axle configurations at weigh stations monitoring overloaded transport vehicles. Naval shipyard gates implement the camera for cargo truck classification determining loading dock assignments based on vehicle dimensions.
Tactical Supply Pakistan delivers this classification system to infrastructure operators managing distance-based charging schemes and weight compliance programs. The company provides calibration services for aligning axle detection algorithms with regional vehicle standards.
Can the system accurately count axles on vehicles traveling at highway speeds?
Yes, line scan technology captures complete vehicle profiles at high speeds with axle detection algorithms processing inter-axle spacing and wheel configurations for accurate classification.
