Airborne GNSS Spoofing System
Airborne GNSS Spoofing System is a lightweight airborne GNSS deception module designed to hijack hostile drone navigation through precise, low-power spoofing from aerial platforms.
Key Features:
✔️ Airborne GNSS spoofing across 1150–1280 MHz band
✔️ Effective spoofing range from 0.1 to 5 km
✔️ >90% success rate against mainstream UAVs
✔️ Proven effectiveness vs quad-array anti-jamming drones
✔️ Fast startup with <1-minute deployment time
✔️ Directional and omnidirectional antenna modes
✔️ Fine power control with 100 dB adjustable range
✔️ Compact 1.5 kg design for UAV mounting
✔️ IP65 rugged build for harsh environments
Airborne GNSS Spoofing System

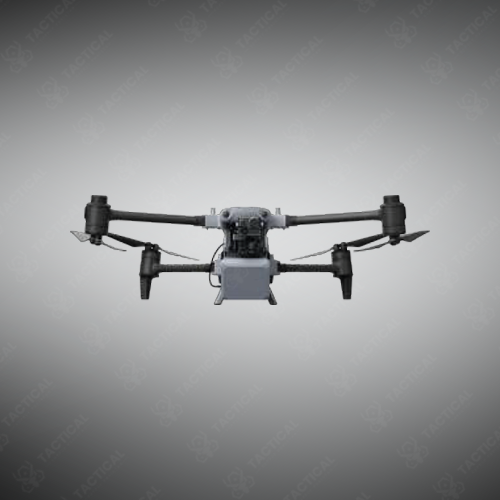

The Skyfend Spoofer Air (SSA100) is a compact Airborne GNSS Spoofing System weighing 1.5 kilograms. Its dimensions are 118mm by 128mm by 62mm. The unit operates on a DC power supply between 12 and 28 volts, consuming under 30 watts. It carries an IP65 protection rating and functions in temperatures from -40 to +70 degrees Celsius. The spoofing module offers power adjustment over a 100 dB range with one dB steps. This system generates spoofing signals across the 1150 to 1280 MHz frequency band. Its output power reaches 30 dBm, or one watt. The effective operational range spans from 0.1 to five kilometers.
Startup and preparation time is under one minute, with a typical activation sequence of ten seconds. Signal time synchronization is accurate within 100 nanoseconds. The unit achieves a 100% success rate against drones with quad-array anti-jamming antennas. The system’s overall spoofing success rate against mainstream drone models is over 90 percent. It supports seamless switching between directional and omnidirectional antenna modes. This feature allows for flexible airspace control and minimizes interference with friendly electromagnetic assets.

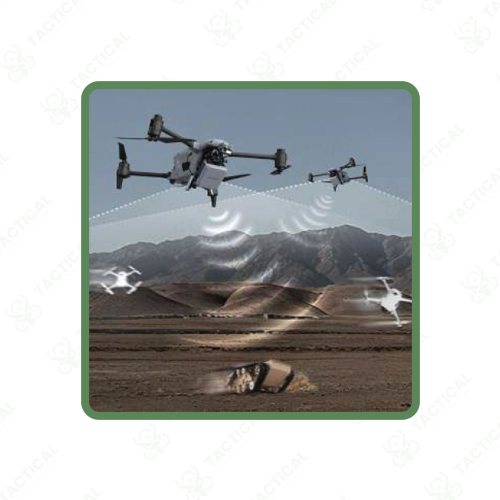

This Airborne GNSS Spoofing System is mounted on aerial platforms to execute navigational deception missions. It performs localized, fixed-point, and tracking spoofing against hostile drones. Security forces deploy it for beyond-visual-range, low-power engagements to minimize detection. This system is critical for protecting borders, energy infrastructure, and military perimeters from drone intrusions. Its single-source spoofing technique overcomes the limitations of ground-based multi-source systems. The module supports both factory integration and field retrofitting onto various UAVs.
Tactical Supply Pakistan supplies this advanced electronic warfare payload, enabling clients to establish dominant low-altitude control with a mobile spoofing capability. Our procurement network ensures verified access to this specialized countermeasure technology for integrated defense solutions.
What type of drone targets is the Spoofer Air most effective against?
It is specifically designed to counter drones equipped with advanced multi-array anti-jamming and anti-spoofing GNSS antennas.
