Advanced Multifunction Broadband TDR
High-performance Time Domain Reflectometer (Time Domain Reflectometer) systems for diagnosing cable faults, testing broadband networks, and performing precise line quality analysis in field environments.
Key Features:
✔️ Wide-ranging cable fault location for telecom, CATV, broadband, and LV networks
✔️ Advanced diagnostics including Power Spectral Density, crosstalk, and noise analysis
✔️ Auto fault find and dBRL impedance change analysis for rapid troubleshooting
✔️ Dual cursors and marker functions for precise distance measurement
✔️ PC connectivity for waveform export, storage, and post-analysis reporting
✔️ Rugged IP54 field-ready construction for harsh site conditions
✔️ Range Plus and SuperStore memory for trace storage and comparison
✔️ Optional mains blocking filters for safe low-voltage network testing
Advanced Multifunction Broadband TDR

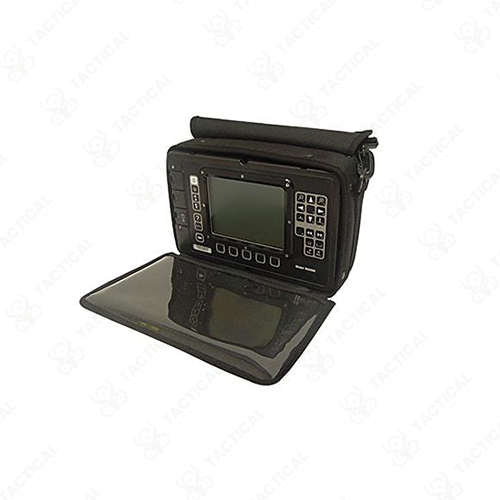

The Advanced Multifunction Broadband Time Domain Reflectometer systems deliver comprehensive cable diagnostics combining time domain reflectometry with bridge testing and network analysis capabilities. The 6000DSL model features Power Spectral Density measurement, wideband crosstalk analysis, and noise profiling for POTS, ISDN, HDSL, and ADSL line qualification. Its Range Plus function stores multiple waveforms while SuperStore memory enables comparative analysis between baseline and fault conditions. The unit performs dBRL impedance change calculations to quantify fault severity.

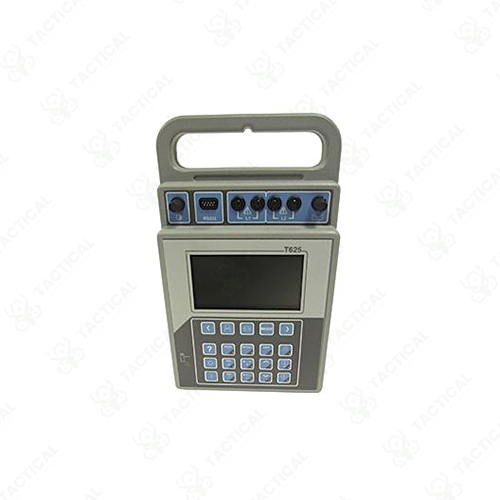

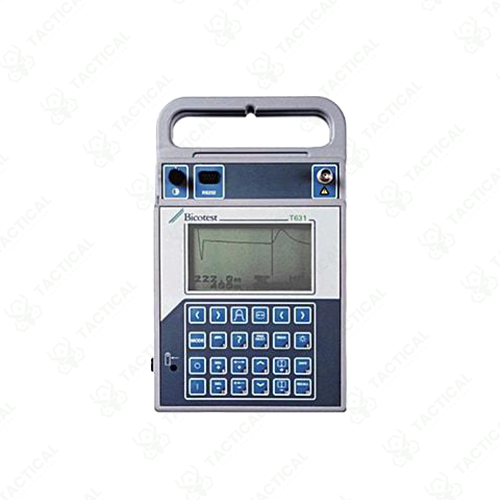

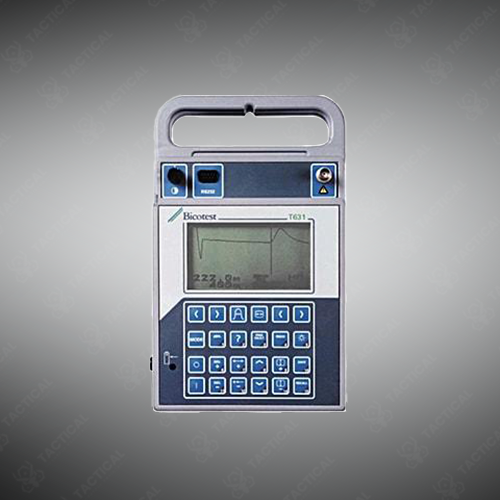

The T631 variant employs a genuine 2-nanosecond shaped pulse generator with dual cursor support for precise distance measurement on CATV and power cable networks. IP54-rated enclosures protect internal circuitry from dust and moisture during outdoor deployments. The T625 long-distance model extends fault detection range across extended telecom runs exceeding standard Time Domain Reflectometer capabilities. All units include PC connectivity for waveform export and post-analysis documentation. Rechargeable battery systems support full-shift operation. Optional mains blocking filters enable testing on energized low-voltage networks.
Telecommunication service providers deploy the Advanced Multifunction Broadband TDR for pre-activation line qualification verifying copper pair integrity before DSL provisioning. Military communication units utilize these instruments to troubleshoot field-installed coaxial cables connecting tactical operations centers. Naval shipboard technicians employ Time Domain Reflectometer analysis locating faults in antenna feedlines and internal distribution cabling where access limitations complicate visual inspection. Airforce base communication squadrons maintain cable plants serving radar installations and control towers using automated fault-finding routines that reduce diagnostic time.
Tactical Supply Pakistan maintains inventory of these diagnostic platforms with compatible blocking filters and test accessories supporting legacy equipment operators.
What does Power Spectral Density measurement reveal about line quality?
Power Spectral Density analysis displays frequency-dependent noise levels across the operational bandwidth, identifying interference sources and crosstalk that degrade broadband signal-to-noise ratios but remain invisible to basic resistance or continuity testing methods.
