Acoustic Disperser
A high-power non-lethal acoustic control system designed for long-range voice broadcast and crowd dispersal during law enforcement and emergency response operations.
Key Features:
✔️ High-Intensity Acoustic Output up to 152 dB at 1 meter
✔️ Long-Range Voice Projection with intelligibility up to 100 meters
✔️ Wide Frequency Response: 300 Hz – 8000 Hz for clear announcements
✔️ Parabolic Waveguide Design for focused directional sound projection
✔️ Multiple Configurations: portable, rotating platform, and vehicle-mounted units
✔️ Motorized Rotation Capability up to 380° horizontal / 180° vertical coverage
✔️ Integrated DSP Audio System with digital media playback
✔️ Multi-Power Compatibility: utility power, 12V or 24V vehicle supply
✔️ Optional Camera & LCD Control Interface for monitoring and command use
✔️ All-Weather Operation across −40°C to +50°C environments
Acoustic Disperser

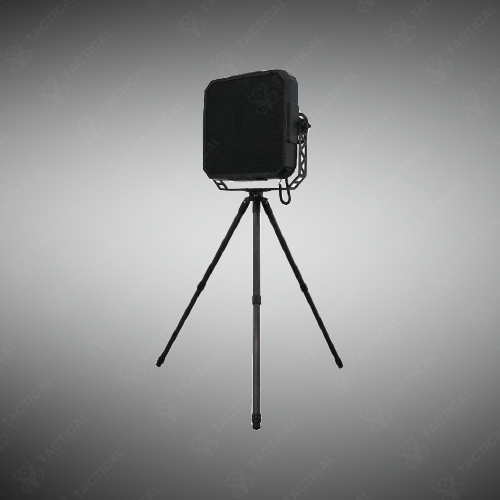

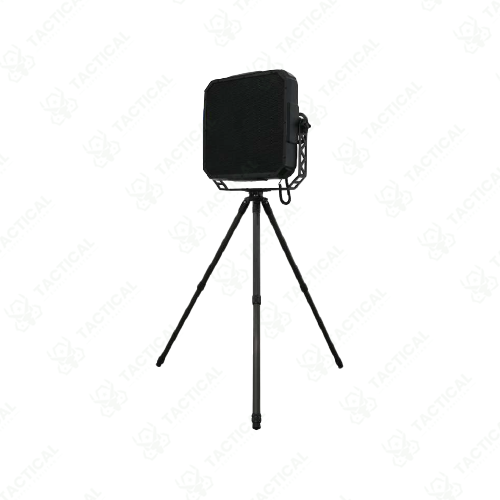

The Acoustic Disperser is a non-contact, non-lethal sound wave dispersion system available in three configurations — YSX-400-02B, YSX-800-01C, and SQS-800-01C. The YSX-400-02B uses a carbon fiber shell measuring 620×620×235mm, weighing ≤25kg, with a parabolic waveguide surface, TDA-series integrated digital chip, and solid-state DSP multimedia player. It delivers 152±2dB at 1 meter and 135±2dB at 10 meters, with voice intelligibility of 86.3% at 100 meters. Power input supports utility, 12V, or 24V car supply up to 400W maximum.

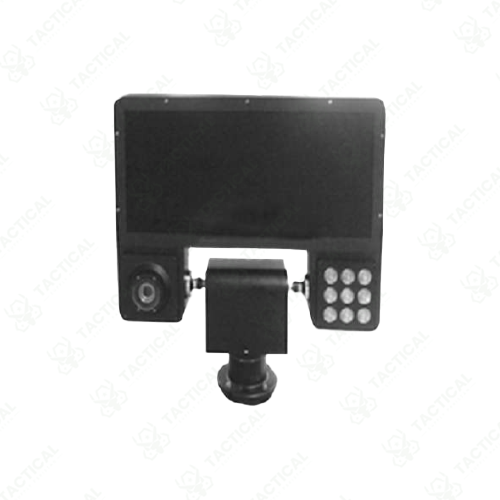

The YSX-800-01C is a vehicle-mounted unit weighing 55kg with 380° horizontal and 180° vertical rotation at 4 RPM, peak output of 148dB at 1 meter, and a 1200W amplifier capacity. It includes a 2-megapixel camera, 7-inch LCD controller, and frequency response spanning 300Hz–8000Hz. The SQS-800-01C is a rotating platform unit under 30kg with a 200mm disperser, ≥138±2dB peak output, effective dispersal range of 15–75 meters, and identical 380°/180° rotation on DC12V across -40°C to +50°C.
Law enforcement and civil defense units deploy the Acoustic Disperser during riot dispersal, unauthorized assembly management, emergency broadcasts, and perimeter security. Vehicle-mounted variants serve nighttime crowd control, disaster relief coordination, and police scene monitoring with simultaneous audio output and camera documentation.
For government agencies requiring verified non-lethal crowd management technology, Tactical Supply Pakistan supplies all three configurations with consultation covering deployment range, mounting options, and power compatibility for specific field applications.
What is the effective voice transmission range under real wind conditions?
The YSX-400-02B achieves a voice transmission index of 0.6 at 400 meters in wind speeds ≤2m/s, while the SQS-800-01C maintains effective dispersal between 15 and 75 meters, with performance varying by terrain and output power level.
