6 Hours Surveillance VTOL Drone
Long‑endurance VTOL surveillance platform delivering 6‑hour flights, heavy payload capacity, and long‑range encrypted transmission for professional reconnaissance missions.
Key Features:
✔️ 6‑hour endurance with Li‑ion smart batteries at 1 kg payload
✔️ 2.5+ hours flight carrying full 15 kg mission loads
✔️ VTOL canard design with 8 lift motors + 1 propulsion motor
✔️ Failsafe hover recovery after dual opposite‑side motor failure
✔️ 6 m wingspan, 68 kg MTOW supporting 15–20 kg sensor payloads
✔️ Carbon‑fiber composite airframe with IP45 weather protection
✔️ 100+ km COFDM link on 845 MHz / 1.4 GHz with AES‑128 encryption
✔️ 1080p real‑time video with stable long‑range transmission
✔️ Redundant avionics with dual CAN‑bus and modular electronics
✔️ Triple IMU system enabling stable autonomous flight and GNSS‑loss holdover

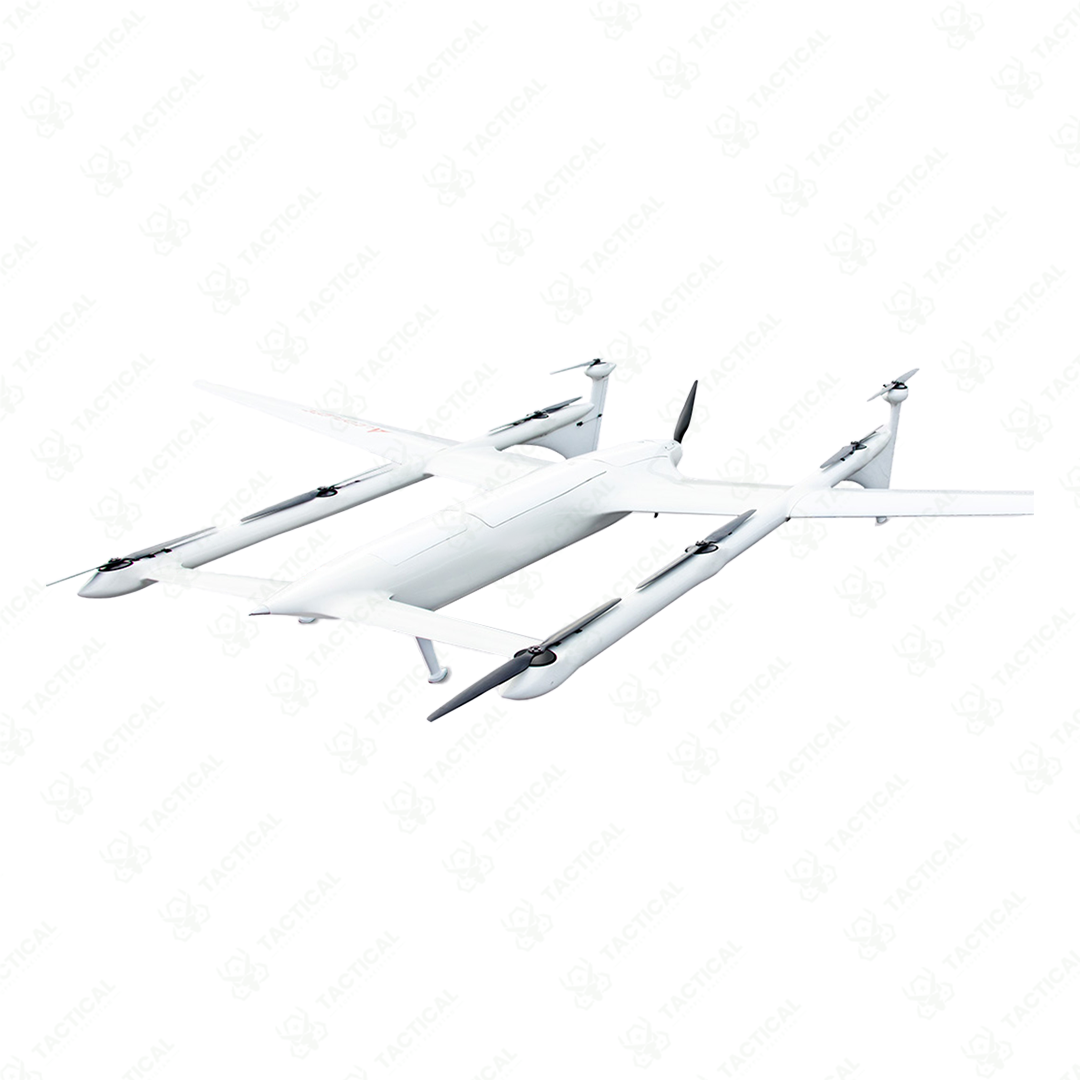

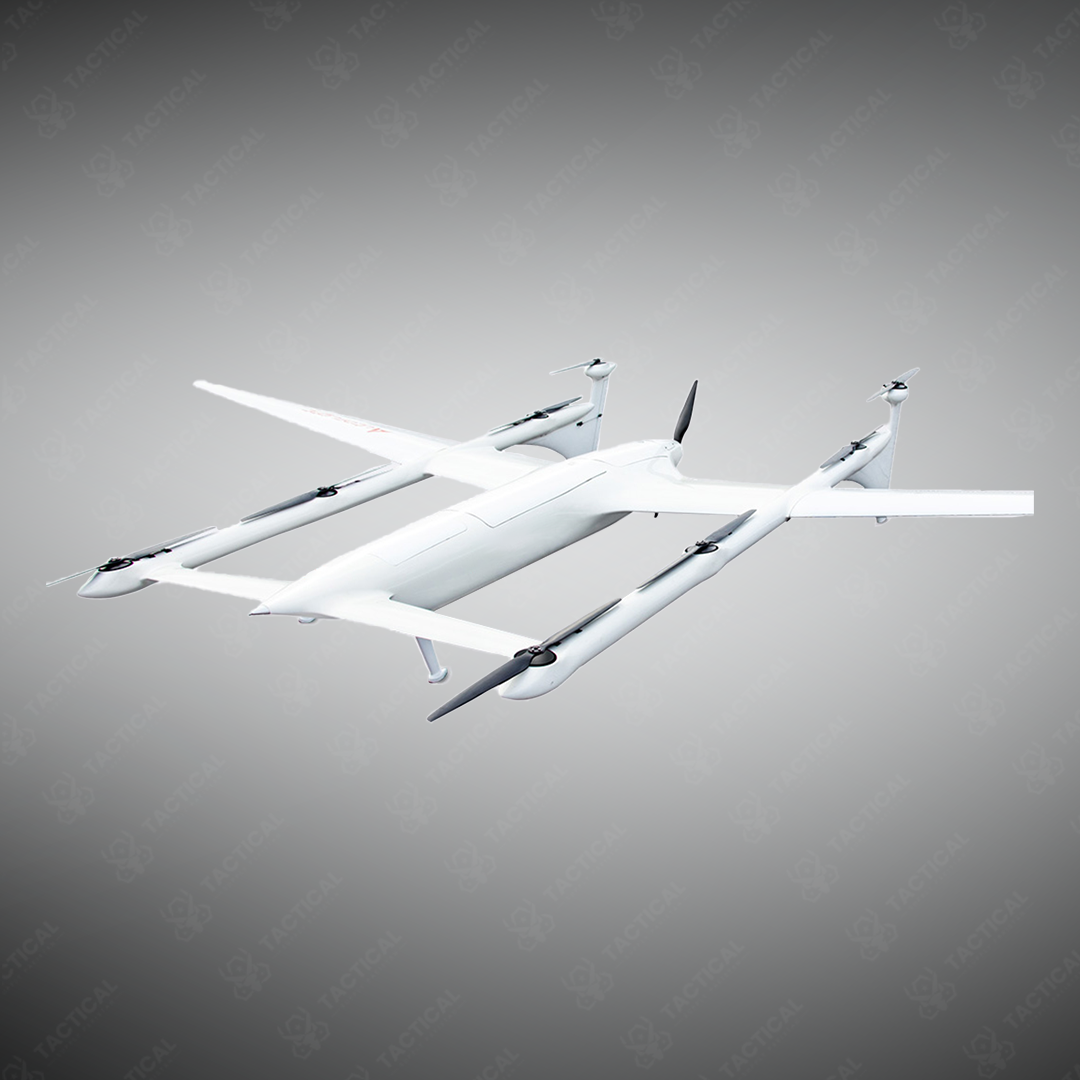

6 Hours Surveillance VTOL Drone
The 6 Hours Surveillance VTOL Drone spans 6 meters in wingspan with canard aerodynamic design and weighs 29 kilograms empty. Eight vertical-lift brushless motors and one propulsion motor enable hover recovery following dual-motor failure on opposite sides. Maximum takeoff weight reaches 68 kilograms supporting 15 to 20 kilogram sensor payloads depending on battery configuration. Construction comprises 95-percent carbon fiber composite and 5-percent glass fiber layup for corrosion resistance and structural efficiency. IP45 weather rating permits operations across minus 20 to plus 60 degrees Celsius temperature extremes.
Lithium-ion battery assemblies with intelligent battery management provide 6-hour endurance at 1-kilogram payload or 2.5-plus hours with 15-kilogram mission loads. Onboard dual-redundant CAN bus architecture with replaceable independent avionic modules ensures continuous operation following component faults. Dual-frequency COFDM data transmission on 845-megahertz and 1.4-gigahertz channels maintains 100-plus kilometer video range with 1080-pixel resolution and AES-128 encryption. Three independent inertial measurement units support autonomous flight modes with five-minute GNSS signal-loss holdover.
Government surveillance agencies deploy the 6 Hours Surveillance VTOL Drone for extended area reconnaissance and persistent border monitoring without ground personnel rotation. Mapping contractors execute large-scale cadastral surveys and topographic documentation across 500-kilometer operational ranges. Disaster assessment teams acquire real-time damage assessment and infrastructure status imagery during emergency response phases. Environmental monitoring programs track wildlife population movements and habitat changes across expansive protected areas. Utility companies inspect transmission line corridors and substation equipment across service territories.
Tactical Supply Pakistan provides this endurance-class surveillance platform to government agencies and commercial operators requiring extended airborne presence and real-time video transmission over continental distances.
How does triple-redundant navigation support 500-kilometer solo operations without communication loss?
Dual-GNSS antennas with inertial navigation provide autonomous route tracking during 5-minute datalink interruptions. Autonomous flight modes execute pre-programmed survey missions without operator intervention across entire coverage areas.
