3-axis Portable Magnetometer Survey Kit
An ultra-lightweight, single-person portable magnetometer system for rapid field surveys in UXO detection, geophysics, and geological investigations.
Key Features:
✔️ Two 3-axis Fluxgate sensors in carbon fiber tube for high-precision measurements
✔️ Lightweight 1.6 kg design with ergonomic handle for handheld operation
✔️ Integrated 1-button data logger with SD card for autonomous recording
✔️ Internal or external GPS for accurate georeferencing of survey data
✔️ Live 2 Hz data output via SENSYS smartphone app for real-time monitoring
✔️ 200 Hz sampling rate with 2 GB memory for detailed survey coverage
✔️ Rugged protective case for safe transport and storage
✔️ Compatible with MagDrone DataTool and MAGNETO® software for post-processing
3-axis Portable Magnetometer Survey Kit

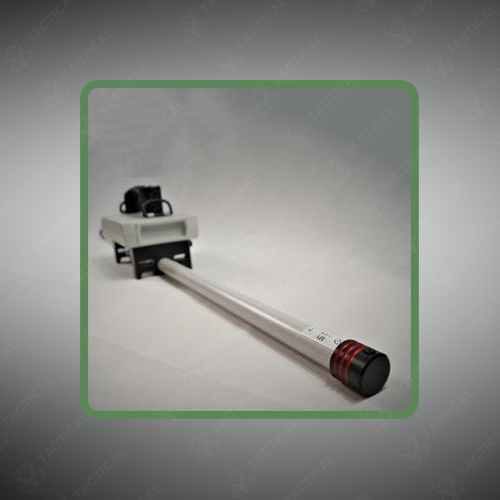

The MagWalk 3-axis Portable Magnetometer Survey Kit features a carbon fiber sensor tube measuring 1,070 x 22 millimeters containing two FGM3D/100 fluxgate sensors positioned horizontally parallel with 1,000 millimeter center-point spacing. Total system weight reaches 1,600 grams including the 11.1-volt 1,950 milliampere-hour lithium-ion rechargeable battery. Each sensor operates across ±100,000 nanotesla specified measurement range with three-axis data capture at 200Hz sampling rate. The integrated data logger dimensions span 230 x 128 x 43/73 millimeters with 2GB internal storage capacity.

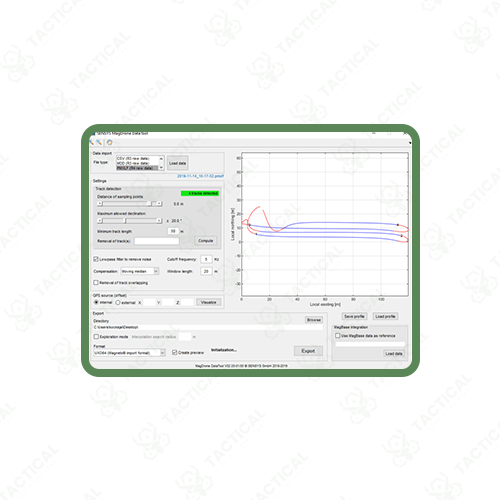

The one-button logger interface features on/off and start/stop controls with status LED indicators. U-Blox PAM-M8Q GPS module provides internal positioning capability with optional external GPS interface available. The system draws 500 milliamperes overall power consumption with 50 milliamperes for logger operation. Operating temperature spans -20°C to +50°C. Remote smartphone application enables 2Hz live readings displaying individual sensor axes, absolute values, and real-time graphs for field verification. MagDrone DataTool software downloads and converts raw data into formats compatible with MAGNETO, MATLAB, GIS, and other processing platforms.
Archaeological researchers deploy the MagWalk 3-axis Portable Magnetometer Survey Kit for pedestrian surveys across historic battlefields detecting buried ferrous artifacts and ordnance remnants. Geophysical consultants use it for rapid reconnaissance mapping of utility corridors before comprehensive vehicle-based survey mobilization. Environmental site assessors employ the system for contaminated property investigations locating buried drums and underground storage tanks. Unexploded ordnance technicians conduct detailed clearance verification surveys using it in areas inaccessible to wheeled equipment platforms.
Tactical Supply Pakistan provides lightweight handheld detection systems for survey professionals requiring portable high-sensitivity magnetic gradient measurements during small-scale and medium-scale field investigation projects.
How does the 1,000 millimeter sensor spacing improve detection capability compared to single-sensor configurations?
Dual sensors calculate vertical magnetic gradient by subtracting simultaneous readings, eliminating regional magnetic field variations and enhancing localized anomaly detection. The 1-meter separation optimizes sensitivity to buried objects at typical 0.5-3 meter depths while rejecting distant geological interference.
