2D Phased Array and Infrared Detection Solution Radar
Dual-mode system combining 2D AESA radar and EO/IR tracking for wide-area drone detection and classification.
✔️ 360° coverage | 2.5 km drone detection (RCS 0.2) | 4 km vehicle ID
✔️ Target lock-on in under 4 seconds
✔️ K-band AESA radar with FMCW waveform
✔️ Angle accuracy < 0.5 mrad | Distance resolution: 3 m
✔️ AI fusion (12-core ARM + 2048-core GPU) with 98% UAV recognition
✔️ 75 mm IR thermal lens | 48x optical zoom | Full HD EO camera
✔️ Weight: 30 kg | IP66-rated | Operates from -40°C to +60°C
✔️ Standalone operation or networked integration
2D Phased Array and Infrared Detection Solution Radar
2D Phased Array and Infrared Detection Solution Radar is a dual-capability system that integrates 2D phased array radar with electro-optic infrared technology to deliver uninterrupted 360° aerial surveillance. It achieves drone detection at 2.5 km (RCS 0.2) and vehicle identification at up to 4 km, with the ability to lock onto a target within 4 seconds. Designed for full-environment operability, it supports simultaneous airspace scanning and target classification without radio frequency reliance.
This system utilizes a K-band AESA radar with FMCW waveform for highly accurate detection, providing angle accuracy below 0.5 mrad and distance resolution of 3 meters. The onboard AI unit processes real-time sensor fusion using a 12-core ARM processor and 2048-core GPU, achieving over 98% recognition accuracy for UAV targets. The built-in electro-optical and thermal cameras offer full HD daylight imaging and long-range infrared tracking with a 75mm thermal lens and 48x optical zoom capability.

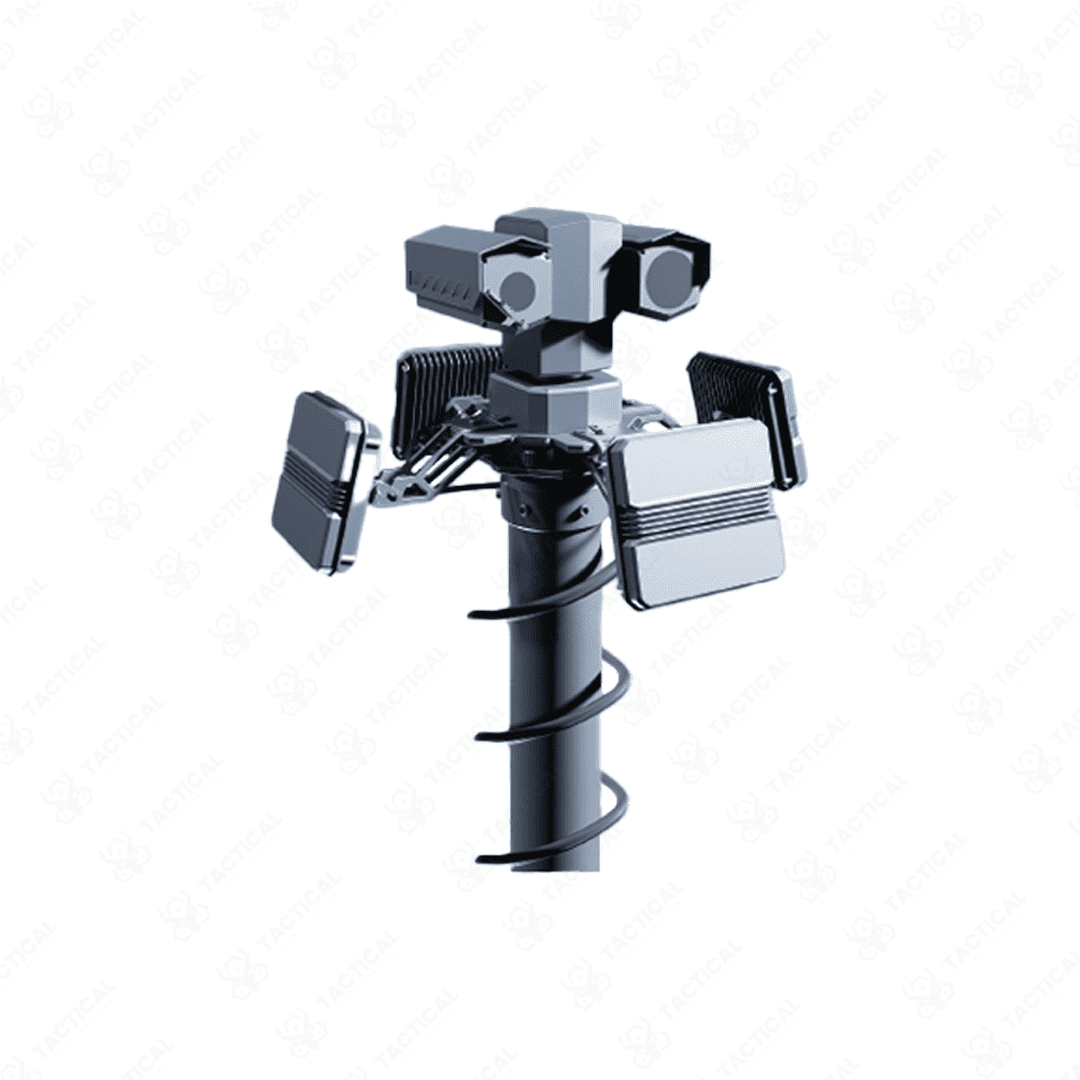

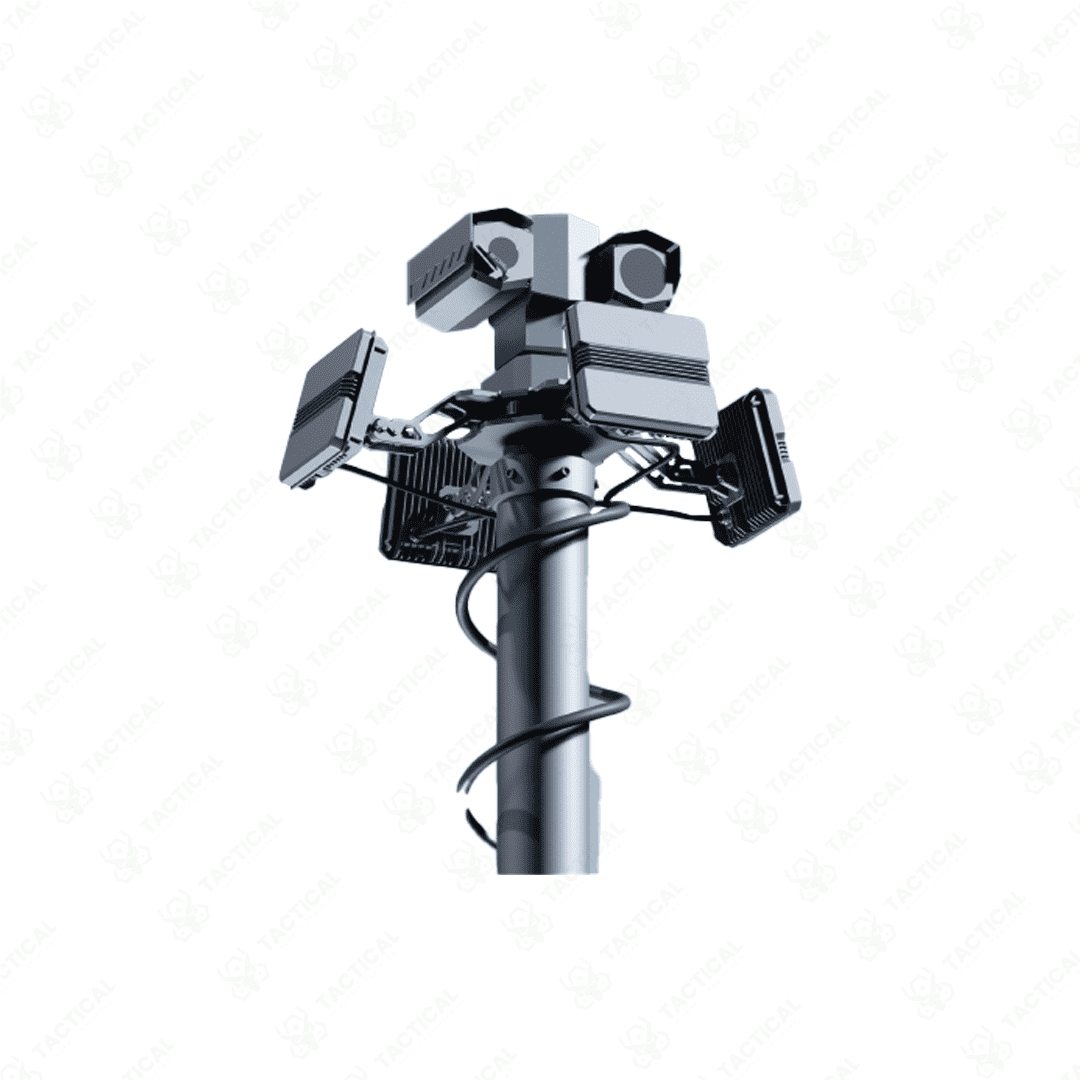

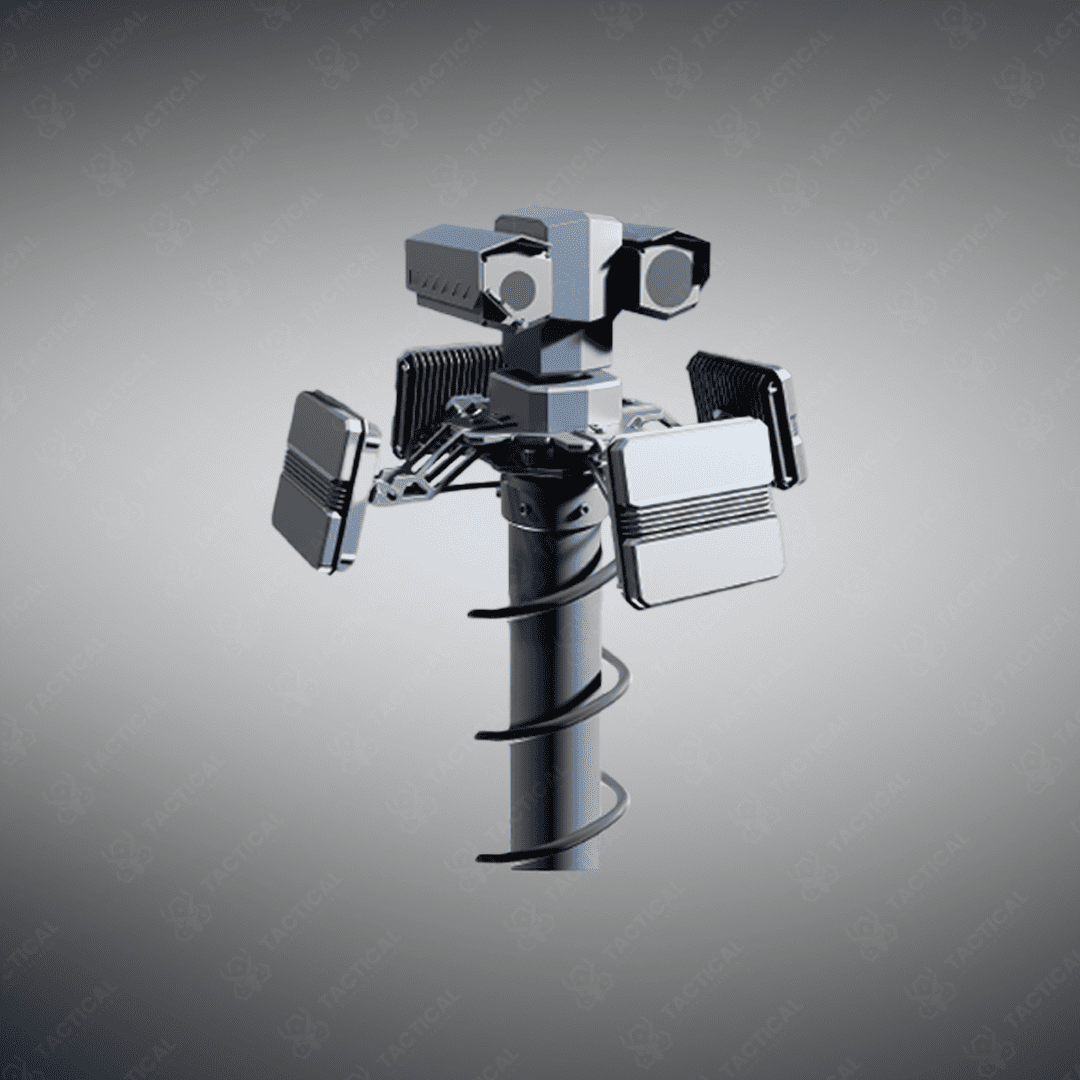

2D Phased Array and Infrared Detection Solution Radar is deployed at critical infrastructure, borders, or military installations for persistent drone detection, identification, and guidance of countermeasure systems. Its mast-mounted, 30 kg frame allows flexible placement and coverage integration. With IP66 protection and operational stability from -40°C to +60°C, the system is purpose-built for demanding outdoor conditions.
Tactical Supply Pakistan provides this all-in-one radar and optical detection unit as part of its comprehensive anti-drone defense suite, combining sensor depth, AI recognition, and real-time tracking into a field-tested solution for high-risk environments.
Can this system operate in standalone mode without other jamming equipment?
Yes, it functions independently for detection and visual tracking but can be networked with other systems for integrated drone neutralization.
