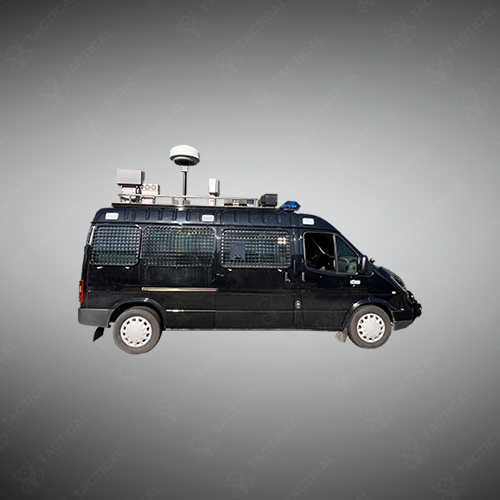

Vehicle-Mounted Drone Defense System
Vehicle-Mounted Drone Defense System is a high-mobility counter-UAS solution designed to detect, track, and neutralize unauthorized drones while on the move or at temporary checkpoints.
Key Features:
✔️ Wideband UAV detection across 20 MHz to 6 GHz
✔️ Long-range drone detection up to 5–10 km, depending on terrain and environment
✔️ High-accuracy direction finding with 3° RMS precision
✔️ Simultaneous detection and tracking of up to 40 drone targets
✔️ Multi-band RF interference covering control and video transmission links
✔️ Effective jamming radius of up to 5 km for area protection
✔️ Vehicle-mounted design for rapid relocation and flexible deployment
✔️ Rugged IP66-rated construction, operating from -40°C to +65°C
Vehicle-Mounted Drone Defense System
The Vehicle-Mounted Drone Defense System monitors frequencies from 20MHz to 6000MHz with detection ranges between 5 and 10 kilometers depending on terrain and target characteristics. This platform tracks up to 40 simultaneous threats with 3-degree RMS direction finding accuracy. The system weighs 125 kilograms or less, allowing installation on light tactical vehicles and security patrol trucks. Seven interference bands cover 400MHz, 800MHz, 900MHz, 1.6GHz, 2.4GHz, 5.2GHz, and 5.8GHz with a 5-kilometer jamming radius that creates mobile exclusion zones during transit.
Power consumption peaks at 2000W when all detection and countermeasure modules operate simultaneously. IP66 sealing protects internal circuits from mud, dust, and high-pressure water spray during off-road deployment. Operating temperature range spans -40°C to +65°C, accommodating winter mountain operations and summer desert patrols. The modular architecture allows configuration adjustments based on mission profiles, with operators selecting detection-only, jamming-only, or combined capability setups.
Presidential motorcades integrate the Vehicle-Mounted Drone Defense System into advance security vehicles that sweep routes before VIP passage. Military convoys position these systems at front and rear positions to maintain continuous aerial threat monitoring during logistics movements. Police tactical units mount them on command vehicles responding to active shooter situations where news drones interfere with sniper positioning. Airport security teams install the system on rapid response trucks that patrol perimeter fences and investigate unauthorized aircraft approaching restricted zones.
Tactical Supply Pakistan provides mobile counter-drone platforms that adapt to changing threat environments. The company offers vehicle integration services for different chassis types and mission-specific configuration planning.
Can the system maintain full operational capability while the vehicle is in motion?
Yes, the platform performs continuous 360-degree detection and selective jamming at highway speeds, with stabilized antennas maintaining target lock during acceleration, braking, and cornering maneuvers common in escort and patrol operations.
