SWISS LIDAR AI
Centimeter-precision 3D LIDAR traffic sensor with multimodal detection, near-miss alerts, and occupancy/vehicle classification.
Key Features:
✔️ 865 nm Class 1 eye-safe LIDAR for safe environmental mapping
✔️ Detects vehicles, pedestrians, cyclists; 90 m pedestrian/cyclist range
✔️ 6–10 object classes with optional SWISS10 expansion

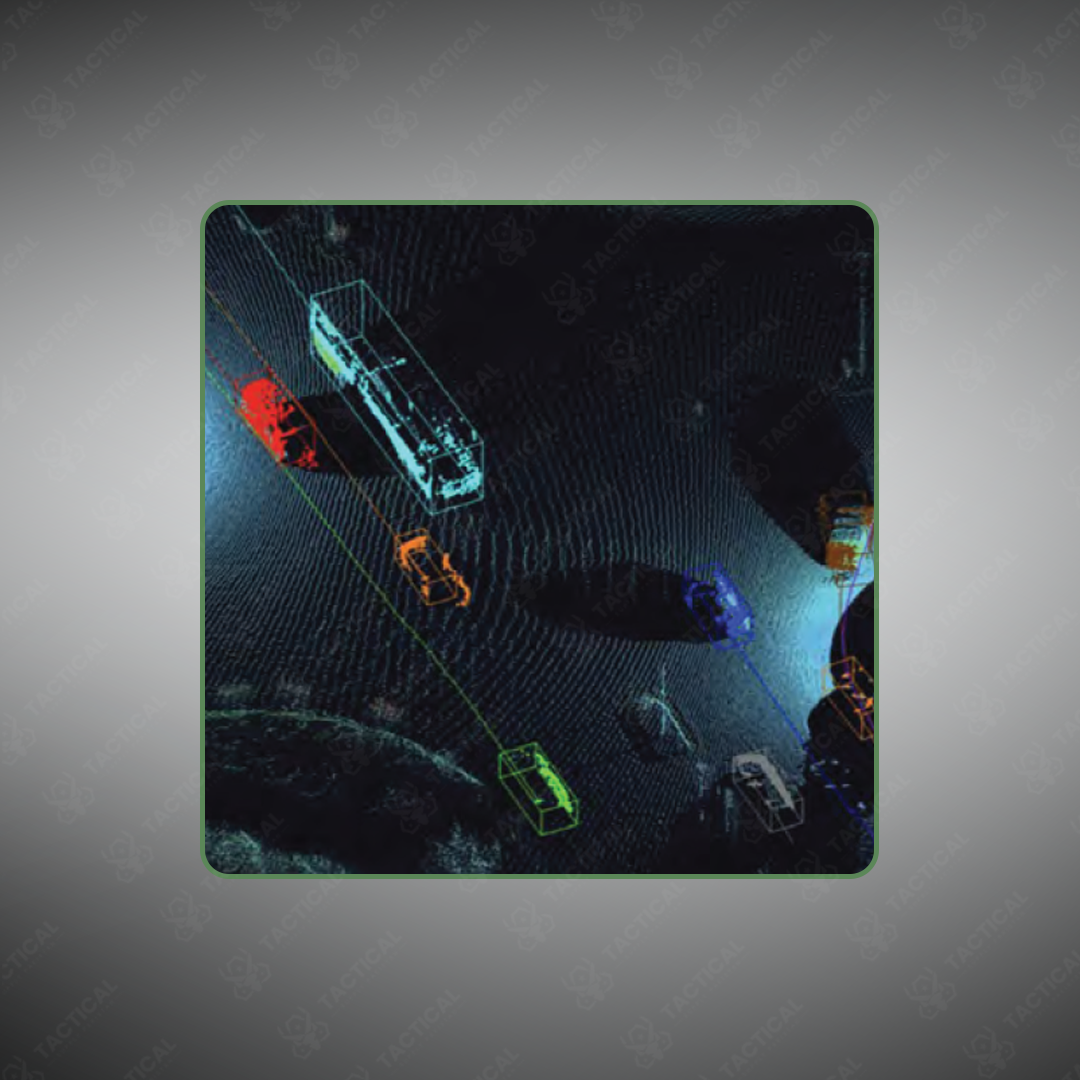

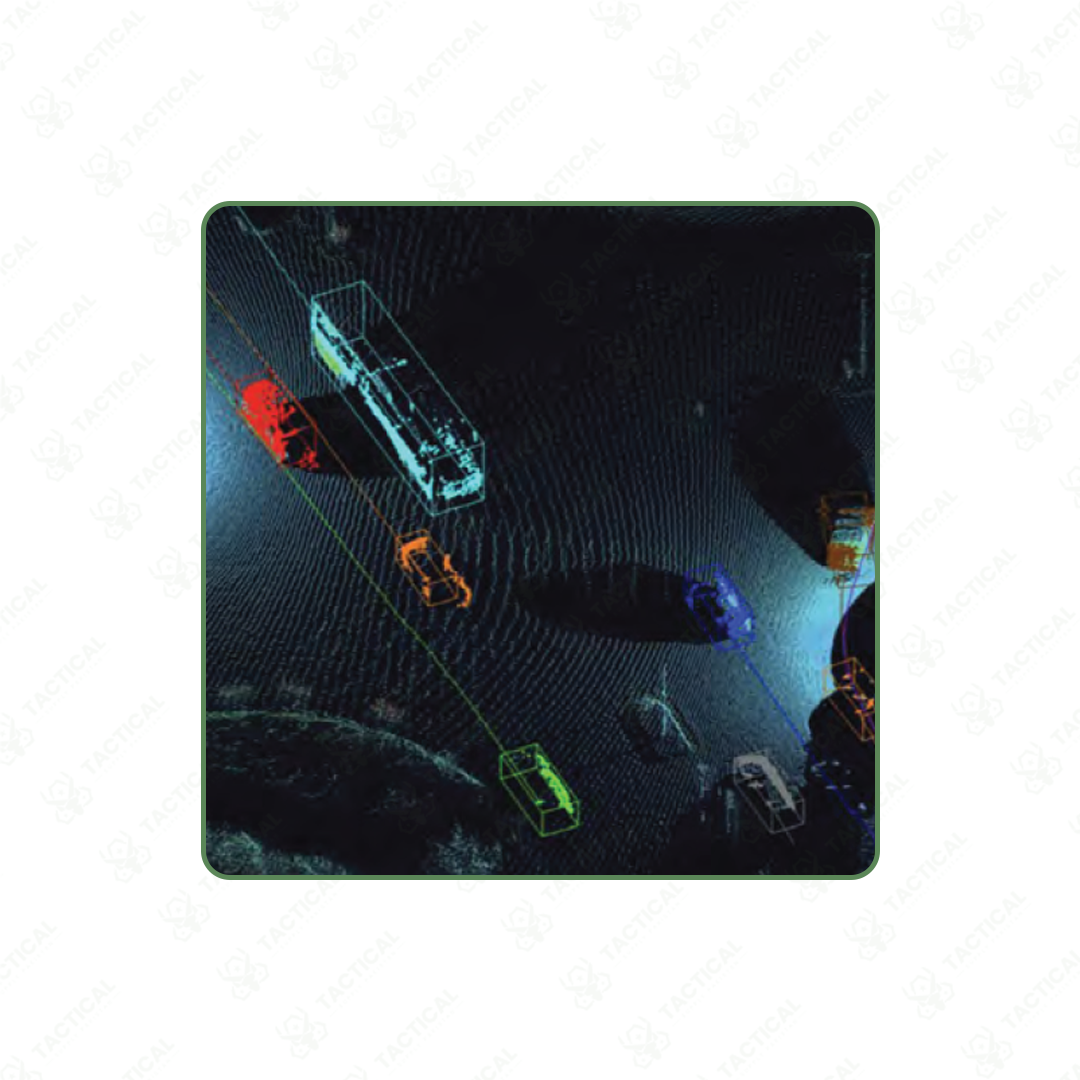

✔️ Real-time 3D data: position, speed, size, and vehicle height
✔️ Near-miss detection triggers automatic incident alerts
✔️ Wrong-way and truck classification functionality
✔️ IP68-rated, -40°C to +60°C operation with low power (14–20 W)
✔️ Portable deployment via 4.8 m pneumatic mast with 72 h battery autonomy
✔️ API access for dashboard, signal optimization, and third-party integration
SWISS LIDAR AI
The SWISS LIDAR AI integrates a 3D LIDAR sensor with advanced spatial intelligence software for centimeter-level environmental mapping. The laser operates at 865 nanometers with Class 1 eye-safe certification. Power consumption ranges 14 to 20 watts. Operating voltage accepts 9V to 34V with 12V or 24V nominal supply. The sensor weighs 400 grams and functions from minus 40 to plus 60 degrees Celsius. IP68 ingress protection enables extreme weather operation. Pedestrian and cyclist detection extends to 90 meters. Standard configuration detects 6 object classes with optional SWISS10 expansion. Mobile deployment includes a pneumatic antenna extending 4.8 meters with 72-hour battery autonomy.
This sensor delivers multimodal real-time traffic counting with centimeter precision unaffected by lighting or weather. Three-dimensional data captures vehicle dimensions, distances, and velocities simultaneously. Near-miss incident identification triggers automatic alerts. Pedestrian safety observations detect dangerous crossing behaviors. Parking occupancy monitoring tracks space utilization. Wrong-way driver detection identifies infractions. Traffic congestion analysis optimizes signal timing. Vehicle height classification enables truck categorization. All data integrates into customizable dashboards with key performance indicators and API access for third-party integration.
Transportation agencies deploy the SWISS LIDAR AI for intersection safety and traffic flow optimization. Parking authorities monitor occupancy and unauthorized placement. Highway operators detect truck parking at service areas. Municipal engineers analyze congestion patterns. Law enforcement identifies wrong-way drivers. Urban planners track pedestrian crossing safety. Toll operators implement vehicle classification. Retail parking systems monitor customer compliance.
Tactical Supply Pakistan manufactures advanced 3D spatial intelligence systems combining LIDAR technology with AI software for comprehensive traffic monitoring and smart mobility applications.
Does the SWISS LIDAR AI maintain detection accuracy during heavy rain or fog?
Yes, LIDAR operates independently of lighting and weather using laser detection. Centimeter accuracy persists through rain, fog, snow, and darkness without performance degradation.
