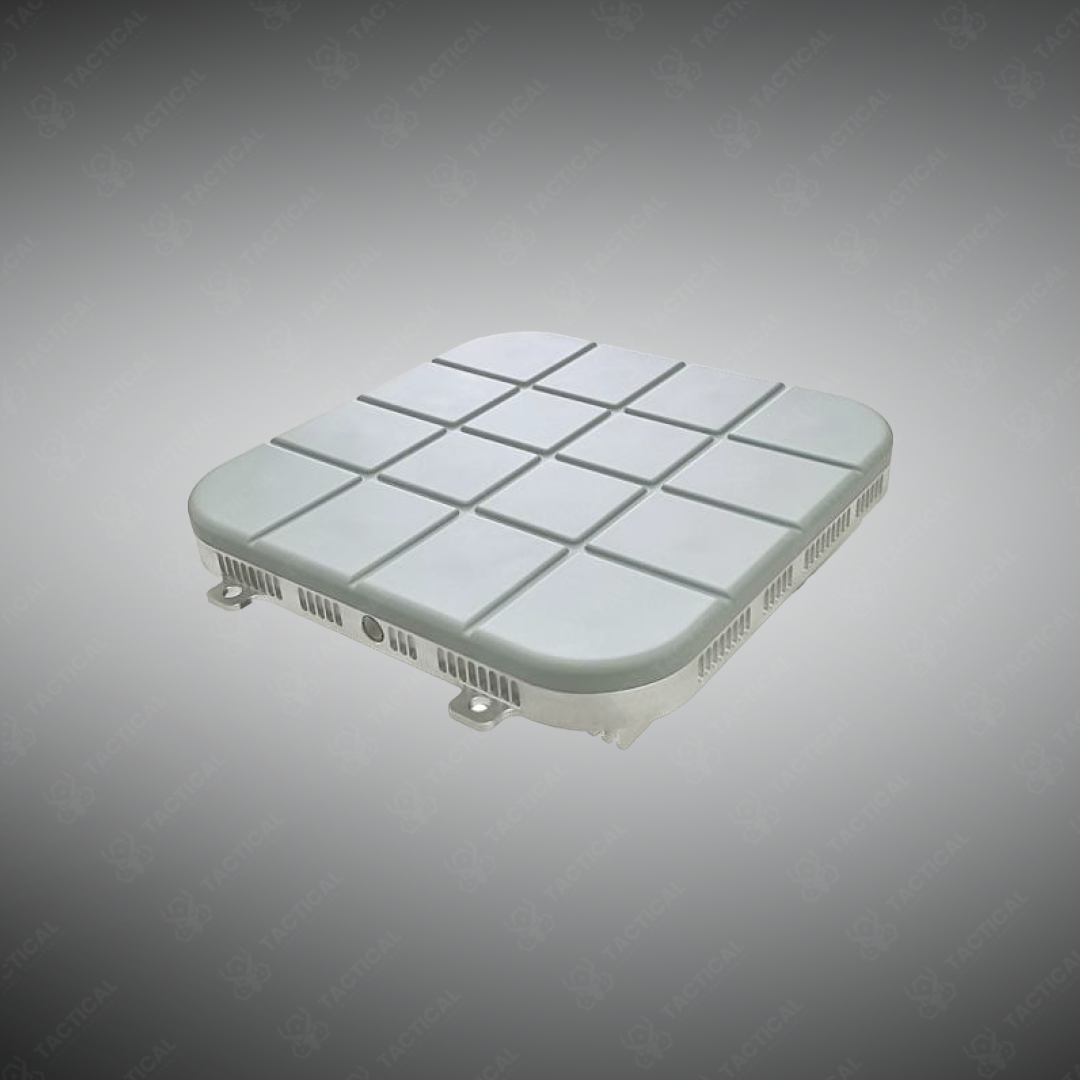

Sixteen Elements Dual Bands Anti-Interference Terminal
Dual-frequency GNSS terminal with a sixteen-element military-grade beamforming array for maximum resilience against advanced multi-source jamming.
Key Features:
✔️ Dual-band operation on B1 / L1 / E1 + L2 with 20 MHz bandwidth
✔️ Sixteen-element array enabling military-grade beamforming and spatial nulling
✔️ Single-interference rejection up to 90 dB-carrier performance
✔️ Multiple-interference rejection rated 80 dB-carrier capability
✔️ Tracks BeiDou B1/B2, GPS L1/L2, Galileo E1/E5, GLONASS L1/L2
✔️ Spatial coverage 0–360° azimuth and -90° to +90° elevation
✔️ Outputs NMEA-0183 navigation via J30J-9Z/KP interface plus SMA-JYD backup
✔️ Large form factor 230 × 230 × 24 mm, weight <1,000 g
✔️ Power input 24 V DC, 22 W consumption at room temperature
✔️ Capable of spatially filtering up to eight jamming sources simultaneously
Sixteen Elements Dual Bands Anti-Interference Terminal
The Sixteen Elements Dual Bands Anti-Interference Terminal operates on dual-frequency B1&L1&E1+L2 with 20-megahertz bandwidth. Dimensions measure 230 by 230 by 24 millimeters weighing under 1,000 grams. Power requirement is 24-volt DC with 22-watt consumption at room temperature. Single-interference rejection reaches 90 decibels-carrier while multiple-interference achieves 80 decibels-carrier. Spatial coverage spans 0 to 360 degrees azimuth and -90 to +90 degrees elevation. Operating temperature ranges -45 to +70 degrees Celsius. The sixteen-element antenna array provides military-grade beamforming against advanced jamming systems.
The terminal receives dual-band signals from BeiDou B1/B2, GPS L1/L2, Galileo E1/E5, and GLONASS L1/L2 constellations. Multi-constellation processing simultaneously tracks all available satellites across two frequency bands. NMEA0183 navigation data outputs through J30J-9Z/KP serial port with SMA-JYD backup connectivity. Real-time adaptive filtering suppresses narrowband and wideband interference. Dual-band architecture provides redundant positioning if coordinated jamming targets single frequencies. Advanced beamforming nulls multiple jamming sources from specific directions simultaneously. Sixteen-element configuration enables spatial filtering of up to eight concurrent jamming sources.
The Sixteen Elements Dual Bands Anti-Interference Terminal deploys across military tactical systems, large-scale surveying operations, and high-security strategic applications. Field units employ this system for robust positioning during sophisticated multi-source jamming attacks. The expanded antenna array accommodates military-grade electronic warfare scenarios. Dual-frequency redundancy ensures continuous navigation during coordinated interference campaigns. Performance demonstrates reliable operations where smaller array systems experience signal loss.
Tactical Supply Pakistan supplies this advanced beamforming solution with sixteen-element antenna design and dual-band processing. Real-time multi-source jamming nulling protects against coordinated attack patterns. The robust industrial form factor integrates into fixed tactical installations and mobile command vehicles. J30J-15ZKP interfaces enable secure system deployment. Wide operating temperature range supports global military field operations.
How many jamming sources can the terminal reject simultaneously?
The sixteen-element array enables spatial filtering of up to eight concurrent jamming sources across dual frequency bands while maintaining acquisition and tracking of authentic satellite signals.
