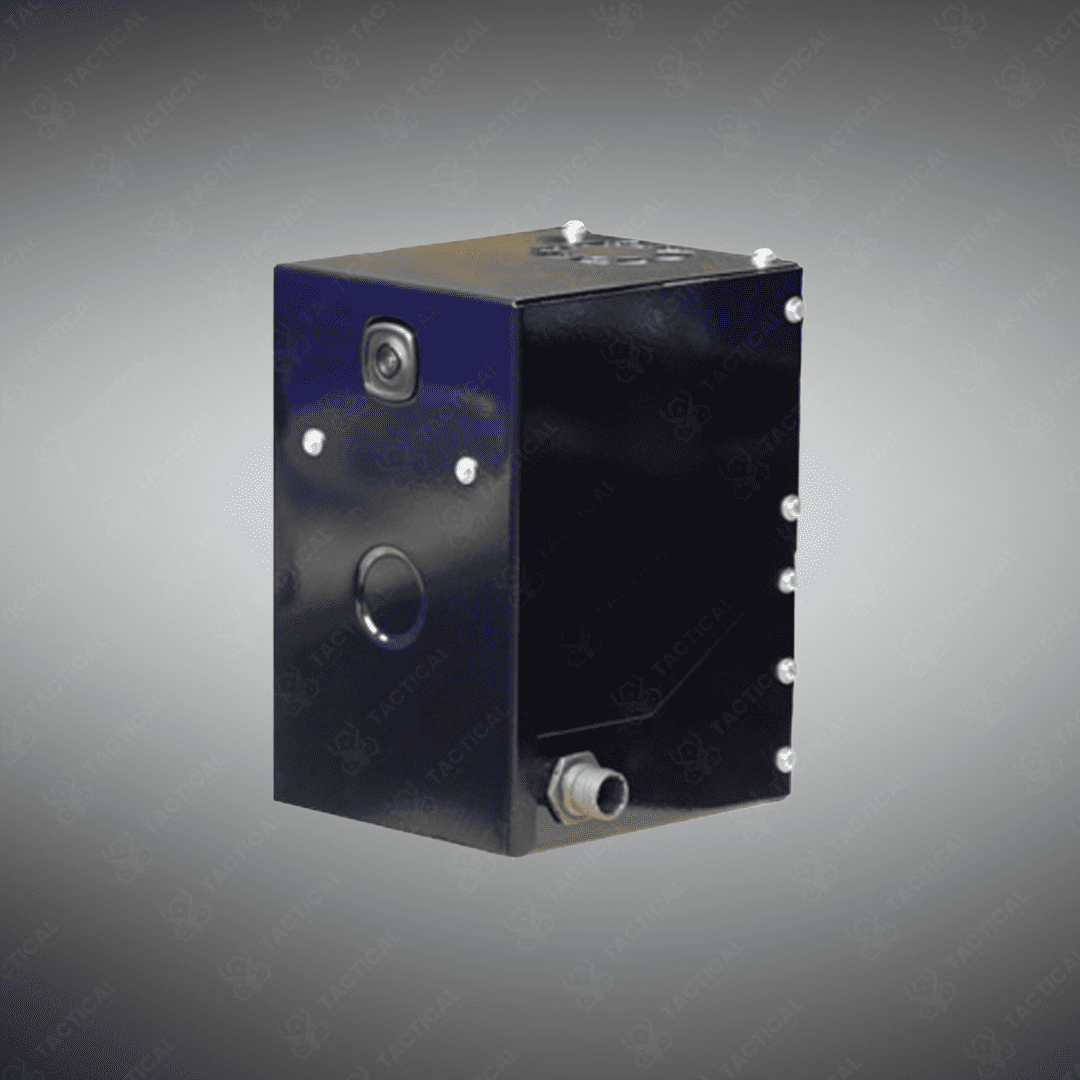

Ruggedized Integrable Detector Module
Hardened gamma-ray detector module with optical overlay and isotope imaging. Offers ≤0.8% FWHM energy resolution and real-time spectral imaging up to 3 MeV. Ideal for drone, robotic, or fixed installations requiring fast and rugged isotope identification.
Key Features:
✔️ Pixelated CZT detector arrays
✔️ Energy resolution: ≤0.8% FWHM at 662 keV
✔️ Interaction-level resolution: ≤0.65% FWHM
✔️ Gamma range: 50 keV to 3 MeV
✔️ Source detection: <20 seconds
✔️ Imaging: Optical overlay with gamma visualization
✔️ Real-time isotope analysis & spectroscopic imaging
✔️ Supports point & distributed source detection
✔️ 90-second boot time | Low power operation
✔️ IP-rated rugged housing | Lightweight form
✔️ Compatible with drones, UGVs, fixed stations
✔️ Communication: USB, Ethernet, Wireless
✔️ Model flexibility: 8 variants including T400S, T410SP+
✔️ Backed by Tactical Supply Pakistan

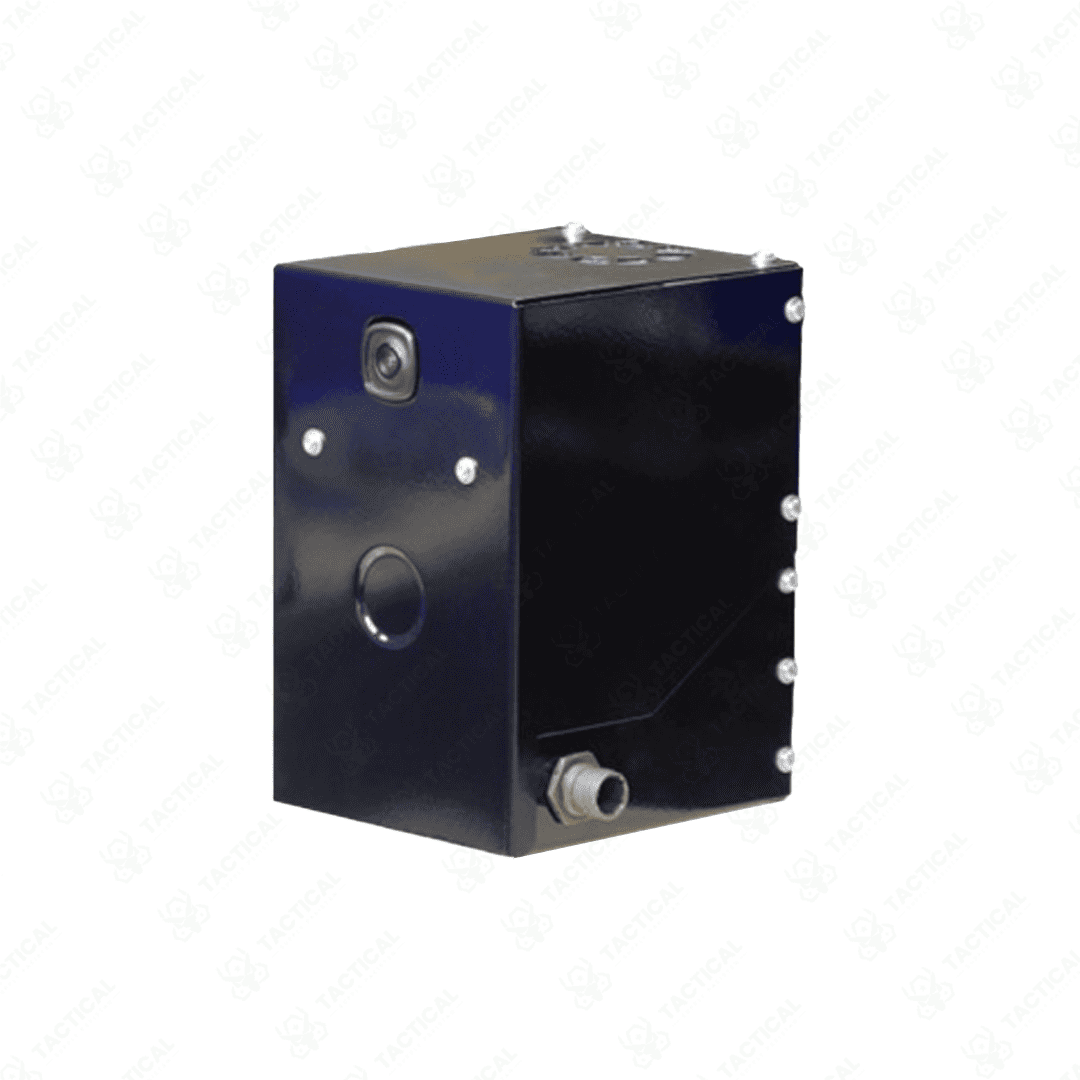

Ruggedized Integrable Detector Module
The Ruggedized Integrable Detector Module delivers advanced gamma-ray spectroscopy and isotope-specific imaging in a compact, hardened format. Designed for integration into mobile and stationary platforms, it offers a fast 90-second startup and provides energy resolution options as fine as ≤0.8% FWHM at 662 keV, with interaction-level resolution reaching ≤0.65% FWHM. Built with pixelated CZT detector arrays, the module supports full-spectrum coverage up to 3 MeV, enabling high-resolution analysis of a wide range of radioactive isotopes. Available in eight models, each variant addresses specific needs for imaging, sensitivity, or mechanical integration.
The enclosure is weather-resistant and engineered for durability in rugged conditions, making it ideal for outdoor or high-vibration environments. It supports real-time gamma spectroscopy, optical overlay imaging, and rapid source identification within 20 seconds. The module can image both point and distributed radiation sources and synchronizes optical and gamma visuals to support decision-making in dynamic field operations. Its lightweight design allows seamless deployment on drones, unmanned ground vehicles, fixed monitoring systems, and complex robotic assemblies.
The Ruggedized Integrable Detector Module is widely deployed in applications where performance cannot be compromised, defense reconnaissance, emergency radiological response, nuclear facility monitoring, and environmental radiation surveys. The unit’s plug-and-operate design simplifies integration while maintaining high data fidelity and low power consumption. Each model offers flexible communication options and compatibility with broader sensor ecosystems.
Supported by Tactical Supply Pakistan, this module combines robust field utility with laboratory-grade performance, achieving results previously reserved for cryogenically cooled systems, without the added burden of complex logistics or maintenance.
Can I switch between models like T400S and T410SP+ after initial integration?
While each variant is optimized for specific features, integration flexibility allows for model replacement or upgrade with minimal configuration changes depending on your platform.
| Model | T410 | T410+ | T400S | T400S+ | T410P | T410P+ | T410SP | T410SP+ |
|---|---|---|---|---|---|---|---|---|
| Resolution (% FWHM @ 662keV) | <1.1 | <0.8 | <1.1 | <0.8 | <1.1 | <0.8 | <1.1 | <0.8 |
| Spectrometer Range (keV) | 50 to 3000 | 50 to 3000 | 50 to 3000 | 50 to 3000 | 50 to 3000 | 50 to 3000 | 50 to 3000 | 50 to 3000 |
| Imaging Range (keV) | 50 to 3000 | 50 to 3000 | N/A | N/A | 50 to 3000 | 50 to 3000 | N/A | N/A |
| Collimator (” Tungsten) | N/A | N/A | N/A | N/A | 3/16 | 3/16 | 3/16 | 3/16 |
| CZT Volume (cm³) | >19 | >19 | >19 | >19 | >19 | >19 | >19 | >19 |
| Weight (lbs.) | 8.7 | 8.7 | 8.7 | 8.7 | 10.9 | 10.9 | 10.9 | 10.9 |
| Battery Life (hrs.) | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| IP Rating | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Temperature Rating (°F) | -40 to 122 | -40 to 122 | -40 to 122 | -40 to 122 | -40 to 122 | -40 to 122 | -40 to 122 | -40 to 122 |
| Startup Time (minutes) | <1.5 | <1.5 | <1.5 | <1.5 | <1.5 | <1.5 | <1.5 | <1.5 |
| User Interface | Webpage/API | Webpage/API | Webpage/API | Webpage/API | Webpage/API | Webpage/API | Webpage/API | Webpage/API |
