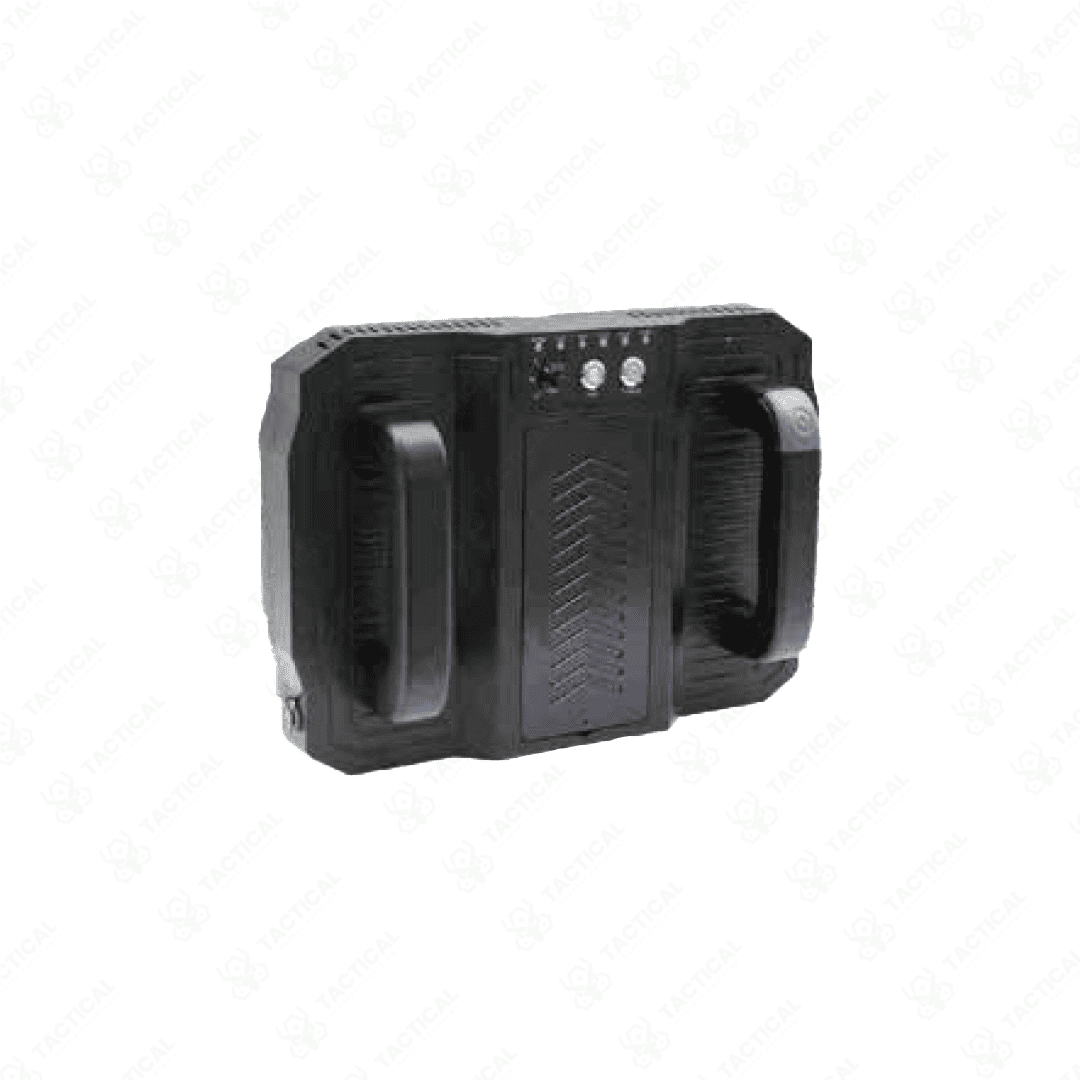

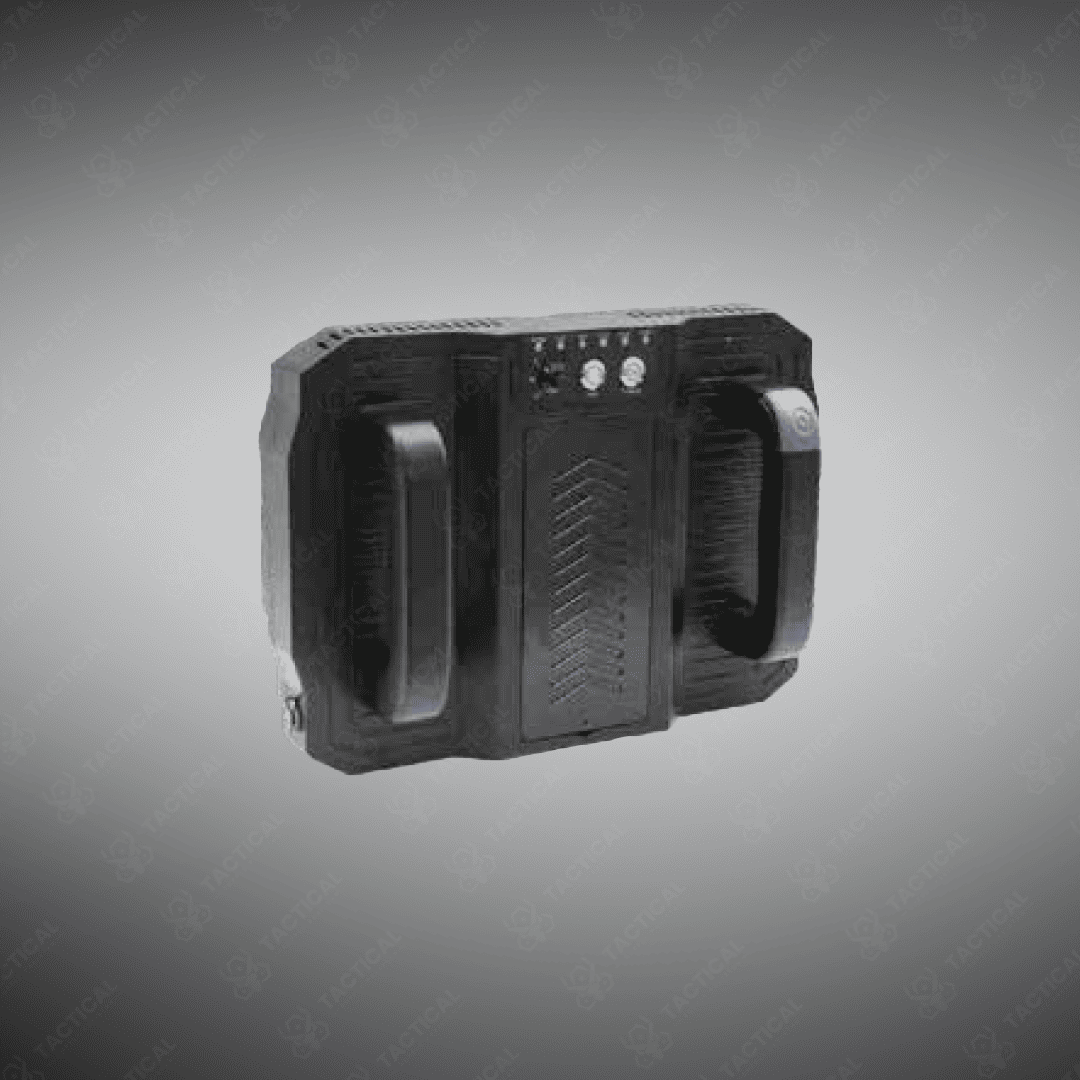

Portable Counter-FPV Shield
Lightweight, directional jamming system built to neutralize FPV and UAV drone threats in real time. Available in two high-performance models for single-operator use.
Key Features:
✔️ Directional FPV drone jamming
✔️ Covers major UAV frequency bands
✔️ 1 km effective jamming range
✔️ Lightweight, single-operator design
✔️ Lithium battery with quick swap
✔️ SDR-based multi-band jamming
✔️ Rugged IP54-rated enclosure
✔️ Operates in extreme temperatures
Portable Counter-FPV Shield
The Portable Counter-FPV Shield is a lightweight, field-ready system designed to disrupt hostile FPV drone communication. Available in two models: AT-619A and AT-619B, it features a directional jamming layout that focuses energy toward incoming threats. The unit weighs under 4.5 kg (AT-619A) and 5.5 kg (AT-619B), making it suitable for single-operator deployment. Housed in a 440 × 250 × 150 mm enclosure, it combines portability with reliable shielding performance.
Both variants utilize SDR-based jamming across multiple frequency bands. The AT-619A targets 800–900 MHz, 2.4 GHz, and 5.3–5.9 GHz, while the AT-619B expands coverage to include 1.2 GHz, 1.4 GHz, and 1.5 GHz, critical bands used by standard UAVs. With over 1 km jamming range against FPV drones and conventional UAVs (based on a jamming-to-communication ratio of 1:1 or 2:1), both models offer focused, efficient disruption. Full-power output remains below 90W for AT-619A and 130W for AT-619B.
The Portable Counter-FPV Shield is built for rapid response across security, defense, and tactical missions. Its directional jamming ensures minimal collateral interference, while the lithium battery pack allows continuous operation with support for quick battery swaps. The system activates instantly and maintains functionality under harsh outdoor conditions, including temperatures from -30°C to +45°C.
Tactical Supply Pakistan supplies this system with mission resilience in mind. The IP54-rated housing protects against dust and light rain, while onboard power management keeps standby consumption below 35W. Both models ship with integrated control systems for silent operation in the field.
Can one person operate and deploy the unit effectively?
Yes. Both variants are designed for single-operator use, combining lightweight design, simple controls, and swap-capable batteries for uninterrupted missions.
