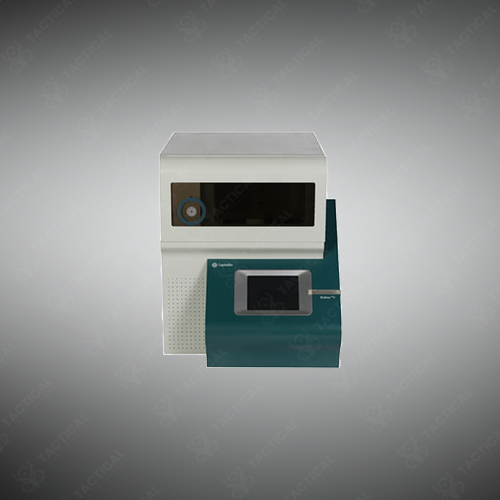

Microarray Hybridization Station
High-precision microarray hybridization station for uniform, high-throughput gene and protein analysis.
Key Features
✔️ 3-D Motion – Ensures uniform hybridization signals
✔️ Controlled Temp & Humidity – Consistent reaction conditions
✔️ High Throughput – Handles 6–12 slides at once
✔️ Edge-Effect Reduction – Improves signal consistency
✔️ Versatile Adapters – For slides and tube mixing
✔️ LCD Interface – Easy operation and monitoring
✔️ DNA & Protein Compatible – Supports diverse assays
✔️ Reliable & Reproducible – Ensures accurate results
The Microarray Hybridization Station operates through continuous 3-D motion technology that spreads hybridization mixtures uniformly across microarray surfaces. This system accommodates 6 or 12 slides simultaneously or processes 15ml/50ml tubes using interchangeable adapters. The unit measures 405mm × 516mm × 486mm weighing 36kg with power consumption of 1000 watts at 100-240V. Temperature control spans 30°C to 65°C with ±0.5°C accuracy ensuring consistent reaction conditions. Rotating speed adjusts from 5 to 30 rpm across programmable time ranges extending from 1 minute to 23 hours 59 minutes.
The LCD control panel provides intuitive parameter configuration for hybridization protocols. Three adapter configurations support slide-based microarray hybridization, washing procedures, and tube-based biochemical reagent mixing. The motion mechanism eliminates edge effects that compromise signal uniformity in static hybridization chambers. Compatible with standard 25mm × 75mm microscope slides, the system pairs with specialized hybridization cassettes maintaining controlled humidity throughout extended incubation periods.
Genomics research centers deploy the Microarray Hybridization Station for gene expression profiling requiring uniform probe exposure across array surfaces. Military biotechnology labs use this equipment for pathogen detection studies where signal consistency determines threat identification accuracy. Naval medical facilities install the system for processing immunoreaction arrays in vaccine response monitoring programs. Airforce biodefense units operate the station for analyzing toxin-binding arrays during countermeasure development. Diagnostic laboratories utilize the platform for clinical microarray assays where reproducible hybridization directly affects patient result reliability.
Tactical Supply Pakistan provides hybridization control systems that eliminate manual incubation variability in molecular diagnostic workflows. The company delivers equipment supporting standardized array processing across research and clinical laboratory environments.
Can the station process both DNA and protein microarrays?
Yes, the system handles DNA hybridization and protein immunoreaction assays on standard slides using appropriate adapter configurations and temperature settings for different biomolecule interactions.
