Handheld Integrated UAV Detection and Countermeasure Device
A compact handheld system integrating UAV detection, direction finding, positioning, and jamming for rapid response against low‑altitude drone threats.
Key Features:
✔️ All-in-one handheld solution combining detection, positioning, and jamming
✔️ Detects and identifies commercial UAVs and FPV drones across frequency bands
✔️ Supports DJI drone and controller positioning via OcuSync 2.0 / 3.0 protocols
✔️ Real-time direction finding with compass-based visual guidance
✔️ Integrated jamming capability to disrupt control, navigation, and data links
✔️ Sound and light alerts for immediate UAV intrusion awareness
✔️ Swappable rechargeable battery design for extended field operations
✔️ Portable and rugged form factor for tactical and security use
Handheld Integrated UAV Detection and Countermeasure Device

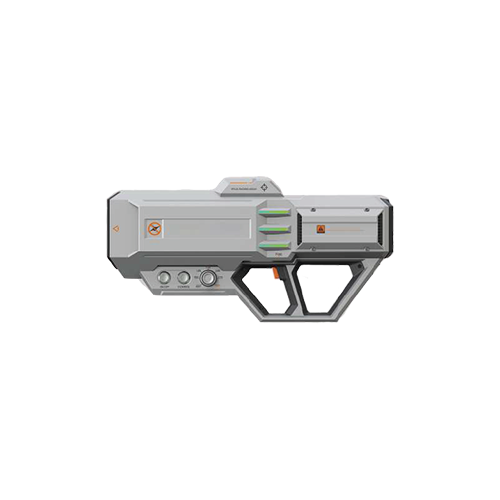

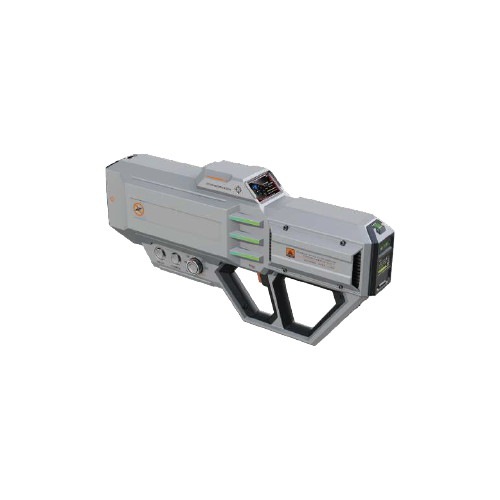

The Handheld Integrated UAV Detection and Countermeasure Device TTSKURA500 combines passive detection, direction finding, positioning, and active jamming in a single portable unit. Detection capability covers 433 MHz, 915 MHz, 1.2 GHz, 1.4 GHz, 2.4 GHz, 5.2 GHz, and 5.8 GHz frequency bands at 500-1000 meter range depending on drone type and terrain interference. The system identifies DJI, Autel, Yuneec, and FPV aircraft models through protocol fingerprinting. Direction finding achieves 10-meter positional accuracy with compass display showing threat bearing.
Countermeasure output power varies by frequency: 50-watt amplifiers for 900 MHz, 1.4 GHz, and 5.2 GHz bands; 30-watt amplifiers for 2.4 GHz and 5.8 GHz bands; 20-watt software-adjustable amplifiers for 600 MHz-6 GHz custom bands. Jamming range extends 500-1900 meters under favorable conditions. The device positions DJI remote controllers using OcuSync2 and OcuSync3 protocol analysis. Sound and light alerts notify operators of UAV intrusion detection. Swappable battery design enables continuous operation through hot-swap battery replacement without powering down the unit.
Security details deploy the Handheld Integrated UAV Detection and Countermeasure Device at outdoor venues during VIP appearances requiring immediate threat identification and neutralization without vehicle-mounted systems. Prison perimeter guards use these units to detect contraband delivery drones approaching facility boundaries and jam control signals before payload drop. Critical infrastructure protection teams patrol power substations and telecom towers with handheld detectors to identify surveillance drones mapping security layouts. Military forward observers carry these devices to counter enemy reconnaissance UAVs during dismounted patrol operations.
Tactical Supply Pakistan supplies this Countermeasure Devices to security forces requiring man-portable counter-drone capability for mobile operations. Our support includes battery management protocols and frequency coordination with existing communications equipment to prevent friendly interference.
Can the TTSKURA500 distinguish between commercial photography drones and hostile reconnaissance platforms?
Yes. Model identification reveals manufacturer and aircraft type, while flight pattern analysis differentiates recreational photography from tactical surveillance behaviors.
