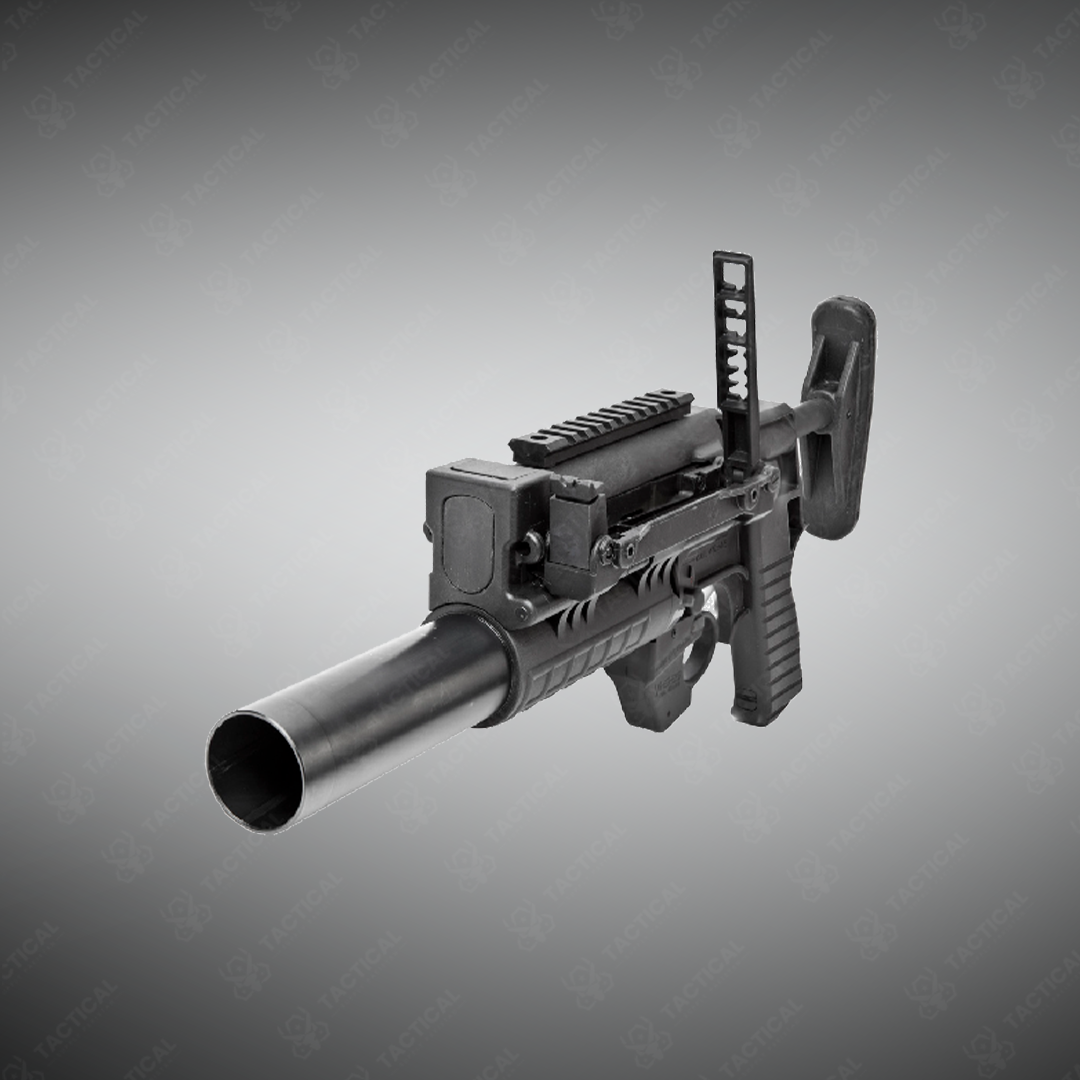

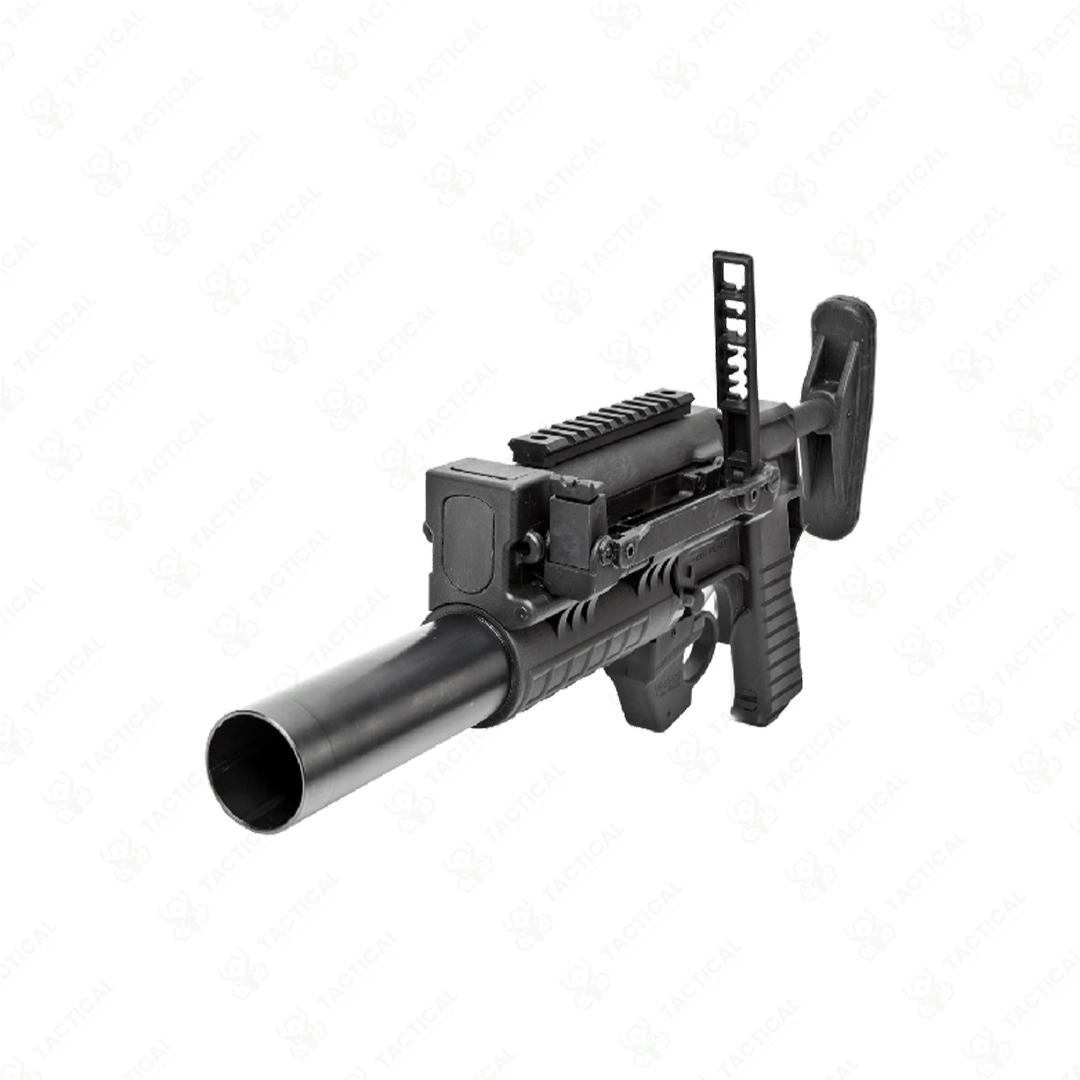

Grenade Launcher
Low‑recoil, lightweight 40×46 mm LV single‑loader, usable stand‑alone (retractable stock) or under‑barrel; for smoke, CS, rubber or HE rounds.
Key Features:
✔️ Caliber: 40×46 mm LV
✔️ Barrel: 260 mm (1/1200 mm twist)
✔️ Weight/Size: 1,970 g (with sight); 675 mm (stock extended)
✔️ Range: up to 450 m; v₀ = 75 ± 3.5 m/s
✔️ Feed: single‑loader, manual; ejection port selectable L/R
✔️ Stock: 3‑position telescopic; quick‑mount under‑barrel option
✔️ Fire: safe → semi; trigger 55–75 N
✔️ Rails: STANAG‑4694 Picatinny (12 o’clock + 6 o’clock options)
✔️ NSN: 1010‑53‑000‑1308
Grenade Launcher
The Grenade Launcher features low recoil operation with lightweight and compact construction. Caliber designation 40x46mm LV accommodates diverse grenade types including smoke, CS, rubber, and HE variants. Barrel length measures 260mm with overall length reaching 675mm when extended buttstock deploys. Total weight with integrated sight reaches 1970 grams. Height extends 215mm and width measures 84mm with sight assembly mounted. Single-loader operating principle requires manual feed mechanism for each round discharge.
Muzzle velocity achieves 75 ± 3.5 m/s with maximum effective range extending to 450 meters. Barrel twist profile maintains 1/1200mm ratio for ballistic stability across all grenade types. Three-position telescopic buttstock accommodates different operator physiology and firing postures. Trigger pull requires 55-75 Newtons of force for controlled semi-automatic discharge. Cartridge ejection port direction selects left or right configuration for operator preference. STANAG 4694 Picatinny rails mount at 12 o’clock and 6 o’clock positions for accessory integration. NSN designation 1010-53-000-1308 identifies this system for military supply channels.
The Grenade Launcher deploys in tactical operations requiring stand-alone or under-barrel mounting configurations. Infantry units employ the launcher for direct fire support during assault operations. Special operations teams utilize the quick-pin mount system for rapid rifle integration and removal. Urban combat scenarios benefit from the low-recoil design reducing collateral area effects. Training facilities incorporate the launcher for marksmanship development and tactical doctrine exercises.
Tactical Supply Pakistan supplies this grenade launcher to military and security organizations requiring versatile indirect fire capability. The modular design supports multiple mounting configurations across operational requirements. Professional units depend on this equipment for precision engagement and area support missions.
What is the minimum safe distance operators must maintain from grenade detonation points?
Minimum safe distance varies by grenade type, ranging from 5 meters for practice rounds to 25 meters for HE grenades. Always follow specific manufacturer safety protocols for each grenade variant deployed.
