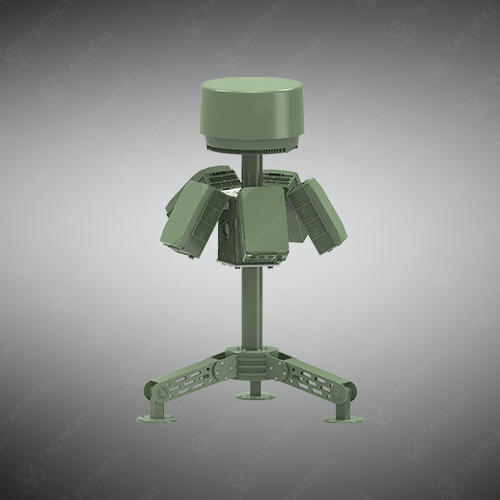

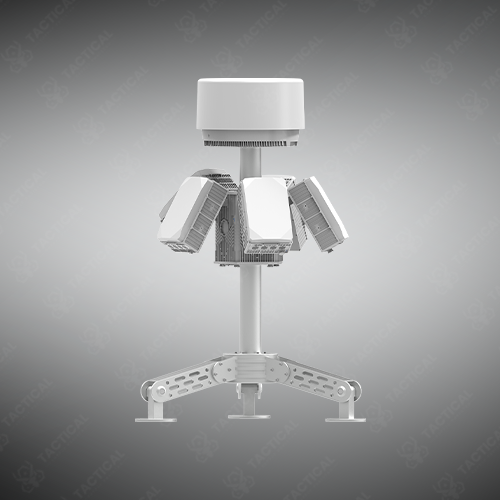

Fixed Multi-Mission Drone Defender
Fixed Multi-Mission Drone Defender is an integrated counter-UAS platform combining detection, identification, jamming, and navigation deception for permanent site protection.
Key Features:
✔️ Multi-layer drone detection using spectrum analysis, Drone ID, and Remote ID
✔️ Wide detection frequency coverage from 20 MHz to 6 GHz
✔️ Long-range UAV detection up to 5–10 km, depending on environment and drone type
✔️ Directional RF jamming across customizable bands from 433 MHz to 5.8 GHz
✔️ GNSS control with support for GPS, GLONASS, BeiDou, Galileo, and QZSS
✔️ Adjustable navigation decoy radius 1–5 km and jamming range 1–3 km
✔️ High-power fixed system with 3000 W output for continuous operation
✔️ Rugged IP66-rated enclosure for all-weather, outdoor deployment
Fixed Multi-Mission Drone Defender
The Fixed Multi-Mission Drone Defender operates across three detection algorithms: spectrum analysis, Drone ID recognition, and Remote ID monitoring. This system scans frequencies from 20MHz to 6000MHz with a detection radius spanning 5 to 10 kilometers depending on environmental conditions and target models. The unit features five directional jamming panels that deliver omnidirectional coverage across nine frequency bands from 433MHz to 5.8GHz. Navigation spoofing capabilities address GPS L1/L2/L5, GLONASS L1/L2, BeiDou B1/B2, Galileo E1, and QZSS L1 signals with adjustable parameters.
The system consumes 3000W at maximum load and maintains IP66 weatherproofing against dust ingress and powerful water jets. Jamming radius extends to 5 kilometers while the navigation deception zone adjusts between 1 and 5 kilometers. Navigation interference operates within a 1 to 3 kilometer range. The platform includes automatic library expansion that collects unknown drone signatures on-site and adds them to the feature database through manual or automated processes.
Border surveillance operations deploy the Fixed Multi-Mission Drone Defender at checkpoints where smuggling drones attempt crossings. Power generation stations install these units around transformer yards and control rooms to prevent industrial espionage. Government facilities position them on rooftops to enforce restricted airspace over sensitive ministries. Military installations use the system to create layered defense rings around ammunition depots and command centers where aerial reconnaissance poses operational risks.
Tactical Supply Pakistan supplies integrated counter-drone solutions that combine detection accuracy with multi-layered countermeasures. The company supports installation planning and provides technical assistance for complex site requirements.
How does the automatic library feature improve threat recognition over time?
The system captures spectral signatures from unidentified drones during live encounters, analyzes their communication patterns, and stores these profiles in its database, allowing immediate recognition if the same drone model appears again without requiring manual updates.
