Directional Drone Jammer
Directional Drone Jammer is a counter‑UAV solution designed to disrupt unauthorized drones and protect restricted airspace.
Key Features:
✔️ Disrupts control, video, and navigation links to stop hostile drones
✔️ Forces drone return, landing, or hovering within controlled zones
✔️ Wide jamming frequency coverage from 400 MHz to 5.8 GHz (customizable)
✔️ Directional antenna design for focused interference and reduced spillover
✔️ Effective jamming range of up to 5 km, depending on environment and UAV type
✔️ Rapid response time of approximately 3 seconds for immediate threat control
✔️ Rugged IP66-rated enclosure for outdoor and harsh-weather deployment
✔️ Stable operation in extreme temperatures from -40°C to +60°C
Directional Drone Jammer

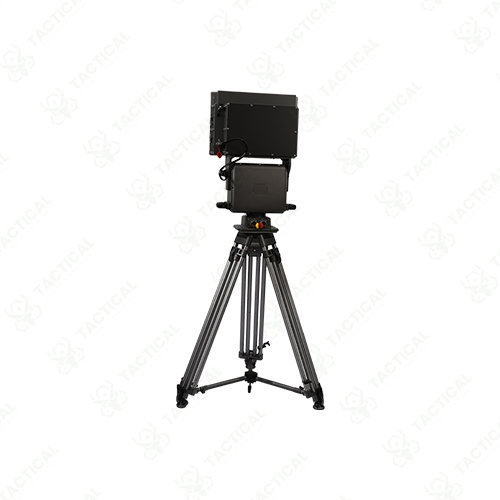

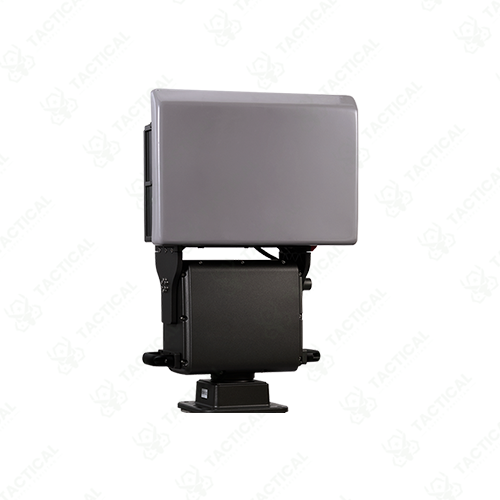

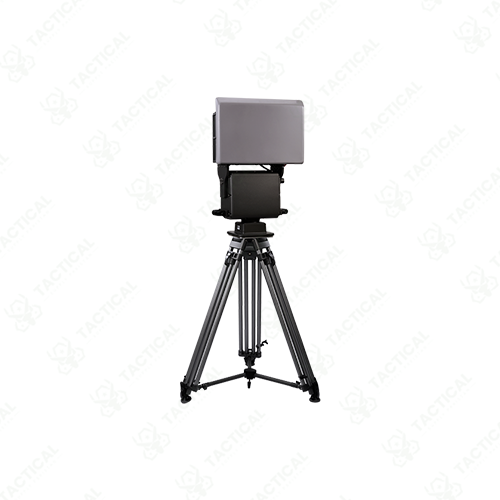

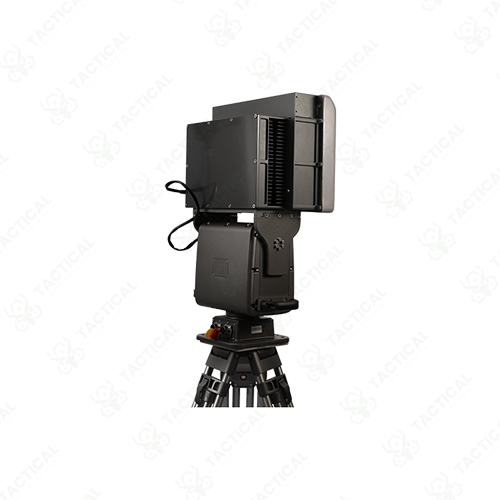

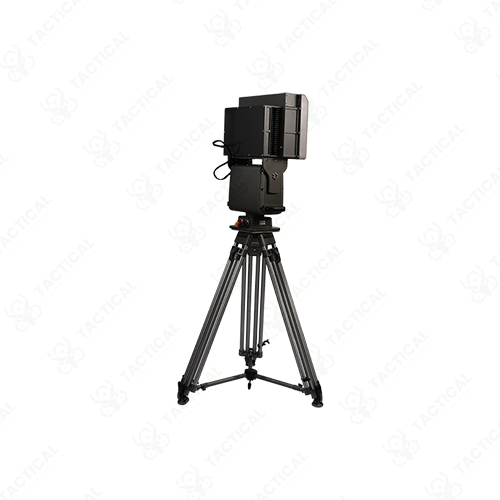

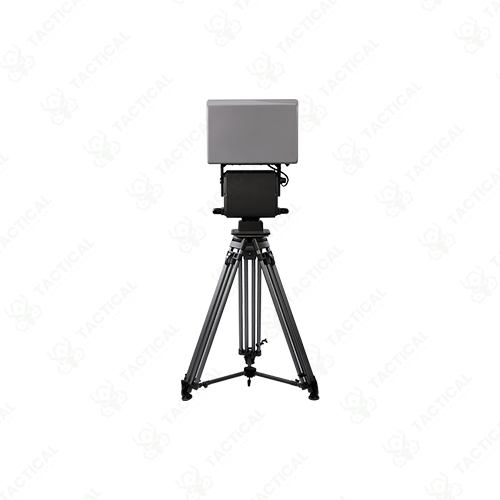

The Directional Drone Jammer broadcasts electromagnetic interference across nine customizable frequency bands: 400MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.2GHz, and 5.8GHz. This 41-kilogram stationary system measures 470mm x 250mm x 700mm and draws a maximum of 600 watts during operation. The directional antenna array provides 30-50 degree horizontal coverage and 50-80 degree vertical spread. Jamming radius extends up to 5 kilometers depending on terrain conditions and drone model. Response time reaches 3 seconds from activation to full signal disruption.
The unit incorporates IP66-rated weatherproof housing that operates between -40°C and +60°C ambient temperatures. High-speed gimbal drives enable 360-degree target tracking when paired with detection systems. The jammer severs three critical drone communication channels: control link, image transmission feed, and GPS navigation signals. Severed drones typically execute return-to-home protocols, initiate forced landings, or enter stationary hover modes.
Government facilities, power plants, and military bases deploy the Directional Drone Jammer to establish protective electromagnetic barriers around sensitive infrastructure. Border security forces activate these systems during surveillance operations. Event security teams position jammers at outdoor venues where VIP attendees require airspace protection. Critical facility operators integrate these units with radar tracking and photoelectric cameras for automated threat response.
Tactical Supply Pakistan installs this counter-drone technology at Pakistani installations requiring active airspace denial capabilities against unauthorized unmanned aircraft. Our deployment services include frequency band customization and operator training programs for coordinated counter-drone operations.
Does the jammer affect authorized aircraft communications or civilian GPS signals?
The directional antenna design focuses jamming energy into narrow sectors, and frequency band selection targets only drone-specific communication channels, minimizing impact on aviation bands, cellular networks, and civilian GPS receivers operating outside the jamming cone.
