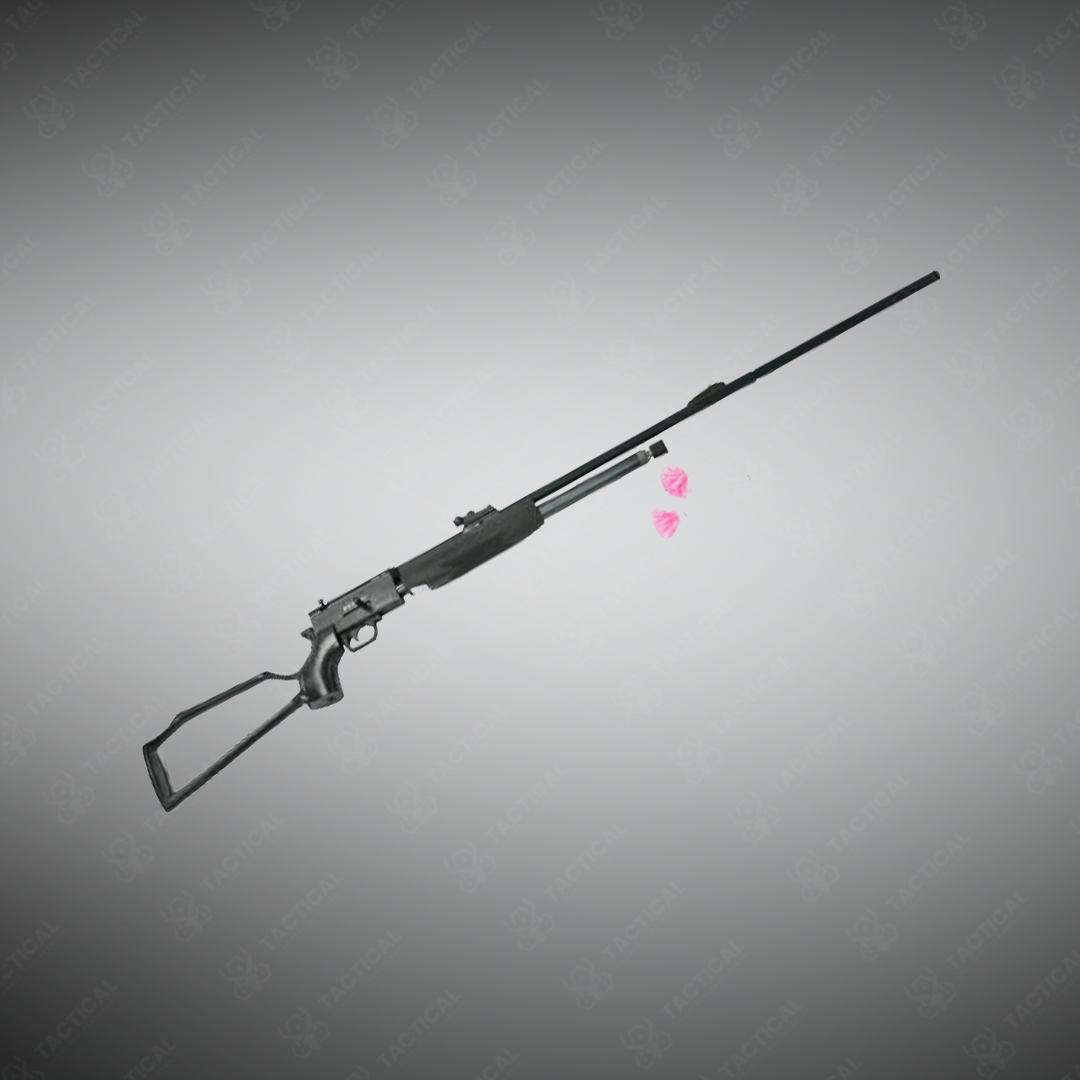

Anesthetic Gun- Animal Gun
Anesthetic Gun — Animal Gun — bolt‑action, single‑shot anesthetic launcher for humane wildlife capture and veterinary sedation.
Key Features:
✔️ Action & loading: Bolt‑action, single‑round loading for controlled delivery
✔️ Propulsion: CO₂ or compressed‑air variants (model dependent)
✔️ Calibres & models: 12 mm (STN‑312/STN‑312A), 13 mm (STN‑313)
✔️ STN‑312 ≈617 mm overall; STN‑313 ≈970 mm overall
✔️ Weight: STN‑312 ≈1.25 kg (CO₂) / ≈2.15 kg (air); STN‑313 ≈2.56 kg
✔️ Range: Practical max ≈50 m (12 mm models); ≈70 m (13 mm model)
✔️ Single low‑velocity dart for minimal trauma; veterinary/approved projectiles only
✔️ Use cases: Wildlife capture, veterinary sedation, humane immobilization
✔️ Store secure, dry and upright; service gas fittings and seals per guidance
Anesthetic Gun- Animal Gun
The Anesthetic gun- Animal Gun operates using CO2 gas as the primary propellant system. Model SMART-12 features a 12mm caliber with bolt action mechanism. Total weight reaches 1.25 kilograms for portable field deployment. Barrel length measures 443mm with extended barrel reaching 800mm total. Full collapsed configuration extends to 617mm in length. Single-round loading capacity requires sequential reloading between shots.
Alternative variants expand operational flexibility with compressed air propulsion options. Model STN-312 measures 960mm including extended barrel and weighs 2.15kg with 12mm caliber rating. Model STN-313 operates at 13mm caliber with 970mm overall length and 2.56kg weight. Bolt action opening system remains consistent across all variants for operator familiarity. Maximum ranges span 50 meters for SMART-12 and STN-312 models, extending to 70 meters with the STN-313 variant. Anesthetic dart projectiles deliver pharmaceutical payloads for animal sedation and restraint applications.
Wildlife management teams deploy the Anesthetic gun- Animal Gun for remote sedation of large terrestrial animals. Veterinary capture operations utilize the system during translocation and medical intervention procedures. Zoo personnel employ the launcher for safe animal handling and health examinations. Research institutions use it for non-invasive biological specimen collection. Conservation agencies deploy the system for wildlife population monitoring and humane population control efforts.
Tactical Supply Pakistan stocks multiple variants to accommodate diverse wildlife management requirements and operational scenarios. The reliable bolt action design ensures operator control during critical deployment moments. Professional animal management teams depend on this equipment for safe, effective animal restraint operations.
What distance should operators maintain when deploying anesthetic darts to ensure accurate projectile delivery?
Optimal deployment occurs between 15-40 meters depending on animal species, wind conditions, and terrain factors. Operators should practice range estimation and account for bullet drop at maximum effective ranges.
