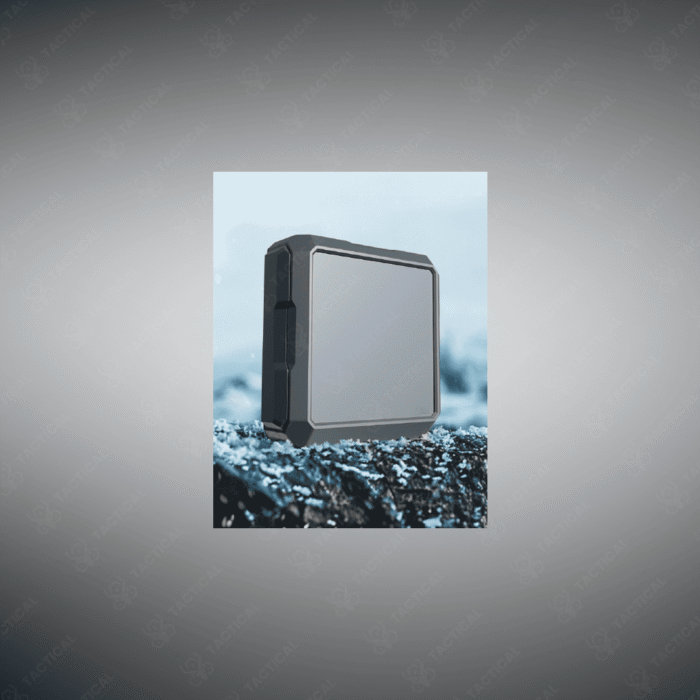

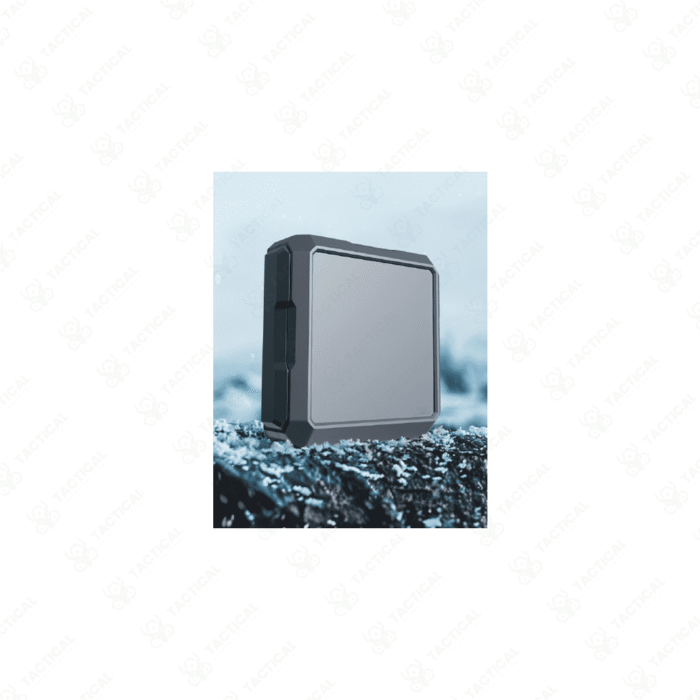

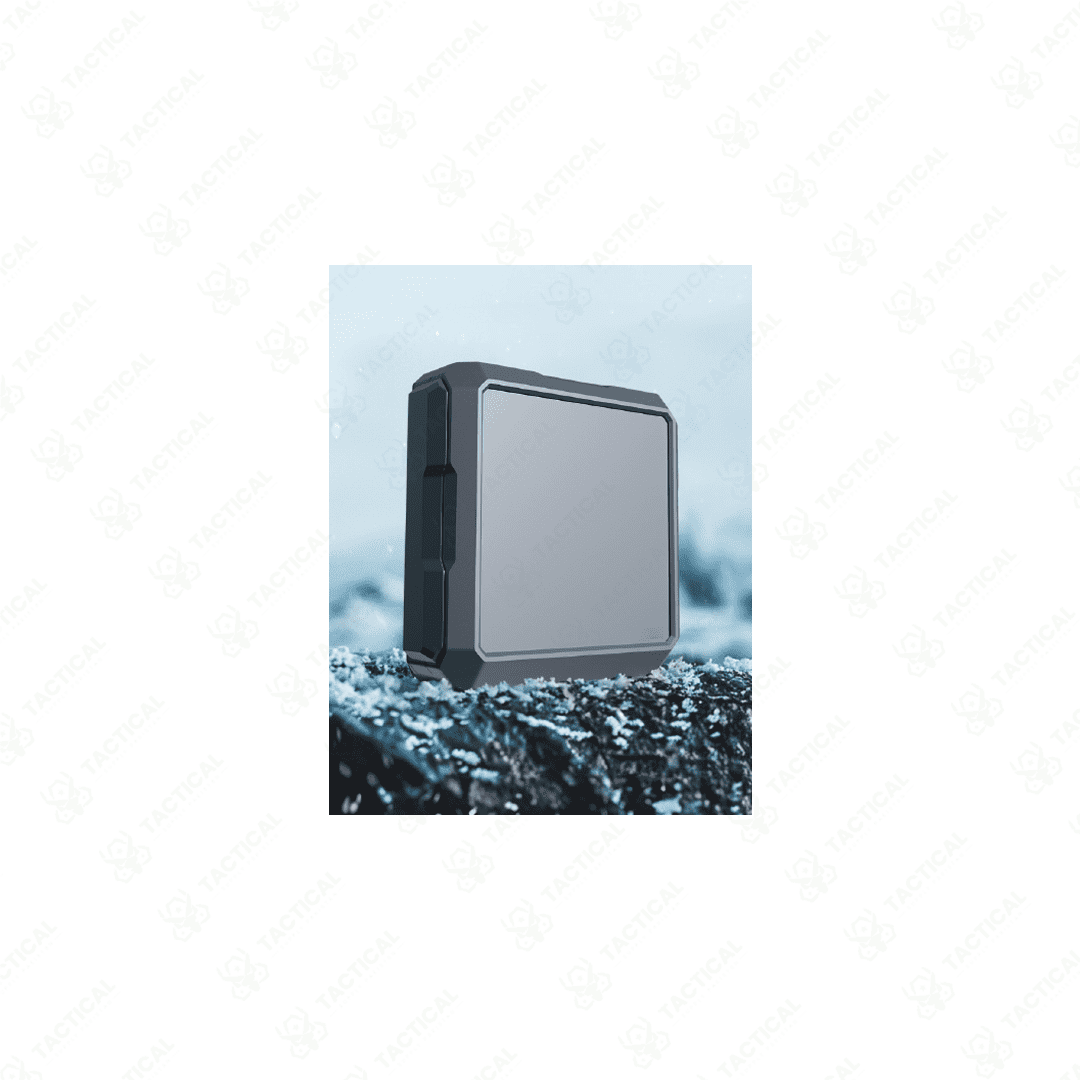

Active Electronically Scanned Array (AESA) Radar

Active Electronically Scanned Array (AESA) Radar

Active Electronically Scanned Array (AESA) Radar is a compact, X-band pulse Doppler radar system designed for comprehensive low-altitude aerial surveillance. Operating between 9.2GHz and 9.8GHz, this two-dimensional active phased array radar delivers accurate detection and tracking of targets within a 6 km range. It uses four integrated radar arrays for hemispherical monitoring, offering full 360° coverage with no blind spots. Despite its advanced capabilities, it consumes less than 300W of power and maintains a lightweight form factor under 20 kg.

The radar provides omnidirectional scanning, real-time beam steering, and target tracking at speeds up to 100 m/s. It supports high-accuracy measurements with ≤8 m range accuracy and ≤0.5° angular resolution. The system’s all-weather capabilities allow uninterrupted operation during rain, snow, fog, or dust storms. Active cooling technology ensures reliable thermal performance, and its IP66-rated enclosure safeguards the unit in extreme conditions ranging from -40°C to +50°C.

Active Electronically Scanned Array (AESA) Radar is widely deployed in mobile and fixed defense configurations. It detects and tracks drones, UAVs, and other low-RCS aerial threats, providing accurate location data for jammers or electro-optical targeting systems. It also supports software-defined beam control, enabling mission-specific scanning patterns and seamless integration into layered defense grids.

Tactical Supply Pakistan ensures each unit is rigorously tested to meet mission-critical standards for detection accuracy, deployment ease, and environmental durability. Whether stationary or on the move, this radar system provides dependable airspace awareness for high-threat environments.

Can this radar operate at night or in poor weather?
Yes. The radar maintains full detection capabilities in low visibility, including night, rain, snow, and dust conditions.
